Title: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: dogie on September 03, 2014, 09:42:06 PM Dogie's Miner Setup Guides:
Nicely formatted version available at dogiecoin.com (http://goo.gl/h9rwNd)! https://i.imgur.com/ptViCVd.png (http://goo.gl/h9rwNd) https://i.imgur.com/AXm1t8k.png Contents: 0a) What to Expect (#post_section0a) 0b) What You Need (#post_section0b) 1) Powering (#post_section1) 2) Cooling (#post_section2) 3a) Configuration (TL-MR3020) (#post_section3a) 3b) Configuration (Windows PC) (#post_section3b) 4) Troubleshooting (#post_section4) 5) Where to buy (#post_section5) https://i.imgur.com/AXm1t8k.png 0a) What to Expect (top) (#post_contents) Technobit's HEX4M utilises four of BlackArrow's 28nm ASICs on a single, large PCB. Top side heatsinks are not provided as standard and an external controller in the form of TP-LINK TL-MR3020 or Windows PC is required.
https://farm4.staticflickr.com/3859/14898944879_7128344d44_b.jpg (https://farm4.staticflickr.com/3859/14898944879_a1ce0856f9_o.jpg) https://farm4.staticflickr.com/3863/15085250922_0e8f0c4b4f.jpg (https://farm4.staticflickr.com/3863/15085250922_903a79431e_o.jpg) https://farm4.staticflickr.com/3888/14898922700_27f7cfc9da.jpg (https://farm4.staticflickr.com/3888/14898922700_9692aff837_o.jpg) https://i.imgur.com/AXm1t8k.png 0b) What You Need (top) (#post_contents) You will need a few accessories, a power supply, four heatsinks and a controller to get started. I recommend getting the controller from Technobit as they will preload it with the latest firmware. Click your flag to find everything you need to get started at Amazon! https://i.imgur.com/nbE2zmI.jpg (http://goo.gl/GQ9vHn) https://i.imgur.com/VrKwdav.jpg (http://goo.gl/YzdjE2) https://i.imgur.com/DKBxvTA.jpg (http://goo.gl/728BhR) https://i.imgur.com/T4fRQnt.png (http://goo.gl/GQ9vHn) https://i.imgur.com/fyKxshp.png (http://goo.gl/YzdjE2) https://i.imgur.com/8Y0bFol.png (http://goo.gl/728BhR) https://i.imgur.com/AXm1t8k.png 1) Powering (top) (#post_contents) HEX4Ms do not come with a power supply, and you will need a typical computer PSU with 2xPCI-E 6 pin power connectors. We also need to tell the PSU to always be on, as there isn't a motherboard to do this. Cut a paper clip into a U and insert it into the green wire and either black wire to the side of the green wire. Tape it up for safety. The power supply will now be controlled by its switch on the rear socket. https://farm6.staticflickr.com/5590/15085193172_53bf507cd3.jpg (https://farm6.staticflickr.com/5590/15085193172_2c28f276ee_o.jpg) https://i.imgur.com/URnhwPH.jpg (https://i.imgur.com/URnhwPH.jpg) https://i.imgur.com/AXm1t8k.png 2) Cooling (top) (#post_contents) An aluminium heatsink covers the entire backside of the board to provide structure and keep board temperatures down, and is cooled by a single 120mm heatsink. The minion chips each require a Arctic Freezer 7 Pro heatsink, or socket 1150 heatsink. You will have to be careful with compatibility due to how to backside heatsink interferes with how the chip's backplate would usually be installed. https://farm4.staticflickr.com/3840/15085240742_041e65485e.jpg (https://farm4.staticflickr.com/3840/15085240742_4ce8d28a10_o.jpg) https://farm4.staticflickr.com/3862/14898970680_044a35e4e7.jpg (https://farm4.staticflickr.com/3862/14898970680_1f1ac23cb5_o.jpg) https://i.imgur.com/AXm1t8k.png https://i.imgur.com/AXm1t8k.png 3a) Configuration (TL-MR3020) (top) (#post_contents) An external controller is required which can either be a TP-LINK TL-MR3020 (http://goo.gl/k7RFz7) router or a Windows based PC. Wiring:
Using a modified TP Link MR3020
Alternative Subnet Change:
Antpool Register! (https://account.bitmain.com/sign_up) Code: Servers : stratum.antpool.com:3333 Code: Servers : stratum.btcguild.com:3333 Code: Servers : us1.ghash.io:3333 3b) Configuration (Windows PC) (top) (#post_contents) An external controller is required which can either be a TP-LINK TL-MR3020 (http://goo.gl/k7RFz7) router or a Windows based PC. Wiring:
Using a Windows based PC
Antpool Register! (https://account.bitmain.com/sign_up) Code: Servers : stratum.antpool.com:3333 Code: Servers : stratum.btcguild.com:3333 Code: Servers : us1.ghash.io:3333 https://i.imgur.com/AXm1t8k.png https://i.imgur.com/AXm1t8k.png 4) Troubleshooting (top) (#post_contents)
https://farm6.staticflickr.com/5569/15062624356_e1a06b5034.jpg (https://farm6.staticflickr.com/5569/15062624356_298c8ee3a6_o.jpg) https://farm4.staticflickr.com/3910/14898896139_248167cd79.jpg (https://farm4.staticflickr.com/3910/14898896139_61897654f0_o.jpg) https://i.imgur.com/AXm1t8k.png Legal disclaimer: This information is for general guidance and does not constitute expert advice. We are not responsible if you, your property or a third party is injured or damaged as a result of any interaction with this information, and no warranty is provided. All text and images are covered by copyright. https://i.imgur.com/AXm1t8k.png 5) Where to buy (top) (#post_contents) https://i.imgur.com/nbE2zmI.jpg (http://goo.gl/S8QyuP) https://i.imgur.com/VrKwdav.jpg (http://goo.gl/S8QyuP) https://i.imgur.com/DKBxvTA.jpg (http://goo.gl/S8QyuP) https://i.imgur.com/AXm1t8k.png Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: cannachris on October 24, 2014, 10:04:50 AM Hey guys my hex4m has this particular problem:

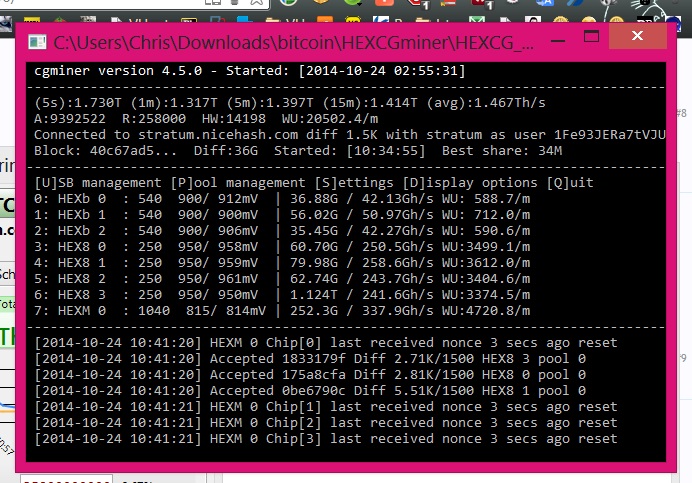

http://clelarge.home.xs4all.nl/hex4mprob0.jpg it's timing out I've tried lower and higher values for the nonce-timout setting in cgminer nut this seems to be the best I can get out of it? Sometimes it runs smooth for a few minutes without the reset error and then it goes at around 400gh and every once in a while it will just give so many of the reset errors that it's hashrate drops down to avout 100gh for a minute or two. I just used the cooling paste that was on the bottom of the freezer pro 7 but if this was overheating i should be able e to feel heat on the pcb around the chip and it's room temperature pretty much not hot at all... anyone had similar problems? Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: marto74 on October 24, 2014, 12:06:29 PM Hi,
Check if all collars are good connected . then try 1016/820 or even 840 Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: cannachris on October 24, 2014, 07:41:40 PM 1016/830 makes it 90% stable @ 396-398 Gh :) But with ~4% rejects :( Should I change the nonce-timout settings?
Does this just vary per board? Because I am about to buy eight more. Is it still possible to overclock this board further? I'll try 835 and 840 next since the board is still pretty cool not getting hot at all just a little warm Nice design guys! Except you forgot to drill the holes in the bottom heatsink for the 4 thingy's that it stands on so its not standing very stable but I guess that's just because I got 1 of the 1st boards from the BA fiasco? Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: cannachris on October 29, 2014, 04:15:15 AM I own one of these and have for a while, it's good but it took me a bit to get up and running (Marto took control and saved the day). I have it clocked down and it still pumps out 360ghash at a way better watt usage. what settings are you using? and what wattage does it use? also, what should "hexminerm-pic-roll" be set at and what does this setting do exactly? I seem to be getting a lot of stale shares... Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: nexus99 on October 29, 2014, 04:47:54 AM My boards wont run at all at the default clock speed. Its pretty terrible.
I can get them to run at 512/820 ... about 200 gh/s. Any faster clock speed and they die. I must be doing something wrong. At 200 gh/s these aren't worth it... Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: marto74 on October 29, 2014, 05:42:00 AM My boards wont run at all at the default clock speed. Its pretty terrible. drop me PM with TW accessI can get them to run at 512/820 ... about 200 gh/s. Any faster clock speed and they die. I must be doing something wrong. At 200 gh/s these aren't worth it... Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: Zich on October 30, 2014, 01:25:58 AM My boards wont run at all at the default clock speed. Its pretty terrible. I can get them to run at 512/820 ... about 200 gh/s. Any faster clock speed and they die. I must be doing something wrong. At 200 gh/s these aren't worth it... What is your setting? All of them, not just 512/820 <== what is this anyway ??? (sorry, i am noob) What is your power supply? Brand & type What is your controller? Tplink, Rpi, PC .... Please post some picture, cgminer screenshot maybe Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: nexus99 on November 01, 2014, 06:41:39 AM My boards wont run at all at the default clock speed. Its pretty terrible. I can get them to run at 512/820 ... about 200 gh/s. Any faster clock speed and they die. I must be doing something wrong. At 200 gh/s these aren't worth it... What is your setting? All of them, not just 512/820 <== what is this anyway ??? (sorry, i am noob) What is your power supply? Brand & type What is your controller? Tplink, Rpi, PC .... Please post some picture, cgminer screenshot maybe I have varied the clock speed and voltage quite a bit. These are the other settings: "hexminerm-pic-roll" : "90", "hexminerm-hw-err-res" : "5", "hexminerm-nonce-timeout-secs" : "2", "hexminerm-chip-mask" : "15", "hexminerm-voltage" : "780", < This one I have played with a lot. "hexminerm-options" : "4:875", < And this one. I am running this off windows with the CGminer version for HEX boards. I have run off a TPLink too. Power supply is a Dell server PSU. Pushing out about 750 watts. Powering a single board. I get tons of the nonce errors. Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: Zich on November 01, 2014, 09:14:40 AM I have varied the clock speed and voltage quite a bit. These are the other settings: "hexminerm-pic-roll" : "90", "hexminerm-hw-err-res" : "5", "hexminerm-nonce-timeout-secs" : "2", "hexminerm-chip-mask" : "15", "hexminerm-voltage" : "780", < This one I have played with a lot. "hexminerm-options" : "4:875", < And this one. I am running this off windows with the CGminer version for HEX boards. I have run off a TPLink too. Power supply is a Dell server PSU. Pushing out about 750 watts. Powering a single board. I get tons of the nonce errors. If you want to achieve maximum speed, do not change chipmask, voltage & options from default. You can play with other "hexminerm-pic-roll" : "90", "hexminerm-hw-err-res" : "10", "hexminerm-nonce-timeout-secs" : "2", "hexminerm-reset-below-threshold" : "25", "hexminerm-chip-mask" : "15", "hexminerm-voltage" : "820", "hexminerm-options" : "4:1024", Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 16, 2014, 12:08:38 AM I am using the TP-Link controller and I am suddenly getting this error.
Code: [Firmware Version] => 20140922 cgminer: 4_5_0_9afd0a2 Socket connect failed: Connection refused Anyone have a clue what to do to get this back up and running? Ok I thought I had it but the error keeps coming. Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 16, 2014, 12:36:11 AM Ok I have overcome that with several reboots of the TP-Link.
Now it is up but not mining when it did before. So dam odd. Code: [Firmware Version] => 20140922 I am using the TP-Link controller and I am suddenly getting this error. [/code]Code: [Firmware Version] => 20140922 cgminer: 4_5_0_9afd0a2 Socket connect failed: Connection refused Anyone have a clue what to do to get this back up and running? Ok I thought I had it but the error keeps coming. Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: dogie on November 16, 2014, 12:38:51 AM I am using the TP-Link controller and I am suddenly getting this error. Code: [Firmware Version] => 20140922 cgminer: 4_5_0_9afd0a2 Socket connect failed: Connection refused Anyone have a clue what to do to get this back up and running? Ok I thought I had it but the error keeps coming. Check all the values on all the miner config pages are filled. Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 16, 2014, 12:49:19 AM They are. I did not change them.
Here is the Minion page. http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot320.png I am using the TP-Link controller and I am suddenly getting this error. Code: [Firmware Version] => 20140922 cgminer: 4_5_0_9afd0a2 Socket connect failed: Connection refused Anyone have a clue what to do to get this back up and running? Ok I thought I had it but the error keeps coming. Check all the values on all the miner config pages are filled. Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: dogie on November 16, 2014, 01:45:35 AM They are. I did not change them. Here is the Minion page. On all the pages? Sometimes some go blank when you flash new firmware. If you havent then I'm not sure. Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 16, 2014, 02:06:47 AM I just double checked all the configs have populated fields.

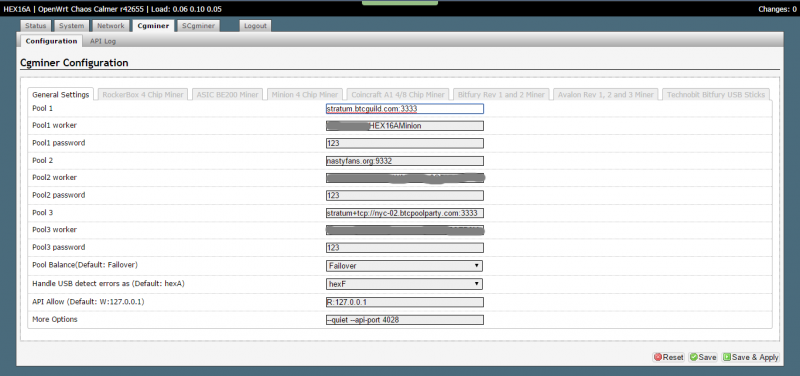

Does this setting look good? I cannot remember if I changed USB Detect errors box or not. http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot321.png They are. I did not change them. Here is the Minion page. On all the pages? Sometimes some go blank when you flash new firmware. If you havent then I'm not sure. Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: Zich on November 16, 2014, 06:08:13 AM dogie mean to check all other miner(rockerbox, be200, A1, avalon, bitfury, nanofury, etc) setting page too.
If all checked then restart your router, probably dns problem. Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 03:13:23 AM I did check the other settings boxes and nothing was empty.
Also I have restarted the router and checked all sorts of settings. It was working well and just does not now so reflash and everything else I could think of I have tried. I am not used to this controller but I had it going before. ??? dogie mean to check all other miner(rockerbox, be200, A1, avalon, bitfury, nanofury, etc) setting page too. If all checked then restart your router, probably dns problem. Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: Zich on November 17, 2014, 04:33:56 AM I did check the other settings boxes and nothing was empty. Also I have restarted the router and checked all sorts of settings. It was working well and just does not now so reflash and everything else I could think of I have tried. I am not used to this controller but I had it going before. ??? dogie mean to check all other miner(rockerbox, be200, A1, avalon, bitfury, nanofury, etc) setting page too. If all checked then restart your router, probably dns problem. How about the network setting? Did the setting right? You can use ssh to see cgminer user interface, check what kind of alarm there(remove --quiet option on cgminer configuration page first). Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 05:03:43 AM screen -r?
What does it say? Tplink shall be able to sync network time Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 06:50:27 AM It does sync the time properly with the network time.
Just noticed IPv4 broadcast is empty. I wonder if there was something there before? screen -r? What does it say? Tplink shall be able to sync network time Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 08:23:16 AM It does sync the time properly with the network time. ----------------------Just noticed IPv4 broadcast is empty. I wonder if there was something there before? screen -r? What does it say? Tplink shall be able to sync network time Just noticed IPv4 broadcast is empty --------------------------- It does not matter .... once again screen -r via ssh will tell you what is wrong pls post the output here Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 08:31:34 AM Sorry about the confusion.

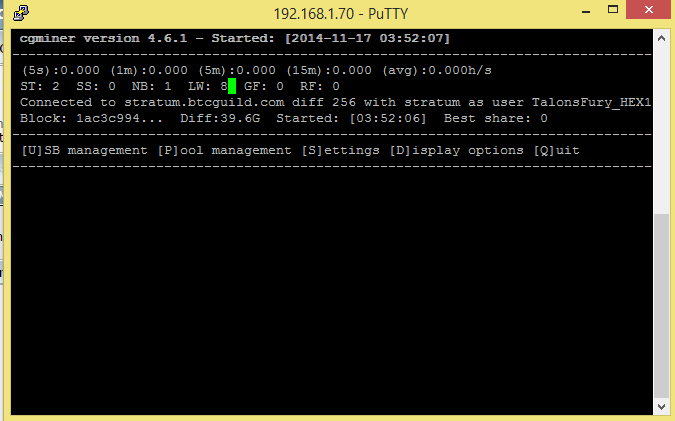

Got it. http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot328.png It does sync the time properly with the network time. ----------------------Just noticed IPv4 broadcast is empty. I wonder if there was something there before? screen -r? What does it say? Tplink shall be able to sync network time Just noticed IPv4 broadcast is empty --------------------------- It does not matter .... once again screen -r via ssh will tell you what is wrong pls post the output here Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 08:53:52 AM Same as web user and pass ;)
Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 08:54:47 AM Got it in previous post.
Screenshot is there now. Sorry about that. I brain cramped. Same as web user and pass ;) Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 09:18:17 AM Got it in previous post. Screenshot is there now. Sorry about that. I brain cramped. Same as web user and pass ;) So it appears like usb issue cables hubs or..? Board is missing please type lsusb and post output Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 09:24:51 AM All the chip LEDs are lighting up and blinking like it is hashing which is odd.

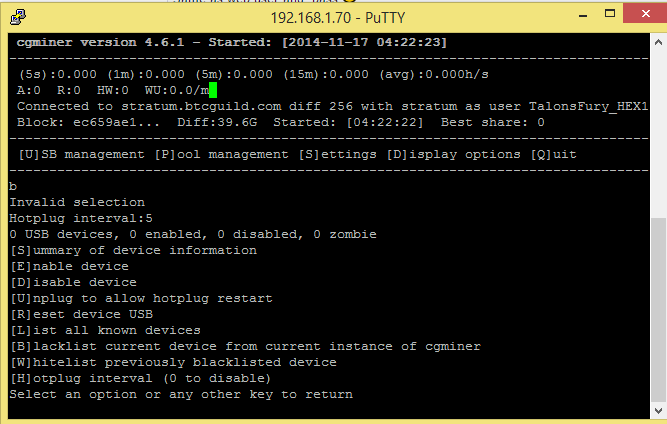

I have tried two hubs as well as directly into the TP-Link. http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot329.png Got it in previous post. Screenshot is there now. Sorry about that. I brain cramped. Same as web user and pass ;) So it appears like usb issue cables hubs or..? Board is missing please type lsusb and post output Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 09:29:31 AM dude in shell please type lsusb and post output can you?
Or better if you want/can pm me a TW id/pass so i can take a look ;) Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 09:33:21 AM Sorry it's 4:30am here I am a bit slow.

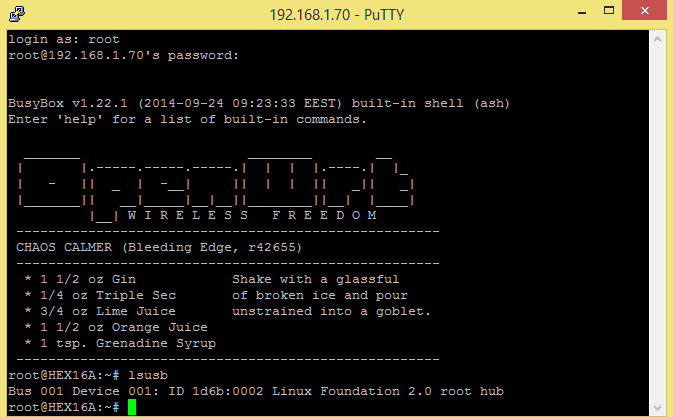

http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot330.png dude in shell please type lsusb and post output can you? Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 09:35:09 AM board is not there and there is no USB hUB connected also
check your usb cable and try with another one. You need to have twio USB cables connected in TPLINK one for power and one for usb data Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 09:38:45 AM I do, I have a solid power wart for the TP link.
I will double check the other cable though. board is not there and there is no USB hUB connected also check your usb cable and try with another one. You need to have twio USB cables connected in TPLINK one for power and one for usb data Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 09:55:59 AM I do, I have a solid power wart for the TP link. Ok whatever you plug in tplink usb data port shall show in lsusb. It may bad usb cable, or just bad usb port of the tplink itself.I will double check the other cable though. board is not there and there is no USB hUB connected also check your usb cable and try with another one. You need to have twio USB cables connected in TPLINK one for power and one for usb data Meanwhile just for the record you can plug your miner in windows. It shall show up like unknown usb device if all is ok. Just to see if miner usb connection is ok Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 09:58:55 AM I wish there was a RPi image for it. I have a ton of them. I will test it on a windows system.
Thank you for your help I do appreciate it. I do, I have a solid power wart for the TP link. Ok whatever you plug in tplink usb data port shall show in lsusb. It may bad usb cable, or just bad usb port of the tplink itself.I will double check the other cable though. board is not there and there is no USB hUB connected also check your usb cable and try with another one. You need to have twio USB cables connected in TPLINK one for power and one for usb data Meanwhile just for the record you can plug your miner in windows. It shall show up like unknown usb device if all is ok. Just to see if miner usb connection is ok Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 10:06:32 AM It's a bit different this time. I changed the cable and the hub again.
http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot331.png I do, I have a solid power wart for the TP link. Ok whatever you plug in tplink usb data port shall show in lsusb. It may bad usb cable, or just bad usb port of the tplink itself.I will double check the other cable though. board is not there and there is no USB hUB connected also check your usb cable and try with another one. You need to have twio USB cables connected in TPLINK one for power and one for usb data Meanwhile just for the record you can plug your miner in windows. It shall show up like unknown usb device if all is ok. Just to see if miner usb connection is ok Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 10:16:50 AM It's a bit different this time. I changed the cable and the hub again. So it shall be mining if your udevd is started. ;) Otherwise you need to restart cgminerhttp://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot331.png I do, I have a solid power wart for the TP link. Ok whatever you plug in tplink usb data port shall show in lsusb. It may bad usb cable, or just bad usb port of the tplink itself.I will double check the other cable though. board is not there and there is no USB hUB connected also check your usb cable and try with another one. You need to have twio USB cables connected in TPLINK one for power and one for usb data Meanwhile just for the record you can plug your miner in windows. It shall show up like unknown usb device if all is ok. Just to see if miner usb connection is ok Or better just execute /usr/bin/fix_rc it will enable udevd and reboot tplink the all will be good :) Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 10:21:27 AM Closer but not quite.
Rebooting the TP-Link and also SSH in and tried it manually. http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot333.png It's a bit different this time. I changed the cable and the hub again. So it shall be mining if your udevd is started. ;) Otherwise you need to restart cgminerhttp://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot331.png I do, I have a solid power wart for the TP link. Ok whatever you plug in tplink usb data port shall show in lsusb. It may bad usb cable, or just bad usb port of the tplink itself.I will double check the other cable though. board is not there and there is no USB hUB connected also check your usb cable and try with another one. You need to have twio USB cables connected in TPLINK one for power and one for usb data Meanwhile just for the record you can plug your miner in windows. It shall show up like unknown usb device if all is ok. Just to see if miner usb connection is ok Or better just execute /usr/bin/fix_rc it will enable udevd and reboot tplink the all will be good :) Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 10:36:57 AM Just power off HEXM board - unplug USB + 12V
Reboot tplink power on 12V of HM board and finally plug USB cable ;) And you can remove hub also just plug board directly and make sure lsusb shows it Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: Zich on November 17, 2014, 10:47:15 AM Check again your cgminer configuration page.
Handle usb detect error as : set to hex4m Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 11:00:02 AM So close. Now I have a Zombie. LOL
Hex4m is set for the handle USB error. http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot334.png Check again your cgminer configuration page. Handle usb detect error as : set to hex4m Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 11:07:16 AM So close. Now I have a Zombie. LOL Remove the USB HUB :)Hex4m is set for the handle USB error. http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot334.png Check again your cgminer configuration page. Handle usb detect error as : set to hex4m Power off 12V of HEXM Remove USB HEXM cable Power on 12V of hexM PLUG USB cable of HEXM into tplink without hub directly and make sure your USB cable is OK ;) Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: Zich on November 17, 2014, 11:44:44 AM Of course you can always switch back to previous version of TPLINK firmware that work before :D
For Rpi, you need to apply patch then compile the cgminer, it's easy even for windows user like me ;D Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 12:01:12 PM With the Hex is was working fine I did nothing to it and it stopped.
I have hooked it up to a windows system it sees the miner. I just dont want to set it up on that one as it runs an array of Scrypt miners. Here is what I get on the TP-Link again. http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot335.png Of course you can always switch back to previous version of TPLINK firmware that work before :D For Rpi, you need to apply patch then compile the cgminer, it's easy even for windows user like me ;D Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 12:08:05 PM Now it sort of starts and then disables the miner.

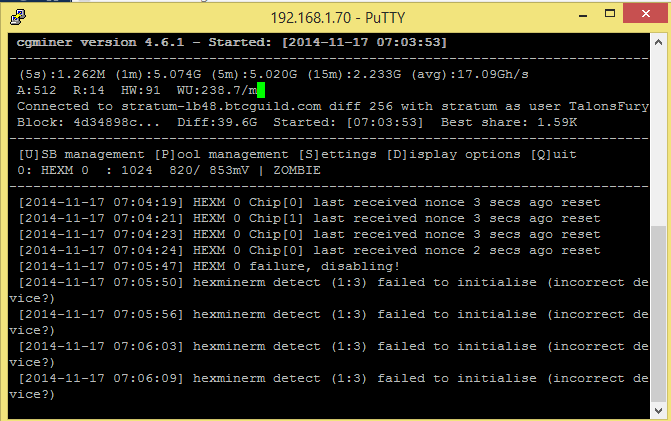

http://i72.photobucket.com/albums/i173/Talon8Ya/Screenshot336.png Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: Zich on November 17, 2014, 12:22:47 PM If all of them is checked, then last resort is RMA :D
Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 12:38:21 PM Loshia and Martin have both offered to TW in and check it out as well. I will try that next and see how far we get.
Thank you for the help. If all of them is checked, then last resort is RMA :D Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: loshia on November 17, 2014, 01:17:06 PM Disable HEXM reset code (cgminer seting) via web and try again
Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: ManeBjorn on November 17, 2014, 03:11:50 PM Interestingly it is not an option to disable.

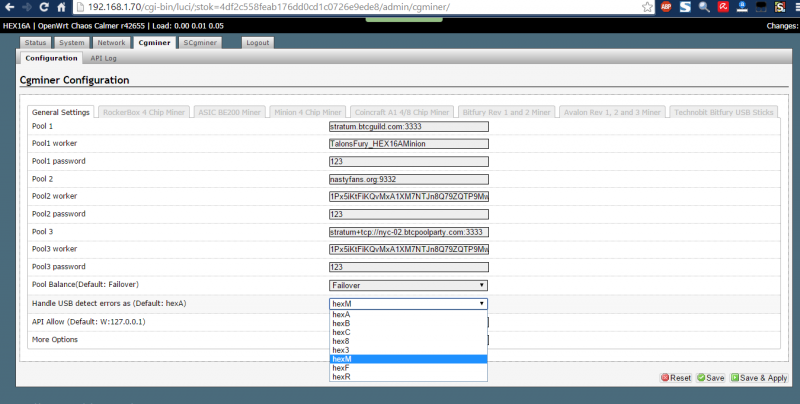

http://i72.photobucket.com/albums/i173/Talon8Ya/MTG%20for%20Sale/Screenshot338.png Disable HEXM reset code (cgminer seting) via web and try again Title: Re: [Guide] Dogie's Comprehensive Technobit HEX4M [HD] Post by: marto74 on November 17, 2014, 03:51:23 PM You misunderstand each other.
Give us TW access and I'll try to fix it for you |
