Innosilicon Dashminer A5 problems (bad ASIC chips)

[funbuxx]

I've received my 2 Innosilicon Dashminer A5s and have had a lot of problems with them.

First of all, one did not have the default web admin password stated in the manual (12345678) so I had to disassemble the downloadable firmware and crack the root password for it's hidden telnet server on port 8100. That one is now up and running.

The other would not boot up until I re-flashed it via the microSD card. This one is now mining but 1 of the 3 ASIC boards has a fault and the status LED goes out as soon as it starts mining so it can only mine on 2 out of 3 ASICS.

I logged in via the telnet port and got this log out of it. Looks like bad chips on one of the boards.

No response from Innosilicon to the requests I made via their website form

Anyone familiar with ASICS know if this can be fixed (firmware etc) or are these chips dead?

Thanks

Code:

./innominer_T3 --debug
 [2017-11-24 11:26:46] Started sgminer 4.4.2
 [2017-11-24 11:26:46] A1 detect
 [2017-11-24 11:26:46] hardware version is G19
 [2017-11-24 11:26:46] miner type is T1
 [2017-11-24 11:26:47] chip nums:264.
 [2017-11-24 11:26:47] pwm  name:/dev/pwmgen0.0.
 [2017-11-24 11:26:47] pwm  name:/dev/pwmgen1.0.
 [2017-11-24 11:26:47] pwm  step:10.
 [2017-11-24 11:26:47] duty max: 100.
 [2017-11-24 11:26:47] targ freq:7000.
 [2017-11-24 11:26:47] freq rate:7142.
 [2017-11-24 11:26:47] max  thrd:100.00.
 [2017-11-24 11:26:47] up   thrd:55.00.
 [2017-11-24 11:26:47] down thrd:35.00.
 [2017-11-24 11:26:47] temp nums:34.
 [2017-11-24 11:26:47] temp vmin:408.
 [2017-11-24 11:26:47] temp vmax:652.
 [2017-11-24 11:26:47] temp fstp: 5.00.
 [2017-11-24 11:26:47] temp fmin:-40.00.
 [2017-11-24 11:26:47] temp fmax:125.00.
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1: checking A1 chain
 [2017-11-24 11:26:47] SPI '/dev/spidev0.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev1.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev2.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev3.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev4.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev5.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev6.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev7.0': mode=1, bits=8, speed=1500000
set_vid_value:8.
 [2017-11-24 11:26:51] Plug Status[0] = 0

 [2017-11-24 11:26:52] Plug Status[1] = 0

 [2017-11-24 11:26:54] Plug Status[2] = 0

 [2017-11-24 11:26:55] Plug Status[3] = 1

 [2017-11-24 11:26:57] Plug Status[4] = 1

 [2017-11-24 11:26:58] Plug Status[5] = 1

 [2017-11-24 11:27:00] Plug Status[6] = 1

 [2017-11-24 11:27:01] Plug Status[7] = 1

 [2017-11-24 11:27:01] 0: A1 init chain
 [2017-11-24 11:27:01] send command [bist_start]

 [2017-11-24 11:27:01] spi_send_command,147

 [2017-11-24 11:27:01] spi_send_data,126

 [2017-11-24 11:27:01] 0: detected 33 chips
 [2017-11-24 11:27:01] send command [write_reg]

 [2017-11-24 11:27:01] #####Write t/v sensor Value Success!

 [2017-11-24 11:27:01] spidev0.0: 0: Found 33 A1 chips
 [2017-11-24 11:27:02] [chain_ID:0]: Found 33 Chips
 [2017-11-24 11:27:02] Detected the 0 A1 chain with 33 chips
 [2017-11-24 11:27:02] 1: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 2: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 3: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 4: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 5: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 6: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 7: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 0: A1 init chain
 [2017-11-24 11:27:02] send command [reset]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] cmd write reg: poll fail !
 [2017-11-24 11:27:02] Set Default PLL Five Times!
 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] set default PLL  2 Times Success
 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] Set Default PLL Five Times!
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] cmd write reg: poll fail !
 [2017-11-24 11:27:12] Set Default PLL Five Times!
 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:519,520,512, 50.0000,55.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :50.0000, 5.0000,-1,-8
 [2017-11-24 11:27:14] inno_fan_temp_add:chain_0,chip_0,temp:50.6250(519)
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:519,520,512, 50.0000,55.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :50.0000, 5.0000,-1,-8
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:516,520,512, 50.0000,55.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :50.0000, 5.0000,-4,-8
 [2017-11-24 11:27:14] inno_fan_temp_add:chain_0,chip_1,temp:52.5000(516)
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:516,520,512, 50.0000,55.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :50.0000, 5.0000,-4,-8
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:535,535,527, 40.0000,45.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :40.0000, 5.0000,0,-8
 [2017-11-24 11:27:14] inno_fan_temp_add:chain_0,chip_2,temp:40.0000(535)
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:535,535,527, 40.0000,45.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :40.0000, 5.0000,0,-8
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:530,535,527, 40.0000,45.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :40.0000, 5.0000,-5,-8
 [2017-11-24 11:27:14] inno_fan_temp_add:chain_0,chip_3,temp:43.1250(530)
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:530,535,527, 40.0000,45.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :40.0000, 5.0000,-5,-8
crc:9821,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 5 -> disabling
 [2017-11-24 11:27:14] init_ReadTemp...
 [2017-11-24 11:27:14] 0: A1 init chain reload
 [2017-11-24 11:27:14] send command [bist_start]

 [2017-11-24 11:27:14] spi_send_command,147

 [2017-11-24 11:27:14] spi_send_data,126

 [2017-11-24 11:27:14] [reload]0: detected 33 chips
send command [bist_collect]
 [2017-11-24 11:27:14] spi_send_command,147

 [2017-11-24 11:27:14] spi_send_data,126

 [2017-11-24 11:27:14] collect core success
 [2017-11-24 11:27:14] 0:  A1 chip-chain detected
 [2017-11-24 11:27:14] spidev0.0: 0: Found 33 A1 chips
 [2017-11-24 11:27:14] send command [bist_fix]

 [2017-11-24 11:27:14] spi_send_command,147

 [2017-11-24 11:27:14] spi_send_data,126

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
crc:a052,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 1 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 2 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 3 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 4 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 5 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 6 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 7 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 8 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 9 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 10 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 11 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 12 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 13 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 14 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 15 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 16 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 17 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 18 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 19 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 20 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 21 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 22 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 23 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 24 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 25 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 26 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 27 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 28 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 29 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 30 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 31 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 32 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 33 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:15] cmd write reg: poll fail !
 [2017-11-24 11:27:15] send command [write_reg]

 [2017-11-24 11:27:15] cmd write reg: poll fail !
 [2017-11-24 11:27:15] send command [write_reg]

 [2017-11-24 11:27:15] cmd write reg: poll fail !
 [2017-11-24 11:27:15] send command [write_reg]

 [2017-11-24 11:27:15] cmd write reg: poll fail !
 [2017-11-24 11:27:15] 0: Failed to read register for chip 1 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_4,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_5,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 2 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_5,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_6,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 3 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_6,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_7,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 4 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_7,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_8,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 5 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_8,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_9,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 6 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_9,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_10,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 7 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_10,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_11,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 8 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_11,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_12,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 9 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_12,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_13,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 10 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_13,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_14,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 11 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_14,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_15,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 12 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_15,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_16,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 13 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_16,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_17,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 14 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_17,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_18,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 15 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_18,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_19,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 16 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_19,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_20,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 17 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_20,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_21,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 18 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_21,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_22,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 19 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_22,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_23,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 20 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_23,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_24,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 21 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_24,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_25,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 22 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_25,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_26,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 23 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_26,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_27,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 24 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_27,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_28,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 25 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_28,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_29,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 26 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_29,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_30,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 27 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_30,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_31,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 28 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_31,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_32,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 29 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_32,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_33,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 30 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_33,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_34,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 31 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_34,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_35,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 32 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_35,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_36,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 33 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_36,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_37,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] not sort:
 [2017-11-24 11:27:15] chip_0:00000207(519)
 [2017-11-24 11:27:15] chip_1:00000204(516)
 [2017-11-24 11:27:15] chip_2:00000217(535)
 [2017-11-24 11:27:15] chip_3:00000212(530)
 [2017-11-24 11:27:15] chip_4:00000000(0)
 [2017-11-24 11:27:15] chip_5:00000000(0)
 [2017-11-24 11:27:15] chip_6:00000000(0)
 [2017-11-24 11:27:15] chip_7:00000000(0)
 [2017-11-24 11:27:15] chip_8:00000000(0)
 [2017-11-24 11:27:15] chip_9:00000000(0)
 [2017-11-24 11:27:15] chip_10:00000000(0)
 [2017-11-24 11:27:15] chip_11:00000000(0)
 [2017-11-24 11:27:15] chip_12:00000000(0)
 [2017-11-24 11:27:15] chip_13:00000000(0)
 [2017-11-24 11:27:15] chip_14:00000000(0)
 [2017-11-24 11:27:15] chip_15:00000000(0)
 [2017-11-24 11:27:15] chip_16:00000000(0)
 [2017-11-24 11:27:15] chip_17:00000000(0)
 [2017-11-24 11:27:15] chip_18:00000000(0)
 [2017-11-24 11:27:15] chip_19:00000000(0)
 [2017-11-24 11:27:15] chip_20:00000000(0)
 [2017-11-24 11:27:15] chip_21:00000000(0)
 [2017-11-24 11:27:15] chip_22:00000000(0)
 [2017-11-24 11:27:15] chip_23:00000000(0)
 [2017-11-24 11:27:15] chip_24:00000000(0)
 [2017-11-24 11:27:15] chip_25:00000000(0)
 [2017-11-24 11:27:15] chip_26:00000000(0)
 [2017-11-24 11:27:15] chip_27:00000000(0)
 [2017-11-24 11:27:15] chip_28:00000000(0)
 [2017-11-24 11:27:15] chip_29:00000000(0)
 [2017-11-24 11:27:15] chip_30:00000000(0)
 [2017-11-24 11:27:15] chip_31:00000000(0)
 [2017-11-24 11:27:15] chip_32:00000000(0)
 [2017-11-24 11:27:15] chip_33:00000000(0)
 [2017-11-24 11:27:15] chip_34:00000000(0)
 [2017-11-24 11:27:15] chip_35:00000000(0)
 [2017-11-24 11:27:15] chip_36:00000000(0)
 [2017-11-24 11:27:15] sorted:
 [2017-11-24 11:27:15] chip_0:00000000(0)
 [2017-11-24 11:27:15] chip_1:00000000(0)
 [2017-11-24 11:27:15] chip_2:00000000(0)
 [2017-11-24 11:27:15] chip_3:00000000(0)
 [2017-11-24 11:27:15] chip_4:00000000(0)
 [2017-11-24 11:27:15] chip_5:00000000(0)
 [2017-11-24 11:27:15] chip_6:00000000(0)
 [2017-11-24 11:27:15] chip_7:00000000(0)
 [2017-11-24 11:27:15] chip_8:00000000(0)
 [2017-11-24 11:27:15] chip_9:00000000(0)
 [2017-11-24 11:27:15] chip_10:00000000(0)
 [2017-11-24 11:27:15] chip_11:00000000(0)
 [2017-11-24 11:27:15] chip_12:00000000(0)
 [2017-11-24 11:27:15] chip_13:00000000(0)
 [2017-11-24 11:27:15] chip_14:00000000(0)
 [2017-11-24 11:27:15] chip_15:00000000(0)
 [2017-11-24 11:27:15] chip_16:00000000(0)
 [2017-11-24 11:27:15] chip_17:00000000(0)
 [2017-11-24 11:27:15] chip_18:00000000(0)
 [2017-11-24 11:27:15] chip_19:00000000(0)
 [2017-11-24 11:27:15] chip_20:00000000(0)
 [2017-11-24 11:27:15] chip_21:00000000(0)
 [2017-11-24 11:27:15] chip_22:00000000(0)
 [2017-11-24 11:27:15] chip_23:00000000(0)
 [2017-11-24 11:27:15] chip_24:00000000(0)
 [2017-11-24 11:27:15] chip_25:00000000(0)
 [2017-11-24 11:27:15] chip_26:00000000(0)
 [2017-11-24 11:27:15] chip_27:00000000(0)
 [2017-11-24 11:27:15] chip_28:00000000(0)
 [2017-11-24 11:27:15] chip_29:00000000(0)
 [2017-11-24 11:27:15] chip_30:00000000(0)
 [2017-11-24 11:27:15] chip_31:00000000(0)
 [2017-11-24 11:27:15] chip_32:00000000(0)
 [2017-11-24 11:27:15] chip_33:00000204(516)
 [2017-11-24 11:27:15] chip_34:00000207(519)
 [2017-11-24 11:27:15] chip_35:00000212(530)
 [2017-11-24 11:27:15] chip_36:00000217(535)
 [2017-11-24 11:27:15] sort end.
 [2017-11-24 11:27:15] inno_fan_temp_get_arvarge, chain_id:0, temp nums:37, valid index[1,36], reseult:9999.0000(44).

 [2017-11-24 11:27:15] [chain_ID:0]: Found 33 Chips With Total 0 Active Cores
 [2017-11-24 11:27:15] [chain_ID]: Temp:0

 [2017-11-24 11:27:15] Notice Chain 0 temp:0 Maybe Has Some Problem in Temperate

[1713971627]

1713971627

[funbuxx]

https://pbs.twimg.com/media/DPZZUdVX4AAyzfM.jpg

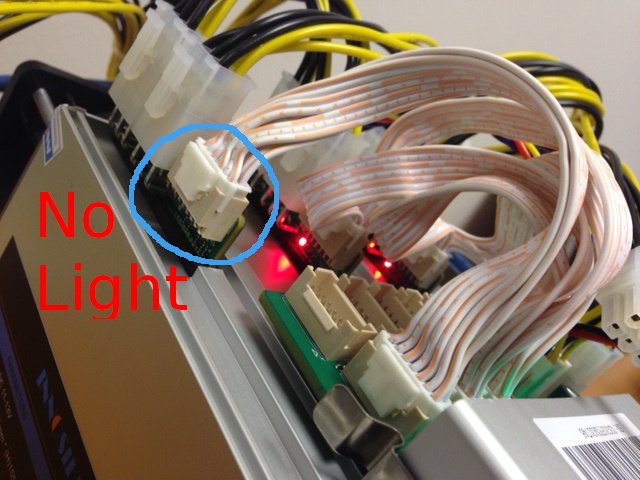

No light on 1 of the ASIC boards. Tried swapping cables and always this board that fails.

[BestSumo]

I also received one without a password of '12345678'. How were you able to get the root password?

Sorry I can't help with your bad asic board.

[HagssFIN]

There is nothing else to do with the bad hash board than to go with the warranty repair procedure.

[vinylwasp]

No light on 1 of the ASIC boards. Tried swapping cables and always this board that fails.

Suggest you try the new firmware: http://www.innosilicon.com/html/downA4/index.html

A4+ and A5 share a update firmware. If the firmware build date is before 2017.11.24, you must upgrade through TF card. If the firmware build date is 2017.11.24 or later, you can upgrade on the webpage of the miner.

[jamesmithico9982]

http://www.innosilicon.com/html/downA4/index.html update and see it worked

[BestSumo]

They shipped my miner without an SD Card slot and their software won't flash through their management pages.

Does anyone know where I can find their local host server on the miner it self? If I can do that I can probably manually execute the firmware update code through telnet.

[gvsrusa]

https://pbs.twimg.com/media/DPZZUdVX4AAyzfM.jpg

No light on 1 of the ASIC boards. Tried swapping cables and always this board that fails.

Suggest you try the new firmware: http://www.innosilicon.com/html/downA4/index.html

A4+ and A5 share a update firmware. If the firmware build date is before 2017.11.24, you must upgrade through TF card. If the firmware build date is 2017.11.24 or later, you can upgrade on the webpage of the miner.

Did you get any response from innosilicon? I have the same issue.

[funbuxx]

Hi gvsrusa,

No reply from innosilicon despite sending them diagnostic logs from the bad A5.

The logs suggest it's a temperature problem (board is too hot so gets disabled?)

I've had a few thoughts - the cooling on the A5 seems to be a huge wind tunnel.

Big fans at each end and the boards hang down vertically in this tunnel.

I'm guessing this is their cheap-ass solution to cooling them rather than putting proper heatsink/fans on each ASIC.

I'd have to void the warranty to open it up but I'm considering putting heatsinks on the ASIC chips to see if I can get them cooler.

Cheers,

FB

[BestSumo]

They are sending me a TF card reader in the mail to install. It is currently mining through my custom script but for some reason it mines to some random pool most the time.

[dagarair]

Great customer service and quality control it seems ROFL.

[warpminer]

They are sending me a TF card reader in the mail to install. It is currently mining through my custom script but for some reason it mines to some random pool most the time.

Hi Sorry for asking an unrelated question, but I see that you mentioned your A5 mining through some custom script. Do you have any experience in multi algorithm switching is it feasable on A5 and can you recommend some resources. I am presently mining on miningpoolhub single currency dash... in view of the shitty returns I'd like to try something new.
Thanks for the reply...

[Inno_ASIC]

I've received my 2 Innosilicon Dashminer A5s and have had a lot of problems with them.

First of all, one did not have the default web admin password stated in the manual (12345678) so I had to disassemble the downloadable firmware and crack the root password for it's hidden telnet server on port 8100. That one is now up and running.

The other would not boot up until I re-flashed it via the microSD card. This one is now mining but 1 of the 3 ASIC boards has a fault and the status LED goes out as soon as it starts mining so it can only mine on 2 out of 3 ASICS.

I logged in via the telnet port and got this log out of it. Looks like bad chips on one of the boards.

No response from Innosilicon to the requests I made via their website form

Anyone familiar with ASICS know if this can be fixed (firmware etc) or are these chips dead?

Thanks

Code:

./innominer_T3 --debug
 [2017-11-24 11:26:46] Started sgminer 4.4.2
 [2017-11-24 11:26:46] A1 detect
 [2017-11-24 11:26:46] hardware version is G19
 [2017-11-24 11:26:46] miner type is T1
 [2017-11-24 11:26:47] chip nums:264.
 [2017-11-24 11:26:47] pwm  name:/dev/pwmgen0.0.
 [2017-11-24 11:26:47] pwm  name:/dev/pwmgen1.0.
 [2017-11-24 11:26:47] pwm  step:10.
 [2017-11-24 11:26:47] duty max: 100.
 [2017-11-24 11:26:47] targ freq:7000.
 [2017-11-24 11:26:47] freq rate:7142.
 [2017-11-24 11:26:47] max  thrd:100.00.
 [2017-11-24 11:26:47] up   thrd:55.00.
 [2017-11-24 11:26:47] down thrd:35.00.
 [2017-11-24 11:26:47] temp nums:34.
 [2017-11-24 11:26:47] temp vmin:408.
 [2017-11-24 11:26:47] temp vmax:652.
 [2017-11-24 11:26:47] temp fstp: 5.00.
 [2017-11-24 11:26:47] temp fmin:-40.00.
 [2017-11-24 11:26:47] temp fmax:125.00.
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1 = 1100,98
 [2017-11-24 11:26:47] A1 PLL Clock = 1092MHz
 [2017-11-24 11:26:47] A1: checking A1 chain
 [2017-11-24 11:26:47] SPI '/dev/spidev0.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev1.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev2.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev3.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev4.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev5.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev6.0': mode=1, bits=8, speed=1500000
 [2017-11-24 11:26:47] SPI '/dev/spidev7.0': mode=1, bits=8, speed=1500000
set_vid_value:8.
 [2017-11-24 11:26:51] Plug Status[0] = 0

 [2017-11-24 11:26:52] Plug Status[1] = 0

 [2017-11-24 11:26:54] Plug Status[2] = 0

 [2017-11-24 11:26:55] Plug Status[3] = 1

 [2017-11-24 11:26:57] Plug Status[4] = 1

 [2017-11-24 11:26:58] Plug Status[5] = 1

 [2017-11-24 11:27:00] Plug Status[6] = 1

 [2017-11-24 11:27:01] Plug Status[7] = 1

 [2017-11-24 11:27:01] 0: A1 init chain
 [2017-11-24 11:27:01] send command [bist_start]

 [2017-11-24 11:27:01] spi_send_command,147

 [2017-11-24 11:27:01] spi_send_data,126

 [2017-11-24 11:27:01] 0: detected 33 chips
 [2017-11-24 11:27:01] send command [write_reg]

 [2017-11-24 11:27:01] #####Write t/v sensor Value Success!

 [2017-11-24 11:27:01] spidev0.0: 0: Found 33 A1 chips
 [2017-11-24 11:27:02] [chain_ID:0]: Found 33 Chips
 [2017-11-24 11:27:02] Detected the 0 A1 chain with 33 chips
 [2017-11-24 11:27:02] 1: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 2: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 3: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 4: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 5: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 6: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 7: A1 init chain
 [2017-11-24 11:27:02] send command [bist_start]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] cmd bist start: poll fail !
 [2017-11-24 11:27:02] bist start fail
 [2017-11-24 11:27:02] init a1 chain fail
 [2017-11-24 11:27:02] 0: A1 init chain
 [2017-11-24 11:27:02] send command [reset]

 [2017-11-24 11:27:02] spi_send_command,147

 [2017-11-24 11:27:02] spi_send_data,126

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] cmd write reg: poll fail !
 [2017-11-24 11:27:02] Set Default PLL Five Times!
 [2017-11-24 11:27:02] send command [write_reg]

 [2017-11-24 11:27:02] set default PLL  2 Times Success
 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:03] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:04] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:05] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:06] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:07] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] Set Default PLL Five Times!
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] cmd write reg: poll fail !
 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:08] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:09] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:10] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:11] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] cmd write reg: poll fail !
 [2017-11-24 11:27:12] Set Default PLL Five Times!
 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:12] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:13] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:519,520,512, 50.0000,55.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :50.0000, 5.0000,-1,-8
 [2017-11-24 11:27:14] inno_fan_temp_add:chain_0,chip_0,temp:50.6250(519)
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:519,520,512, 50.0000,55.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :50.0000, 5.0000,-1,-8
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:516,520,512, 50.0000,55.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :50.0000, 5.0000,-4,-8
 [2017-11-24 11:27:14] inno_fan_temp_add:chain_0,chip_1,temp:52.5000(516)
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:516,520,512, 50.0000,55.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :50.0000, 5.0000,-4,-8
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:535,535,527, 40.0000,45.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :40.0000, 5.0000,0,-8
 [2017-11-24 11:27:14] inno_fan_temp_add:chain_0,chip_2,temp:40.0000(535)
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:535,535,527, 40.0000,45.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :40.0000, 5.0000,0,-8
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:530,535,527, 40.0000,45.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :40.0000, 5.0000,-5,-8
 [2017-11-24 11:27:14] inno_fan_temp_add:chain_0,chip_3,temp:43.1250(530)
 [2017-11-24 11:27:14] inno_fan_temp_to_float: temp:530,535,527, 40.0000,45.0000
 [2017-11-24 11:27:14] inno_fan_temp_to_float: :40.0000, 5.0000,-5,-8
crc:9821,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 5 -> disabling
 [2017-11-24 11:27:14] init_ReadTemp...
 [2017-11-24 11:27:14] 0: A1 init chain reload
 [2017-11-24 11:27:14] send command [bist_start]

 [2017-11-24 11:27:14] spi_send_command,147

 [2017-11-24 11:27:14] spi_send_data,126

 [2017-11-24 11:27:14] [reload]0: detected 33 chips
send command [bist_collect]
 [2017-11-24 11:27:14] spi_send_command,147

 [2017-11-24 11:27:14] spi_send_data,126

 [2017-11-24 11:27:14] collect core success
 [2017-11-24 11:27:14] 0:  A1 chip-chain detected
 [2017-11-24 11:27:14] spidev0.0: 0: Found 33 A1 chips
 [2017-11-24 11:27:14] send command [bist_fix]

 [2017-11-24 11:27:14] spi_send_command,147

 [2017-11-24 11:27:14] spi_send_data,126

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
crc:a052,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 1 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 2 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 3 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 4 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 5 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 6 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 7 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 8 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 9 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 10 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 11 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 12 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 13 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 14 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 15 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 16 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 17 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 18 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 19 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 20 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 21 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 22 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 23 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 24 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 25 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 26 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 27 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 28 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 29 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 30 -> disabling
crc:a702,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 31 -> disabling
crc:6004,0
 [2017-11-24 11:27:14] 0: Failed to read register for chip 32 -> disabling
 [2017-11-24 11:27:14] 0: Failed to read register for chip 33 -> disabling
crc:6602,0
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:14] cmd write reg: poll fail !
 [2017-11-24 11:27:14] send command [write_reg]

 [2017-11-24 11:27:15] cmd write reg: poll fail !
 [2017-11-24 11:27:15] send command [write_reg]

 [2017-11-24 11:27:15] cmd write reg: poll fail !
 [2017-11-24 11:27:15] send command [write_reg]

 [2017-11-24 11:27:15] cmd write reg: poll fail !
 [2017-11-24 11:27:15] send command [write_reg]

 [2017-11-24 11:27:15] cmd write reg: poll fail !
 [2017-11-24 11:27:15] 0: Failed to read register for chip 1 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_4,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_5,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 2 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_5,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_6,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 3 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_6,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_7,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 4 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_7,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_8,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 5 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_8,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_9,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 6 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_9,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_10,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 7 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_10,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_11,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 8 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_11,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_12,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 9 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_12,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_13,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 10 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_13,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_14,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 11 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_14,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_15,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 12 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_15,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_16,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 13 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_16,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_17,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 14 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_17,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_18,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 15 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_18,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_19,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 16 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_19,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_20,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 17 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_20,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_21,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 18 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_21,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_22,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 19 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_22,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_23,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 20 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_23,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_24,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 21 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_24,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_25,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 22 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_25,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_26,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 23 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_26,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_27,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 24 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_27,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_28,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 25 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_28,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_29,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 26 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_29,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_30,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 27 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_30,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_31,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 28 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_31,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_32,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 29 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_32,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_33,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 30 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_33,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_34,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 31 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_34,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_35,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 32 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_35,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_36,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] 0: Failed to read register for chip 33 -> disabling
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_36,temp:9999.0000(0)
 [2017-11-24 11:27:15] inno_fan_temp_add:chain_0,chip_37,temp:9999.0000(0) is too high!

 [2017-11-24 11:27:15] not sort:
 [2017-11-24 11:27:15] chip_0:00000207(519)
 [2017-11-24 11:27:15] chip_1:00000204(516)
 [2017-11-24 11:27:15] chip_2:00000217(535)
 [2017-11-24 11:27:15] chip_3:00000212(530)
 [2017-11-24 11:27:15] chip_4:00000000(0)
 [2017-11-24 11:27:15] chip_5:00000000(0)
 [2017-11-24 11:27:15] chip_6:00000000(0)
 [2017-11-24 11:27:15] chip_7:00000000(0)
 [2017-11-24 11:27:15] chip_8:00000000(0)
 [2017-11-24 11:27:15] chip_9:00000000(0)
 [2017-11-24 11:27:15] chip_10:00000000(0)
 [2017-11-24 11:27:15] chip_11:00000000(0)
 [2017-11-24 11:27:15] chip_12:00000000(0)
 [2017-11-24 11:27:15] chip_13:00000000(0)
 [2017-11-24 11:27:15] chip_14:00000000(0)
 [2017-11-24 11:27:15] chip_15:00000000(0)
 [2017-11-24 11:27:15] chip_16:00000000(0)
 [2017-11-24 11:27:15] chip_17:00000000(0)
 [2017-11-24 11:27:15] chip_18:00000000(0)
 [2017-11-24 11:27:15] chip_19:00000000(0)
 [2017-11-24 11:27:15] chip_20:00000000(0)
 [2017-11-24 11:27:15] chip_21:00000000(0)
 [2017-11-24 11:27:15] chip_22:00000000(0)
 [2017-11-24 11:27:15] chip_23:00000000(0)
 [2017-11-24 11:27:15] chip_24:00000000(0)
 [2017-11-24 11:27:15] chip_25:00000000(0)
 [2017-11-24 11:27:15] chip_26:00000000(0)
 [2017-11-24 11:27:15] chip_27:00000000(0)
 [2017-11-24 11:27:15] chip_28:00000000(0)
 [2017-11-24 11:27:15] chip_29:00000000(0)
 [2017-11-24 11:27:15] chip_30:00000000(0)
 [2017-11-24 11:27:15] chip_31:00000000(0)
 [2017-11-24 11:27:15] chip_32:00000000(0)
 [2017-11-24 11:27:15] chip_33:00000000(0)
 [2017-11-24 11:27:15] chip_34:00000000(0)
 [2017-11-24 11:27:15] chip_35:00000000(0)
 [2017-11-24 11:27:15] chip_36:00000000(0)
 [2017-11-24 11:27:15] sorted:
 [2017-11-24 11:27:15] chip_0:00000000(0)
 [2017-11-24 11:27:15] chip_1:00000000(0)
 [2017-11-24 11:27:15] chip_2:00000000(0)
 [2017-11-24 11:27:15] chip_3:00000000(0)
 [2017-11-24 11:27:15] chip_4:00000000(0)
 [2017-11-24 11:27:15] chip_5:00000000(0)
 [2017-11-24 11:27:15] chip_6:00000000(0)
 [2017-11-24 11:27:15] chip_7:00000000(0)
 [2017-11-24 11:27:15] chip_8:00000000(0)
 [2017-11-24 11:27:15] chip_9:00000000(0)
 [2017-11-24 11:27:15] chip_10:00000000(0)
 [2017-11-24 11:27:15] chip_11:00000000(0)
 [2017-11-24 11:27:15] chip_12:00000000(0)
 [2017-11-24 11:27:15] chip_13:00000000(0)
 [2017-11-24 11:27:15] chip_14:00000000(0)
 [2017-11-24 11:27:15] chip_15:00000000(0)
 [2017-11-24 11:27:15] chip_16:00000000(0)
 [2017-11-24 11:27:15] chip_17:00000000(0)
 [2017-11-24 11:27:15] chip_18:00000000(0)
 [2017-11-24 11:27:15] chip_19:00000000(0)
 [2017-11-24 11:27:15] chip_20:00000000(0)
 [2017-11-24 11:27:15] chip_21:00000000(0)
 [2017-11-24 11:27:15] chip_22:00000000(0)
 [2017-11-24 11:27:15] chip_23:00000000(0)
 [2017-11-24 11:27:15] chip_24:00000000(0)
 [2017-11-24 11:27:15] chip_25:00000000(0)
 [2017-11-24 11:27:15] chip_26:00000000(0)
 [2017-11-24 11:27:15] chip_27:00000000(0)
 [2017-11-24 11:27:15] chip_28:00000000(0)
 [2017-11-24 11:27:15] chip_29:00000000(0)
 [2017-11-24 11:27:15] chip_30:00000000(0)
 [2017-11-24 11:27:15] chip_31:00000000(0)
 [2017-11-24 11:27:15] chip_32:00000000(0)
 [2017-11-24 11:27:15] chip_33:00000204(516)
 [2017-11-24 11:27:15] chip_34:00000207(519)
 [2017-11-24 11:27:15] chip_35:00000212(530)
 [2017-11-24 11:27:15] chip_36:00000217(535)
 [2017-11-24 11:27:15] sort end.
 [2017-11-24 11:27:15] inno_fan_temp_get_arvarge, chain_id:0, temp nums:37, valid index[1,36], reseult:9999.0000(44).

 [2017-11-24 11:27:15] [chain_ID:0]: Found 33 Chips With Total 0 Active Cores
 [2017-11-24 11:27:15] [chain_ID]: Temp:0

 [2017-11-24 11:27:15] Notice Chain 0 temp:0 Maybe Has Some Problem in Temperate

Thank you for your support. Any problem for after-sales you can send email to miner_support@innosilicon.com.cn We will try our best to help you asap. Thank you.

[Inno_ASIC]

Hi gvsrusa,

No reply from innosilicon despite sending them diagnostic logs from the bad A5.

The logs suggest it's a temperature problem (board is too hot so gets disabled?)

I've had a few thoughts - the cooling on the A5 seems to be a huge wind tunnel.

Big fans at each end and the boards hang down vertically in this tunnel.

I'm guessing this is their cheap-ass solution to cooling them rather than putting proper heatsink/fans on each ASIC.

I'd have to void the warranty to open it up but I'm considering putting heatsinks on the ASIC chips to see if I can get them cooler.

Cheers,

FB

Thank you for your feedback. Any problem for technical problem you can send email or add Skype miner_support@innosilicon.com.cn We will try our best to help you asap. Thank you.

[Inno_ASIC]

No light on 1 of the ASIC boards. Tried swapping cables and always this board that fails.

Thank you for your feedback. Any problem for technical problem you can send email or add Skype miner_support@innosilicon.com.cn We will try our best to help you asap. Thank you.

[Inno_ASIC]

They shipped my miner without an SD Card slot and their software won't flash through their management pages.

Does anyone know where I can find their local host server on the miner it self? If I can do that I can probably manually execute the firmware update code through telnet.

Thank you for your feedback. Any problem for technical problem you can send email or add Skype miner_support@innosilicon.com.cn We will try our best to help you asap. Thank you.

[Inno_ASIC]

Dear customers,

Thanks for your feedback about A5 miner.

We have been upgrading our firmware for more stable and efficient performance of Inno miners.
More info please go to Innosilicon Support Centre at:  http://www.innosilicon.com/html/downA4/ when you meet problems.

If upgrading the firmware cannot solve your problem, please send the details in email to miner_support@innosilicon.com.cn or add Skype(same with the support address).
We will get back to you asap. Thank you.

Thanks for your valuable comments; we will continuously improve our service in the future. Looking forward to bring you the excellent customer exprience in the future!
