Author Topic: Building a Better Flashlight  (Read 728 times)
sidehack
Legendary
*
Online Online

Activity: 2954
Merit: 1690

Curmudgeonly hardware guy


View Profile
February 25, 2020, 02:34:12 AM
Merited by suchmoon (7), frodocooper (5), OgNasty (4), NotFuzzyWarm (4), philipma1957 (3), 419mining (3)
 #1

Hey guys. I'm sidehack. Haven't ventured over here before; I have lived in the Hardware section for the last seven years or so.

My small electronics company is probably known for being one of the first to make server supply breakout boards, and one of the last to still make non-industrial miners. All my products are designed and built in-house in USA, including parts population, metalwork and machining.

I spent some time end of last year thinking about LED lighting and cooked up some custom fixtures for the new shop I spent last summer and fall building. That got me thinking about an old and largely unsatisfied desire for a durable non-stupid LED flashlight. Around 2012 or 2013 I spent a fair amount of time trying to find a single-cell 18650 flashlight, pocket-sized (which means no big goofy head), with about 200lm nominal output, simple modeless on/off, in a durable aluminum housing, with adjustable optics and no jagged edges. Found exactly one product that met all my specs so I bought two of them. One burned out and the other was stolen. I have found a few places somewhere in the world listing it for sale but I'm not convinced new ones have been manufactured since about 2013.



I had, before finding that one, settled on a different light that met most of my specs. Single-cell 18650, pocket-sized, about 200lm nominal output, simple modeless on/off, in a durable aluminum housing, but a fixed reflector and jagged edges on the head. Still, that's pretty good.



My biggest beefs with the mass of already-available "tactical" form-factor LED flashlights center around all the annoying strobe multi-modes and that they've always got those sharp-cornered protrusions around the lens which are just asking to scratch every available surface and wear holes in your pocket fabric. I really REALLY don't want either of these features and yet they appear to be essential.

So fast-forward 8 years. None of the electronics still work entirely but I have the complete housings. I also have a lot more design experience and some electronics assembly equipment. Maybe instead of spending time trying to find a flashlight that someone else built which meets my apparently very unique requirements, I should build it myself. And then perfect it and make it available to anyone else who also wants one.

Regarding housings

The first (and better) housing, the C84, the "pill" is aluminum and threads into the main housing, meaning lots of solid contact for heat dispersal. The head is lensed and slides to adjust the beam width. It's pretty nice. Unfortunately I have yet to locate anything even comfortably equivalent on the market so acquiring something equivalent might have to be a custom job.

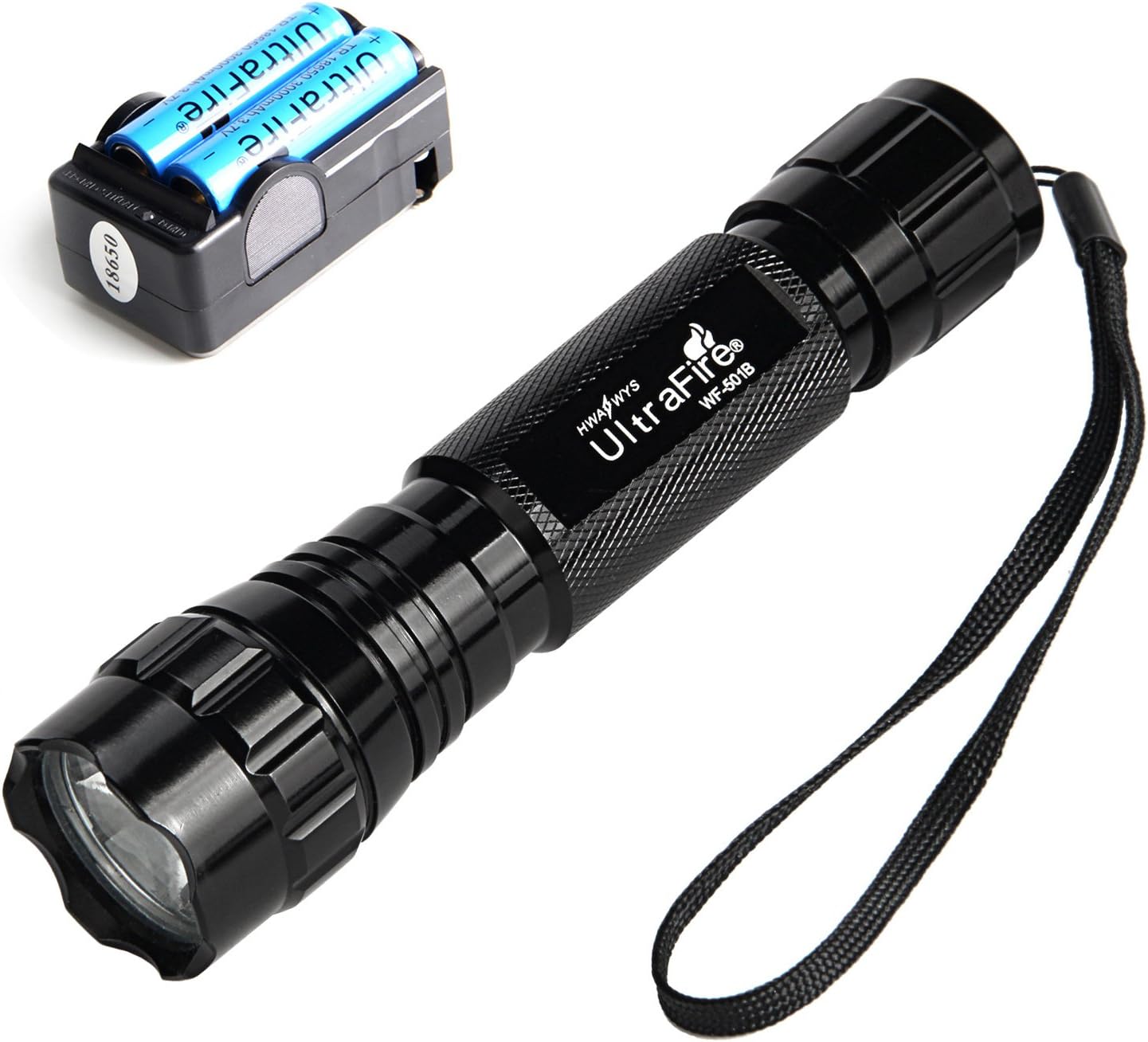

The second light, the 501b, has a fixed orange-peel parabolic reflector for a fixed-spread beam. The "pill" is brass and mounts on beefy spring contacts which are great for grounding but not as great for shunting heat into the case. I already know I can get those housings and the mechanical innards in bulk from a Chinese manufacturer for not a bad price. They're kind of a "generic" design apparently because I've seen a lot of different brandings of the same thing. Chinese sourcing is less than ideal since I prefer to do as much American business as I can, but this project is just getting started.

If possible I would like to request custom machining of the 501b lens end to make it a smooth ring and get rid of the half-dozen fingers. Something like that might be negotiated for batch orders of sufficient size. I already know they'll do custom logos.

Regarding electroncs

The standard driver board for LED flashlights is a 17mm circle that fits inside a milled billet, aluminum for the C84 and brass in the 501b. Bottom side of the board will have a spring contact for the hot terminal of the battery; bare contacts or castellated holes around the circumference conduct ground to the billet, which grounds through the button to the battery's negative terminal. The LED is mounted on a separate board adhered to the other side of the billet, which serves as a heatsink. Wires run from the LED disc through a hole drilled in the billet and are soldered onto contacts on the driver board.

I currently have two LED options to play with: CREE XM-L2 U2 5mm lensed LEDs which can handle a practical maximum of 3A and put out in the neighborhood of 400lm per amp (300lm/700mA, 500lm/1250mA, 840lm/2500mA) and some baby CREE JB3030 3mm unlensed with a practical max of 240mA and peak around 120lm.

I have a functional prototype DC buck driver which can work from the 3-4.2V output of a single lithium-ion 18650 cell. The driver will be built to handle 2.5A through the LED, and internally uses a PFET for the high-side switch which means 100% duty cycle low-dropout mode when the battery is at the bottom end of discharge - that is, the light will get dimmer rather than turning off when the battery starts to die.

The driver is designed with a microcontroller to continuously monitor LED current draw and adjust the buck driver's output voltage to reach and maintain target current (which means target brightness) as conditions like battery voltage and LED temperature change. The software is coded to do a soft-start rampup which brings the light from "off" to full brightness in no more than about 50 milliseconds. What this means is the brightness can be set in software, by giving the calibration routine a particular current setpoint to target for. The flashlight, then, can be configured for different brightness from around 50lm (brightness can be unstable/jittery at low currents due to circuit optimization for high currents) to 800lm without modifying hardware.

The microcontroller is wired such that it can monitor battery voltage and turn the light off completely if the battery reaches a certain state of depletion, preventing harmful deep discharges. I have not done this; just noting that it's possible.

Regarding modes

Now I've stated pretty clearly that I hate multi-mode. I don't want all the BS of accidentally cycling into some dumbass strobe when I'm trying to look at something. Just want on and off.

However, multi-mode wouldn't be found in almost literally 100% of existing products if it wasn't, for some reason, a popular feature.

The driver I'm building is designed, therefore, to allow multi-mode capability in software.

Mode switching happens by pressing the power button quickly. What this does is actually power-cycle the LED driver circuit. There is no extra contact for half-presses or anything, it's just a quick power-cycle because the switch doesn't latch off. The driver circuit is designed to notice a short-duration cycle and, upon returning to power, advance to the next mode. My driver will be capable of doing this, and I'll probably write a basic program to implement cycling through brightness modes (2-mode low/high) and one with a strobe routine to test out setting up timers and the best means of rapidly cycling the LED.

I will probably put the mode-switch timeout as pretty low, down around 500 milliseconds. This should reduce the chances of accidentally jumping into another mode by turning the flashlight fully off and then turning it back on very quickly. There will be no long-term memory; once the timeout has expired, it'll default to initial mode. And since it's a software thing, this timeout will be adjustable.

Regarding software

You'll notice a common theme here: the hardware is built to be robust, with a lot of the flexibility and feature set implemented in software. This is deliberate. It would allow me to easily customize batches of flashlights for particular orders, and allow me to "stock" generic option sets as different sub-models by simply flashing the driver board with the right hex file before testing and packing. But it also, quite deliberately, puts a lot of power in the hands of the end user. Makes the product quite hackable without having to do any "pencil-modding" or desoldering.

In fact, I'm even putting test points on the underside of the driver board which can be wired to a PICKit for updating the firmware in-system.

I have only implemented software on a test board using a similar microcontroller so I can't guarantee anything at this time, but the driver board is currently designed to use a PIC12F1571 microcontroller. Current is monitored using an ADC measuring the output of a low-side current sense amplifier and adjusted by changing a PWM output's duty cycle. Right now current is measured and calibrated every 2 milliseconds.

Options

A bit of discussion on this subject happened in another thread elsewhere, so since it was way off topic we all decided it'd be better to start a specific thread just for flashlight development discussion. Over there the idea came up to make one specifically with a low brightness for use indoors at night. With that in mind, I figured out a fairly simple way to modify my driver board, by replacing only 2 or 3 parts, to operate at 0-250mA instead of 0-2500mA, adjust the current sense amplifier's gain, and operate using the smaller LED for a peak-120lm flashlight without any changes to software.

So probably what I'd do is stock both versions of the driver board, and LED discs for both diodes, and then both the 501b and eventually C84-equivalent housing. With a few different stock softwares to flash, I can offer a large variety of stock "models".

501b housing, XML2:
ZeroBS High (300lm, on/off)
SomeBS High (150lm, 300lm, 2-mode)
AllBS High (150lm, 300lm, strobe, 3-mode)

501b housing, JB3030:
ZeroBS Low (50lm, on/off)
SomeBS Low (50lm, 100lm, 2-mode)
AllBS Low (50lm, 100lm, strobe, 3-mode)

C84 housing, XML2:
ZeroBS Zoom High (300lm, on/off)
SomeBS Zoom High (150lm, 300lm, 2-mode)
AllBS Zoom High (150lm, 300lm, strobe 3-mode)

C84 housing, JB3030:
ZeroBS Zoom Low (50lm, on/off)
SomeBS Zoom Low (50lm, 100lm, 2-mode)
AllBS Zoom Low (50lm, 100lm, strobe, 3-mode)


The names indicate the level of BS you'll have to put up with in stock configuration. I'll always prefer the ZeroBS, though SomeBS high/low modeswitching is not unattractive. Might consider, if demand is high enough, doing a MaxBS version comparable to readily available 5-mode lights, which implement three brightness modes, strobe and SOS.

Charging

It's also been mentioned that I should build a battery charger. That'll be something to look into for sure, but I make no guarantees. Very likely what I would do is a USB-powered charger. A lot of USB ports now are good for 2A output, and everyone and their mothers have those little plug-in USB power adapters that probably also run 2A. I build a pretty solid USB hub that can put up 3A per port without trouble. 1A is a good charge rate for a single 18650 cell, which means a 2A-capable USB port could source a 2-cell charger. The charge curve for a lithium cell is pretty easy; constant current until peak voltage (4.2V) is reached, and then constant voltage until current flow is 3% of initial charge rate, then stop. No floating charge required, since that can actually damage the cells. Overvoltage can't be tolerated, so that 4.2V peak has to be measured within 1%, ideally even tighter. And add in a temperature sensor to make sure the cell doesn't overheat, which can indicate damage.

The same kind of current-measurement and dynamic voltage adjustment system used in the flashlight driver could also be used in the battery charger. Start low and ramp up the voltage to reach 1A continuous, then maintain 1A continuous until it reaches 4.2V, at which point the calibration switches to keying off voltage with current monitoring continuing in the background. Turn off the power entirely once current drops to 30mA. Poll a temp sensor on the I2C bus frequently to check for overheat conditions and lock it down when safety thresholds are hit.

The electronics and the program aren't really a problem. The fun will be designing the housing to put it in and making sure it's something I have the tools to efficiently manufacture in bulk.

end of presentation


So, that's most of what I've got and a couple tidbits of other people's input already bundled up and considered. Anyone else got any input?

Cool, quiet and up to 1TH pod miner, on sale now!
Currently in development - 200+GH USB stick; 6TH volt-adjustable S1/3/5 upgrade kit
Server PSU interface boards and cables. USB and small-scale miners. Hardware hosting, advice and odd-jobs. Supporting the home miner community since 2013 - http://www.gekkoscience.com
1657068811
Hero Member
*
Offline Offline

Posts: 1657068811

View Profile Personal Message (Offline)

Ignore
1657068811
Reply with quote  #2

1657068811
Report to moderator
Advertised sites are not endorsed by the Bitcoin Forum. They may be unsafe, untrustworthy, or illegal in your jurisdiction. Advertise here.
MoparMiningLLC
aka Stryfe
Legendary
*
Online Online

Activity: 1400
Merit: 1379


EIN: 82-3893490


View Profile WWW
February 25, 2020, 04:13:15 AM
 #2

I'll take 2 but without any type of low mode or strobe. just full on zerobs High

Mine BTC @ kano.is Offering escrow services https://bitcointalk.org/index.php?topic=5154480
Need a hardware wallet? Get your own Ballet Wallet here! BalletCrypto.com use code "MMLLC5OFF" for 5% off --- Use this link and receive a discount at Satochip.io --- Use code MOPARMINING10 for discount at Tangem.com
NotFuzzyWarm
Legendary
*
Offline Offline

Activity: 2954
Merit: 2013


Evil beware: We have waffles!


View Profile
February 25, 2020, 02:22:45 PM
 #3

Love it and definitely interested in a couple as well, no strobe but just lo/hi modes.

- For bitcoin to succeed the community must police itself -    My info useful? Donations welcome! 1FuzzyWc2J8TMqeUQZ8yjE43Rwr7K3cxs9
How a miner mfgr SHOULD operate:  HagssFIN trip to Canaan
-Support Sidehacks miner development. Donations to:   1BURGERAXHH6Yi6LRybRJK7ybEm5m5HwTr
nuanicaj
Member
**
Offline Offline

Activity: 178
Merit: 12


View Profile
February 25, 2020, 03:58:40 PM
 #4

I would take one powerful one.  thanks for your hard work on projects.
Artemis3
Legendary
*
Offline Offline

Activity: 1400
Merit: 1250


CLEAN non GPL infringing code made in Rust lang


View Profile WWW
February 26, 2020, 02:10:01 AM
Last edit: February 26, 2020, 02:24:05 AM by Artemis3
 #5

It's also been mentioned that I should build a battery charger. That'll be something to look into for sure, but I make no guarantees. Very likely what I would do is a USB-powered charger. A lot of USB ports now are good for 2A output, and everyone and their mothers have those little plug-in USB power adapters that probably also run 2A. I build a pretty solid USB hub that can put up 3A per port without trouble. 1A is a good charge rate for a single 18650 cell, which means a 2A-capable USB port could source a 2-cell charger. The charge curve for a lithium cell is pretty easy; constant current until peak voltage (4.2V) is reached, and then constant voltage until current flow is 3% of initial charge rate, then stop. No floating charge required, since that can actually damage the cells. Overvoltage can't be tolerated, so that 4.2V peak has to be measured within 1%, ideally even tighter. And add in a temperature sensor to make sure the cell doesn't overheat, which can indicate damage.

The same kind of current-measurement and dynamic voltage adjustment system used in the flashlight driver could also be used in the battery charger. Start low and ramp up the voltage to reach 1A continuous, then maintain 1A continuous until it reaches 4.2V, at which point the calibration switches to keying off voltage with current monitoring continuing in the background. Turn off the power entirely once current drops to 30mA. Poll a temp sensor on the I2C bus frequently to check for overheat conditions and lock it down when safety thresholds are hit.

Remember that if you charge your Li-ion batteries to about 80% they have a longer lifetime than if they were charged at full capacity. So consider that for your charging strategy. Many laptops and even certain electric car brand use this trick so the batteries can be used more years.

██████
███████
███████
████████
BRAIINS OS+|AUTOTUNING
MINING FIRMWARE
|
Increase hashrate on your Bitcoin ASICs,
improve efficiency as much as 25%, and
get 0% pool fees on Slush Pool
sidehack
Legendary
*
Online Online

Activity: 2954
Merit: 1690

Curmudgeonly hardware guy


View Profile
February 26, 2020, 03:07:42 AM
 #6

Electric cars do it because the average trip distance is only 30 miles so reduced capacity is usually acceptable but the sooner you have to replace the cell, the worse because they're very expensive. Additionally, the last 15-20% of charge takes about as much time as the first 80% so squeezing in the last drops will double your wait time.

I considered a partial charger versus full charger and figured that, for something like a single-cell flashlight, people would tend to prioritize battery life over battery life-cycle. Replacement cells are not expensive, but everyone hates a dead battery in a flashlight.

I had already considered putting, say, a jumper or switch on the charger to change modes from full charge to 85% charge for people who would rather extend battery cycle life. Since current and voltage are software-controlled it'd be pretty easy to implement and add almost zero hardware cost.

Thanks for the input. I was just about to say, I tried to make the writeup as thorough as possible but nothing is set in stone. I came here to talk about it specifically to get that kind of feedback, and see if there was anything I could do better.

Cool, quiet and up to 1TH pod miner, on sale now!
Currently in development - 200+GH USB stick; 6TH volt-adjustable S1/3/5 upgrade kit
Server PSU interface boards and cables. USB and small-scale miners. Hardware hosting, advice and odd-jobs. Supporting the home miner community since 2013 - http://www.gekkoscience.com
philipma1957
Legendary
*
Offline Offline

Activity: 3444
Merit: 4493



View Profile
February 26, 2020, 03:41:05 PM
 #7

2 low powered and 1 high powered.

Let me know  when to pay for them.

I see BTC as the super highway and alt coins as taxis and trucks needed to move transactions.
sidehack
Legendary
*
Online Online

Activity: 2954
Merit: 1690

Curmudgeonly hardware guy


View Profile
February 26, 2020, 03:52:39 PM
 #8

I'd rather send you something to play with first and test it out, see if it's any good. The first proper prototype PCBs won't be here until next week and I have only one of each housing so it could be a couple months before there's a purchasable product. This thread is describing what I've already done and what I intend to do, and a request for comments to try and make it better.

Cool, quiet and up to 1TH pod miner, on sale now!
Currently in development - 200+GH USB stick; 6TH volt-adjustable S1/3/5 upgrade kit
Server PSU interface boards and cables. USB and small-scale miners. Hardware hosting, advice and odd-jobs. Supporting the home miner community since 2013 - http://www.gekkoscience.com
MoparMiningLLC
aka Stryfe
Legendary
*
Online Online

Activity: 1400
Merit: 1379


EIN: 82-3893490


View Profile WWW
February 26, 2020, 05:15:03 PM
 #9

put me in line to purchase as well

Mine BTC @ kano.is Offering escrow services https://bitcointalk.org/index.php?topic=5154480
Need a hardware wallet? Get your own Ballet Wallet here! BalletCrypto.com use code "MMLLC5OFF" for 5% off --- Use this link and receive a discount at Satochip.io --- Use code MOPARMINING10 for discount at Tangem.com
sidehack
Legendary
*
Online Online

Activity: 2954
Merit: 1690

Curmudgeonly hardware guy


View Profile
February 27, 2020, 02:54:05 AM
 #10

Might have to do some work with a buck-boost driver instead of just a straight buck driver, at some point. Since the LED and current resistor are expected to drop around 3.2V at full current, but the battery can run down to around 2.7V, a buck-boost driver would be able to keep the LED voltage high (maintaining brightness) even when the battery voltage slid low. I'm reading up on a part from Texas Instruments that might do the trick and would still allow 2.5A of LED current at the top end, though it might have to be reduced to 2A at the bottom of the battery charge since input currents to the driver are limited and Pin=Pout. But since the micro is capable of monitoring battery voltage, that could be implemented in software, and then we could set a minimum cell voltage where the LED is disabled. In that way it'd behave like modern lithium-battery power tools, where they work and work and then just turn off instead of winding down. Total system efficiency would be a few percent worse than a straight buck driver, but it'd allow better utilization of the bottom end of the discharge cycle and maintain brightness longer.

Course, going that route would mean completely redesigning and prototyping everything. Software would require minimal changes, but hardware would be completely different. The pin pitch on the chip is too small for me to readily prototype with the tools I have available right now but it's within the realm of what we've done here before, I just have to find the rest of the equipment.

Cool, quiet and up to 1TH pod miner, on sale now!
Currently in development - 200+GH USB stick; 6TH volt-adjustable S1/3/5 upgrade kit
Server PSU interface boards and cables. USB and small-scale miners. Hardware hosting, advice and odd-jobs. Supporting the home miner community since 2013 - http://www.gekkoscience.com
sidehack
Legendary
*
Online Online

Activity: 2954
Merit: 1690

Curmudgeonly hardware guy


View Profile
March 06, 2020, 08:31:33 PM
 #11


Thinking about picking up some of these for the basic non-zoom version. It looks to fit my liking better than the 501b body I already have to play with; this one takes the same kind of drop-in but doesn't have any of those annoying sharp edges.



One issue with that drop-in module is heat dissipation. The flashlight body is aluminum so should be good for heat conduction, but because of how things are mounted internally there isn't a lot of contact for conduction. In the old incandescent-bulb flashlights, this was a feature, but for LEDs it becomes a problem. With that in mind, it'd be difficult slash potentially unsafe to operate at the top end of the power range without making some modifications to increase heat transfer into the flashlight body. Something like a 500lm/1.3A setting I imagine should be fine, but the 2.5A top-end won't be practical for more than a minute or so.

The microcontroller has an internal temperature sensor so I might code in a thermal limiter that ramps down current or turns it off completely above certain temperature thresholds.

Also, prototype PCBs have finally shipped and should be here on Monday so I can start proper testing.

Cool, quiet and up to 1TH pod miner, on sale now!
Currently in development - 200+GH USB stick; 6TH volt-adjustable S1/3/5 upgrade kit
Server PSU interface boards and cables. USB and small-scale miners. Hardware hosting, advice and odd-jobs. Supporting the home miner community since 2013 - http://www.gekkoscience.com
hurricandave
Legendary
*
Offline Offline

Activity: 966
Merit: 1003



View Profile
March 07, 2020, 01:20:17 AM
 #12

I'm not at the right computer for now but Amazon has some "Dive" lights, I think for underwater photography maybe, but they have USB chargers included. I only bring that up because they look pretty generic and readily available if your light has the same battery. It might give you some info on other Bodies available that you just didn't know were out there too. I'll try to add a picture later.
sidehack
Legendary
*
Online Online

Activity: 2954
Merit: 1690

Curmudgeonly hardware guy


View Profile
March 07, 2020, 04:30:33 AM
 #13

The company that makes the above light also makes a similar one with zoom. I've got samples on order, should arrive in a week and some so I'll be able to play around with 'em. Prices are pretty reasonable.

Cool, quiet and up to 1TH pod miner, on sale now!
Currently in development - 200+GH USB stick; 6TH volt-adjustable S1/3/5 upgrade kit
Server PSU interface boards and cables. USB and small-scale miners. Hardware hosting, advice and odd-jobs. Supporting the home miner community since 2013 - http://www.gekkoscience.com
gt_addict
Hero Member
*****
Offline Offline

Activity: 2240
Merit: 610


View Profile
April 22, 2020, 07:59:34 PM
 #14

Any developments?

**SUPPORT SIDEHACK** Miner Development Donations to:  1BURGERAXHH6Yi6LRybRJK7ybEm5m5HwTr

Donations/Tips to:-   1GTADDicTXD1uachKKgW24DZDxDGhSMdRa

Join Bitconnect: https://bitconnect.co/?ref=gtaddict
ParaplegicRacehorse
Member
**
Offline Offline

Activity: 79
Merit: 36

HODL. Patience.


View Profile
May 12, 2020, 04:54:43 PM
 #15

Sidehack,

I'm interested.  I'm especially interested if there's a rubberized back end for dental safety.  I often end up with a torch in mouth while I need both hands for a job (when it's quick enough not to justify running for the light-bar.)  I absolutely know I'm not alone in this.  I have been known to dunk my torches in plastic "tool dip" or paint them with liquid electrical "tape."  And I've emptied containers of each when allowing my co-workers to do the same with their torches.
BADecker
Legendary
*
Offline Offline

Activity: 3108
Merit: 1309


View Profile
May 13, 2020, 10:25:40 AM
 #16

Well. We have Bud Light. Why not Flash Light.     Grin

BUDESONIDE essentially cures Covid symptoms in one day to one week >>> https://budesonideworks.com/.
Hydroxychloroquine is being used against Covid with great success >>> https://altcensored.com/watch?v=otRN0X6F81c.
Masks are stupid. Watch the first 5 minutes >>> https://www.bitchute.com/video/rlWESmrijl8Q/.
Don't be afraid to donate Bitcoin. Thank you. >>> 1JDJotyxZLFF8akGCxHeqMkD4YrrTmEAwz
sidehack
Legendary
*
Online Online

Activity: 2954
Merit: 1690

Curmudgeonly hardware guy


View Profile
May 21, 2020, 02:29:15 AM
Merited by 419mining (3), gt_addict (2)
 #17

Oh uh, hey guys. So I finally got some test PCBs in today. Took 2 days to get from China to the depot and 5 days to get from the depot to me. Not impressed.

Anyway, technically, with this I have completed the original scope of the project. I have working right now a zoomable flashlight with a 2A buck driver, meaning it can put up around 720 lumen on max. Prototypes of the driver were tested stable down to 0.5% output, which means around 5 lumen. I have programmed it for 3 brightness modes though the hardware will support anywhere from 1 to 128. It blinks at you when battery voltage goes below 2.8 and turns off below 2.7 so it won't drain your cell. There are no strobe modes though I suppose they're technically still possible.

I have a test board for a 3A version (1000 lumen) that I'll be assembling tomorrow, and I'll also be working on a temperature sensor to make sure that it doesn't overheat the LED or driver while on max. The hardware's in place for testing this, but no code yet.

The scope of the project has grown and I'm also working on some other drivers, high-current buck, buck-boost and boost. Turns out there are multi-die LEDs which run 6V or 12V nominal instead of 3V, and they kick many butts. Additionally even in the hobby/enthusiast space there aren't a lot of decent buck-boost drivers (which have the benefit of maintaining constant brightness even under low battery conditions) with good current handling. Also my cousin and his mechanic friends want a better penlight. So now instead of making one flashlight it turns out I'm making like 8.

All I got right now is black aluminum shells to work with. Nothing rubberized, sorry.

Nothing's quite ready to be mass-produced yet but I'll keep you guys posted. I want to get some of these in local hands for field-testing in the next couple days if I can, but I haven't even started coding the temp sensor checks yet.

Cool, quiet and up to 1TH pod miner, on sale now!
Currently in development - 200+GH USB stick; 6TH volt-adjustable S1/3/5 upgrade kit
Server PSU interface boards and cables. USB and small-scale miners. Hardware hosting, advice and odd-jobs. Supporting the home miner community since 2013 - http://www.gekkoscience.com
klintay
Legendary
*
Offline Offline

Activity: 1762
Merit: 1032


Value will be measured in sats


View Profile WWW
May 28, 2020, 12:16:26 PM
 #18

interest is piqued...please reserve some for me!!!
gt_addict
Hero Member
*****
Offline Offline

Activity: 2240
Merit: 610


View Profile
July 22, 2020, 06:46:04 PM
 #19

Any updates?

**SUPPORT SIDEHACK** Miner Development Donations to:  1BURGERAXHH6Yi6LRybRJK7ybEm5m5HwTr

Donations/Tips to:-   1GTADDicTXD1uachKKgW24DZDxDGhSMdRa

Join Bitconnect: https://bitconnect.co/?ref=gtaddict
sidehack
Legendary
*
Online Online

Activity: 2954
Merit: 1690

Curmudgeonly hardware guy


View Profile
July 22, 2020, 06:51:46 PM
 #20

Got a boost driver that'll put up about 30 watts, and I need to test the buck-boost because I like the idea of the light not getting dimmer as the battery goes down. Got a zoom housing that's pretty nice, and I have samples of a fixed reflector housing that should be good for handling heat but I haven't put a light into it yet. Been too hot here to do more than the bare minimum of work lately but I finally got AC in my workroom yesterday so progress should pick up.

Cool, quiet and up to 1TH pod miner, on sale now!
Currently in development - 200+GH USB stick; 6TH volt-adjustable S1/3/5 upgrade kit
Server PSU interface boards and cables. USB and small-scale miners. Hardware hosting, advice and odd-jobs. Supporting the home miner community since 2013 - http://www.gekkoscience.com
Pages: [1] 2 »  All
  Print

Jump to:

Powered by MySQL Powered by PHP Powered by SMF 1.1.19 | SMF © 2006-2009, Simple Machines Valid XHTML 1.0! Valid CSS!
