Hi, good morning.
I need a help with something.

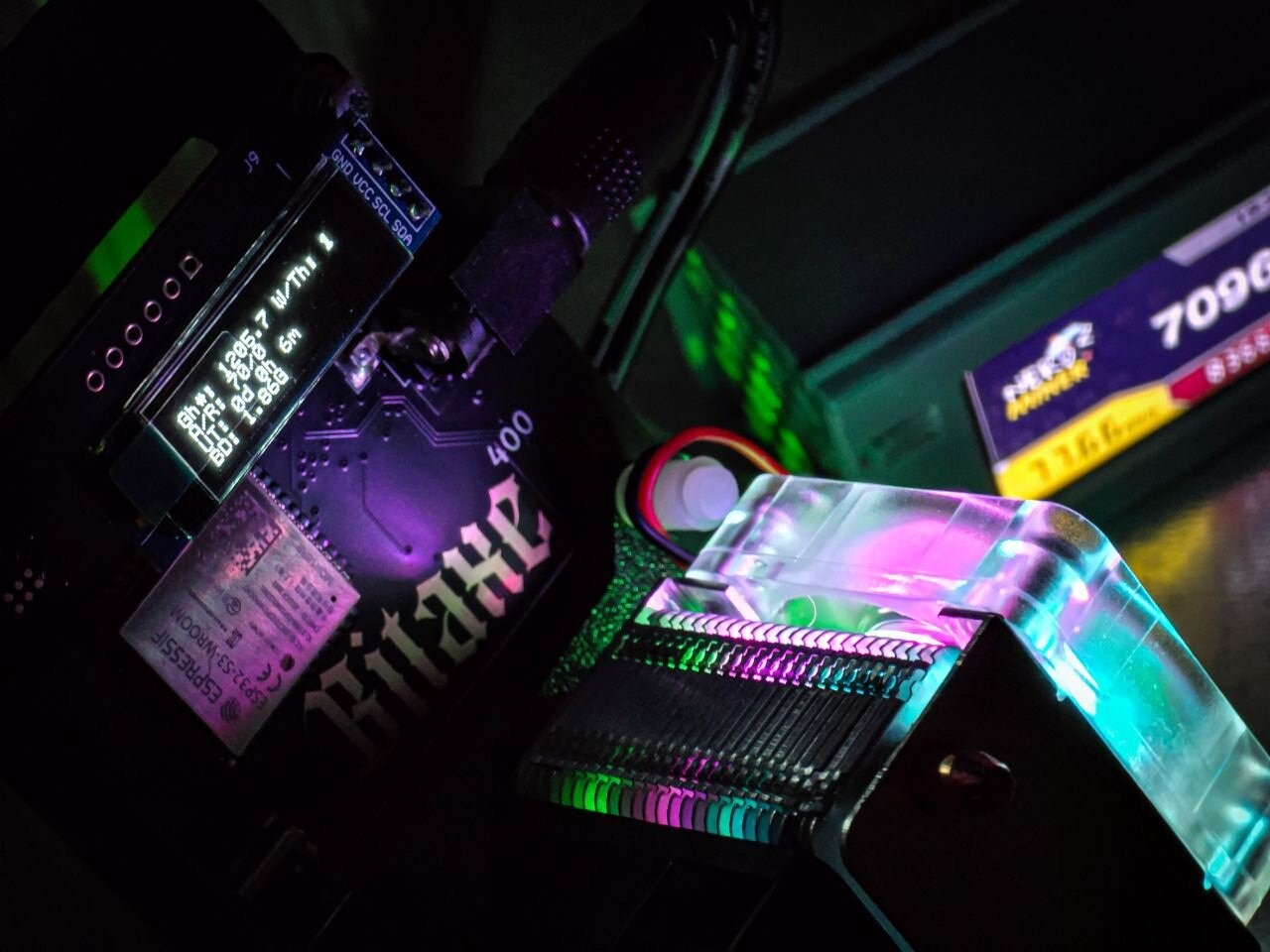

I have a Bitaxe Supra. I have a full node too, and for learning I make a python script that takes block data with "bitcoin-cli getblocktemplate", mount the block and try to mine this block.
So I trying to do samething with my Bitaxe, but, trying/testing how to process the block I get trouble and stuck.
I don't know if I mounting the merkle root in wrong order or what, but the nonce returned is never right.
For tests I get the block 850253:
// Cabeçalho do bloco:
// Versão: 0x20a00000
// Hash do bloco anterior: 0000000000000000000121c6c2fb091c8f23192b23ccb978313a121e673ee94e
// Hash da árvore de Merkle: fab947d4de52402c7b71d64c24ebf9e8912742358b4f841b3edcdf1a62ce5a62
// Timestamp: 0x6682d0fa
// Bits de dificuldade: 0x17035d25
// Nonce: 0x4325613f
// Hash do bloco: 000000000000000000018e6395574b2c177aa0033fb4736bb5a3b6d38a040f41
// Hash do midstate: c6aafbd036459eeb9267395191bed72439bd1724bbf5898355c65a0489f6f01
With dumping the block data I get that prev block hash is in diferent order:
FROM THIS: 00 00 00 00 00 00 00 00 00 01 21 C6 C2 FB 09 1C 8F 23 19 2B 23 CC B9 78 31 3A 12 1E 67 3E E9 4E
TO THIS: 00 00 00 00 00 00 00 00 C6 21 01 00 1C 09 FB C2 2B 19 23 8F 78 B9 CC 23 1E 12 3A 31 4E E9 3E 67
Nonce, bits, timestamp and version I think is ok, but the merkle root I don't know how to calculate from stratum data, so I don't able to compare o dump like i did with prev block hash.
I was thinking about the asic diff or asic mask, but if someone get um hash above current difficult he in fact find the block so I realize that was not the problem, although I don't realy understand how it works (bitmask, verison mask, etc.)
Before someone try me to install a local stratum, I'm not interesting, that will be easy, I just want make it work.
Thankful for your help!
My code:
void test_case(){
uint8_t prev_block_hash_raw[32] = {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x21, 0xc6, 0xc2, 0xfb, 0x09, 0x1c, 0x8f, 0x23, 0x19, 0x2b, 0x23, 0xcc, 0xb9, 0x78, 0x31, 0x3a, 0x12, 0x1e, 0x67, 0x3e, 0xe9, 0x4e};
uint8_t merkle_root_raw[32] = {0xfa, 0xb9, 0x47, 0xd4, 0xde, 0x52, 0x40, 0x2c, 0x7b, 0x71, 0xd6, 0x4c, 0x24, 0xeb, 0xf9, 0xe8, 0x91, 0x27, 0x42, 0x35, 0x8b, 0x4f, 0x84, 0x1b, 0x3e, 0xdc, 0xdf, 0x1a, 0x62, 0xce, 0x5a, 0x62};
BM1368_job test_job = {
.job_id = 0x10,
.num_midstates = 0x01, // Exemplo, ajuste conforme necessário
// .starting_nonce = {0x3F, 0x61, 0x25, 0x43}, // 0x4325613F → Little-endian
.starting_nonce = {0x01, 0x00, 0x00, 0x00}, // 0x00000001 → Little-endian
.nbits = {0x25, 0x5D, 0x03, 0x17}, // 0x17035D25 → Little-endian
.ntime = {0xFA, 0xD0, 0x82, 0x66}, // 0x6682D0FA → Little-endian
.version = {0x00, 0x00, 0xA0, 0x20}, // 0x20a00000
};
// reverse_bytes(test_job.merkle_root, 32);
memcpy(test_job.prev_block_hash, prev_block_hash_raw, 32);
printf("\nPREV HASH:\t");
hexdump_my(&test_job.prev_block_hash, sizeof(test_job.prev_block_hash));
// reverse_bytes(test_job.prev_block_hash, 32);
printf("\nPREV HASH BE:\t");
hexdump_my(&test_job.prev_block_hash, sizeof(test_job.prev_block_hash));
convert_hash_my(prev_block_hash_raw);
// convert_hash_my(merkle_root_raw);
memcpy(test_job.prev_block_hash, prev_block_hash_raw, 32);
memcpy(test_job.merkle_root, merkle_root_raw, 32);
printf("\nPREV HASH V:\t");
hexdump_my(&test_job.prev_block_hash, sizeof(test_job.prev_block_hash));
// uint8_t job_id;
// uint8_t num_midstates;
// uint8_t starting_nonce[4];
// uint8_t nbits[4];
// uint8_t ntime[4];
// uint8_t merkle_root[32];
// uint8_t prev_block_hash[32];
// uint8_t version[4];
// Cabeçalho do bloco:
// Versão: 0x20a00000
// Hash do bloco anterior: 0000000000000000000121c6c2fb091c8f23192b23ccb978313a121e673ee94e
// Hash da árvore de Merkle: fab947d4de52402c7b71d64c24ebf9e8912742358b4f841b3edcdf1a62ce5a62
// Timestamp: 0x6682d0fa
// Bits de dificuldade: 0x17035d25
// Nonce: 0x4325613f
// Hash do bloco: 000000000000000000018e6395574b2c177aa0033fb4736bb5a3b6d38a040f41
// Hash do midstate: c6aafbd036459eeb9267395191bed72439bd1724bbf5898355c65a0489f6f01
// 44fe0174 that response is get by increasing the 'BM1368_ASIC_DIFFICULTY' parameter.
// AA 55 74 01 FE 44 04 29 80 D9 92
printf("\nIH: 1368 JOB CONSTRUIDO\n");
hexdump_my(&test_job, sizeof(test_job));
uint8_t buf[1024];
memset(buf, 0, 1024);
// BM1397_send_work_my(&test_job);
_send_BM1368((TYPE_JOB | GROUP_SINGLE | CMD_WRITE), (uint8_t *)&test_job, sizeof(BM1368_job), BM1368_DEBUG_WORK);
// free_bm_job(test_job.job_id);
// sleep(2);
// wait for a response
int received = SERIAL_rx(buf, 11, BM1368_TIMEOUT_MS);
printf("\nIH: 1368 HEX BUF 1\n");
hexdump_my(&buf, 24);
asic_result nonce;
memcpy((void *)&nonce, buf, sizeof(asic_result));
printf("\nIH: NONCE RECUPERADO\n");
hexdump_my(&nonce, sizeof(nonce));
printf("\nIH: RESULT NONCE: %lx", nonce.nonce);
// Response:
// uint8_t preamble[2];
// uint32_t nonce;
// uint8_t midstate_num;
// uint8_t job_id;
// uint16_t version;
// uint8_t crc;
uint8_t job_id = (nonce.job_id & 0xf0) >> 1;
uint8_t core_id = (uint8_t)((reverse_uint32(nonce.nonce) >> 25) & 0x7f);
uint8_t small_core_id = nonce.job_id & 0x0f;
uint32_t version_bits = (reverse_uint16(nonce.version) << 13);
printf("\nJob ID: %02X, Nonce: %lx, Core: %d/%d, Ver: %08" PRIX32, job_id, nonce.nonce, core_id, small_core_id, version_bits);
vTaskDelete(NULL);
}
