Bitmain T21 190TH Warning code J1:2

[sebymyhay@yahoo.com]

Hello,

My Bitmain T21 190th miner stopped mining and shows a Warning Info:
Warning code J1:2
"Check whether chain1 connection is normal, update the firmware to the latest version, replace the hashboard, or return to factory for repair"

I update the firmware, rebooted several time the miner
the power 3phase is ok (over 226V / Phase)

Does somebody knows how to fix this issue ?

Thank you

[BitMaxz]

Have you tried disconnecting the chain1 and cleaning the terminals with isopropyl alcohol?
If not, try it first since that is what the error says and it seems it detects abnormally; there might be something that interrupts the connection between the control board and chain1 hashboard.

If you can post the whole logs here, we can maybe find the reason that caused this issue. Usually you can find these kernel logs under the system tab.
If you have a limit posting the whole kernel logs here you can use pastebin.com and post the link here.

[sebymyhay@yahoo.com]

I will post the logs in about 15h here.

I did check t he logs and before it started to restart over and over with this warning code i saw that the hash rate decrease to 100th (33 or 37th/ board).

i will check also the boards to see if there is a LED on them and come back with more info

Thank you

[philipma1957]

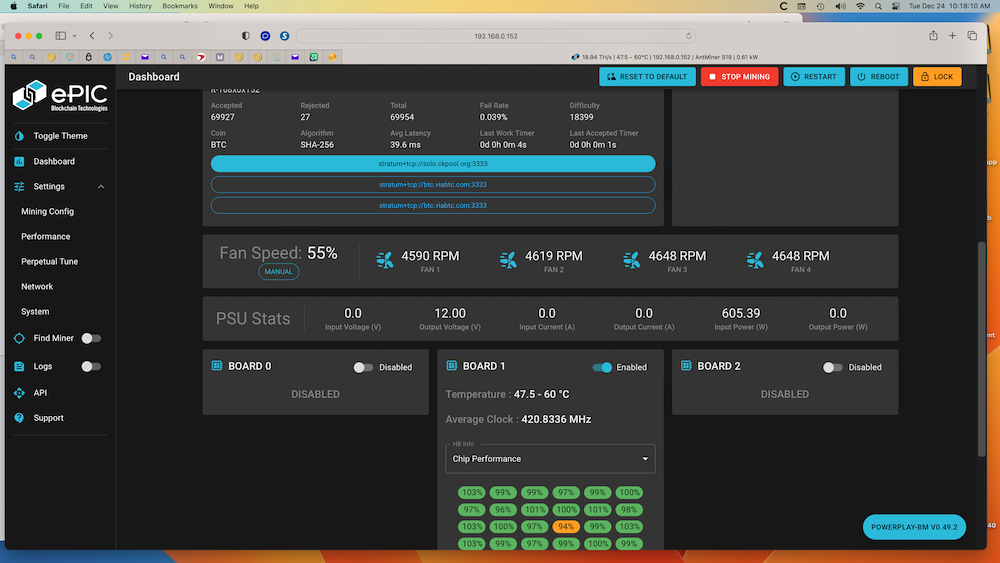

you can try this controller.

https://altairtech.io/product/epic-umc/

it has a lot of features and it will bypass a dead board.

that is if your board is dead.

[sebymyhay@yahoo.com]

I checked the power bard that feed the hashboards and they were 0V

I think that the controller is stopping the power supply to deliver 14v to the hashboards

Here is the Log History:

2024-12-19 10:20:00 Mask num 0x1fffe000
2024-12-19 10:20:00 Note: addrInterval or corenum is not initialized.
2024-12-19 10:20:10 Chain[0]: find 0 asic, times 0
2024-12-19 10:20:15 Chain[0]: find 0 asic, times 1
2024-12-19 10:20:20 Chain[0]: find 0 asic, times 2
2024-12-19 10:20:20 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 10:20:20 Sweep error string = J1:2.
2024-12-19 10:20:20 ERROR_ASIC_NUM: asic number is not right
2024-12-19 10:20:20 stop_mining: asic number is not right
2024-12-19 10:20:20 uninit_temp_info
2024-12-19 10:20:20 do not read temp anymore...
2024-12-19 10:20:20 uninit_asic_temp_vol_info
2024-12-19 10:20:20 do not read asic_temp_vol anymore...
2024-12-19 10:20:20 cancel thread thread_id_rd_nonce_reg
2024-12-19 10:20:20 ****power off hashboard****
2024-12-19 10:20:20 power off
2024-12-19 10:20:20 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 10:20:20 temp monitor thread exit
2024-12-19 10:20:21 ERROR_SOC_INIT: soc init failed!
2024-12-19 10:20:21 reach max restart times
2015-01-01 00:00:15 Open miner sn file /config/mac error
2015-01-01 00:00:15 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2015-01-01 00:00:17 This is fix-freq version
2015-01-01 00:00:17 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2015-01-01 00:00:17 Miner sn: HQDZF2UBDJBBA05ZR
2015-01-01 00:00:17 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2015-01-01 00:00:17 opt_multi_version     = 1
2015-01-01 00:00:17 opt_bitmain_ab        = 1
2015-01-01 00:00:17 mid_auto_gen          = 1
2015-01-01 00:00:17 opt_bitmain_work_mode = 0
2015-01-01 00:00:17 port 439 already exported
2015-01-01 00:00:17 port 454 already exported
2015-01-01 00:00:17 port 440 already exported
2015-01-01 00:00:17 port 455 already exported
2015-01-01 00:00:17 port 441 already exported
2015-01-01 00:00:17 port 456 already exported
2015-01-01 00:00:17 port 438 already exported
2015-01-01 00:00:17 port 453 already exported
2015-01-01 00:00:17 port 446 already exported
2015-01-01 00:00:17 port 445 already exported
2015-01-01 00:00:17 Note: front fan is power on!
2015-01-01 00:00:17 Note: rear fan is power on!
2015-01-01 00:00:17 start the http server
2015-01-01 00:00:17 httpserver:6060 started ok
2015-01-01 00:00:17 get test_loop_securely_find_asic_num failed
2015-01-01 00:00:17 abandon mix board!
2015-01-01 00:00:17 get mix boardname[0][BHB68701], name:BHB68701
2015-01-01 00:00:17 bad chain id = 3
2015-01-01 00:00:20 bad chain id = 3
2015-01-01 00:00:22 power on
2024-12-19 15:42:19 power off
2024-12-19 15:42:20 ==========================capability start==========================
2024-12-19 15:42:20 board num = 3
2024-12-19 15:42:20 board id = 0, chain num = 1
2024-12-19 15:42:20    chain id = 0
2024-12-19 15:42:20 board id = 1, chain num = 1
2024-12-19 15:42:20    chain id = 1
2024-12-19 15:42:20 board id = 2, chain num = 1
2024-12-19 15:42:20    chain id = 2
2024-12-19 15:42:20 ==========================capability end============================
2024-12-19 15:42:20 chain num = 3
2024-12-19 15:42:20 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 15:42:20 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 15:42:20 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 15:42:24 load chain 0 eeprom data
2024-12-19 15:42:27 load chain 1 eeprom data
2024-12-19 15:42:30 load chain 2 eeprom data
2024-12-19 15:42:30 eeprom load ret:0
2024-12-19 15:42:30 miner:BHB68701,board_name:BHB68701
2024-12-19 15:42:30 create thread get_nonce_and_register_thread
2024-12-19 15:42:30 fixed working voltage = 1360
2024-12-19 15:42:30 Chain

• PCB Version: 0x0100

2024-12-19 15:42:30 Chain

• BOM Version: 0x0000

2024-12-19 15:42:30 Chain [1] PCB Version: 0x0100
2024-12-19 15:42:30 Chain [1] BOM Version: 0x0000
2024-12-19 15:42:30 Chain [2] PCB Version: 0x0100
2024-12-19 15:42:30 Chain [2] BOM Version: 0x0000
2024-12-19 15:42:30 bad chain id = 3
2024-12-19 15:42:33 Fan check passed.
2024-12-19 15:42:33 init fan pid target=65
2024-12-19 15:42:33 max sensor num = 4
2024-12-19 15:42:33 temperature_monitor_thread start...
2024-12-19 15:42:33 STATUS_INITED: soc init done!
2024-12-19 15:42:33 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 15:42:33 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 15:42:33 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 15:42:33 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 15:42:33 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 15:42:33 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 15:42:33 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 15:42:36 start to init...
2024-12-19 15:42:36 i2c_sim_init start
2024-12-19 15:42:36 init gpio477
2024-12-19 15:42:36 init gpio476
2024-12-19 15:42:36 i2c_sim_init end
2024-12-19 15:42:41 get power version failed
2024-12-19 15:42:41 check power version failed, use v2 protocal to try it again
2024-12-19 15:42:43 power open power_version = 0x6a
2024-12-19 15:42:46 power calibration data:
2024-12-19 15:42:46  9  B 92 41
2024-12-19 15:42:46 A5 71 FC 47
2024-12-19 15:42:46 29 26 EC DB
2024-12-19 15:42:46 FF D3  0 FF
2024-12-19 15:42:46  0 FE FF  0
2024-12-19 15:42:46  0 FE  0 80
2024-12-19 15:42:46 80 80 80 80
2024-12-19 15:42:46 1F E0 3F 45
2024-12-19 15:42:50 calibration data 1  15.520556    15.555556
2024-12-19 15:42:50 calibration data 2  15.075111    15.111111
2024-12-19 15:42:50 calibration data 3  14.628667    14.666667
2024-12-19 15:42:50 calibration data 4  14.183222    14.222222
2024-12-19 15:42:50 calibration data 5  13.737778    13.777778
2024-12-19 15:42:50 calibration data 6  13.293333    13.333333
2024-12-19 15:42:50 calibration data 7  12.848889    12.888889
2024-12-19 15:42:50 calibration data 8  12.402444    12.444444
2024-12-19 15:42:50 calibration data 9  11.957000    12.000000
2024-12-19 15:42:50 power is Calibrated
2024-12-19 15:42:50 power sn:KLKT343BDJBBF2123
2024-12-19 15:42:50 enable_power_calibration,calibration date:211208.
2024-12-19 15:42:54 get power version failed
2024-12-19 15:42:54 check power version failed, use v2 protocal to try it again
2024-12-19 15:42:56 power type version: 0x006a
2024-12-19 15:42:56 power history status: -1
2024-12-19 15:42:58 disable power watchdog: 0x0000
2024-12-19 15:42:59 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 15:43:29 Slept 30 seconds, diff = 0.
2024-12-19 15:43:39 set_voltage_by_steps to 1500.
2024-12-19 15:43:41 power on
2024-12-19 15:43:56 bad chain id = 3
2024-12-19 15:43:59 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 15:43:59 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 15:44:01 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 15:44:01 reach max restart times
2024-12-19 15:44:02 Version num 65536
2024-12-19 15:44:02 Mask num 0x1fffe000
2024-12-19 15:44:02 Note: addrInterval or corenum is not initialized.
2024-12-19 15:44:03 start up min temp by 75a = 20
2024-12-19 15:44:12 Chain[0]: find 0 asic, times 0
2024-12-19 15:44:17 Chain[0]: find 0 asic, times 1
2024-12-19 15:44:22 Chain[0]: find 0 asic, times 2
2024-12-19 15:44:22 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 15:44:22 Sweep error string = J1:2.
2024-12-19 15:44:22 ERROR_ASIC_NUM: asic number is not right
2024-12-19 15:44:22 stop_mining: asic number is not right
2024-12-19 15:44:22 uninit_temp_info
2024-12-19 15:44:22 do not read temp anymore...
2024-12-19 15:44:22 uninit_asic_temp_vol_info
2024-12-19 15:44:22 do not read asic_temp_vol anymore...
2024-12-19 15:44:22 cancel thread thread_id_rd_nonce_reg
2024-12-19 15:44:22 ****power off hashboard****
2024-12-19 15:44:22 power off
2024-12-19 15:44:22 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 15:44:23 temp monitor thread exit
2024-12-19 15:44:23 ERROR_SOC_INIT: soc init failed!
2024-12-19 15:44:23 reach max restart times
2015-01-01 00:00:15 Open miner sn file /config/mac error
2015-01-01 00:00:15 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2015-01-01 00:00:17 This is fix-freq version
2015-01-01 00:00:17 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2015-01-01 00:00:17 Miner sn: HQDZF2UBDJBBA05ZR
2015-01-01 00:00:17 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2015-01-01 00:00:17 opt_multi_version     = 1
2015-01-01 00:00:17 opt_bitmain_ab        = 1
2015-01-01 00:00:17 mid_auto_gen          = 1
2015-01-01 00:00:17 opt_bitmain_work_mode = 0
2015-01-01 00:00:17 port 439 already exported
2015-01-01 00:00:17 port 454 already exported
2015-01-01 00:00:17 port 440 already exported
2015-01-01 00:00:17 port 455 already exported
2015-01-01 00:00:17 port 441 already exported
2015-01-01 00:00:17 port 456 already exported
2015-01-01 00:00:17 port 438 already exported
2015-01-01 00:00:17 port 453 already exported
2015-01-01 00:00:17 port 446 already exported
2015-01-01 00:00:17 port 445 already exported
2015-01-01 00:00:17 Note: front fan is power on!
2015-01-01 00:00:17 Note: rear fan is power on!
2015-01-01 00:00:17 start the http server
2015-01-01 00:00:17 httpserver:6060 started ok
2015-01-01 00:00:17 get test_loop_securely_find_asic_num failed
2015-01-01 00:00:17 abandon mix board!
2015-01-01 00:00:17 get mix boardname[0][BHB68701], name:BHB68701
2015-01-01 00:00:17 bad chain id = 3
2015-01-01 00:00:20 bad chain id = 3
2015-01-01 00:00:22 power on
2024-12-19 18:12:25 power off
2024-12-19 18:12:26 ==========================capability start==========================
2024-12-19 18:12:26 board num = 3
2024-12-19 18:12:26 board id = 0, chain num = 1
2024-12-19 18:12:26    chain id = 0
2024-12-19 18:12:26 board id = 1, chain num = 1
2024-12-19 18:12:26    chain id = 1
2024-12-19 18:12:26 board id = 2, chain num = 1
2024-12-19 18:12:26    chain id = 2
2024-12-19 18:12:26 ==========================capability end============================
2024-12-19 18:12:26 chain num = 3
2024-12-19 18:12:26 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:12:26 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:12:26 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:12:29 load chain 0 eeprom data
2024-12-19 18:12:33 load chain 1 eeprom data
2024-12-19 18:12:36 load chain 2 eeprom data
2024-12-19 18:12:36 eeprom load ret:0
2024-12-19 18:12:36 miner:BHB68701,board_name:BHB68701
2024-12-19 18:12:36 create thread get_nonce_and_register_thread
2024-12-19 18:12:36 fixed working voltage = 1360
2024-12-19 18:12:36 Chain

• PCB Version: 0x0100

2024-12-19 18:12:36 Chain

• BOM Version: 0x0000

2024-12-19 18:12:36 Chain [1] PCB Version: 0x0100
2024-12-19 18:12:36 Chain [1] BOM Version: 0x0000
2024-12-19 18:12:36 Chain [2] PCB Version: 0x0100
2024-12-19 18:12:36 Chain [2] BOM Version: 0x0000
2024-12-19 18:12:36 bad chain id = 3
2024-12-19 18:12:39 Fan check passed.
2024-12-19 18:12:39 init fan pid target=65
2024-12-19 18:12:39 max sensor num = 4
2024-12-19 18:12:39 STATUS_INITED: soc init done!
2024-12-19 18:12:39 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:12:39 temperature_monitor_thread start...
2024-12-19 18:12:39 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:12:39 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:12:39 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:12:39 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:12:39 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:12:39 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:12:42 start to init...
2024-12-19 18:12:42 i2c_sim_init start
2024-12-19 18:12:42 init gpio477
2024-12-19 18:12:42 init gpio476
2024-12-19 18:12:42 i2c_sim_init end
2024-12-19 18:12:47 get power version failed
2024-12-19 18:12:47 check power version failed, use v2 protocal to try it again
2024-12-19 18:12:48 power open power_version = 0x6a
2024-12-19 18:12:52 power calibration data:
2024-12-19 18:12:52  9  B 92 41
2024-12-19 18:12:52 A5 71 FC 47
2024-12-19 18:12:52 29 26 EC DB
2024-12-19 18:12:52 FF D3  0 FF
2024-12-19 18:12:52  0 FE FF  0
2024-12-19 18:12:52  0 FE  0 80
2024-12-19 18:12:52 80 80 80 80
2024-12-19 18:12:52 1F E0 3F 45
2024-12-19 18:12:55 calibration data 1  15.520556    15.555556
2024-12-19 18:12:55 calibration data 2  15.075111    15.111111
2024-12-19 18:12:55 calibration data 3  14.628667    14.666667
2024-12-19 18:12:55 calibration data 4  14.183222    14.222222
2024-12-19 18:12:55 calibration data 5  13.737778    13.777778
2024-12-19 18:12:55 calibration data 6  13.293333    13.333333
2024-12-19 18:12:55 calibration data 7  12.848889    12.888889
2024-12-19 18:12:55 calibration data 8  12.402444    12.444444
2024-12-19 18:12:55 calibration data 9  11.957000    12.000000
2024-12-19 18:12:55 power is Calibrated
2024-12-19 18:12:55 power sn:KLKT343BDJBBF2123
2024-12-19 18:12:55 enable_power_calibration,calibration date:211208.
2024-12-19 18:13:00 get power version failed
2024-12-19 18:13:00 check power version failed, use v2 protocal to try it again
2024-12-19 18:13:02 power type version: 0x006a
2024-12-19 18:13:02 power history status: -1
2024-12-19 18:13:03 disable power watchdog: 0x0000
2024-12-19 18:13:04 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:13:34 Slept 30 seconds, diff = 1.
2024-12-19 18:13:44 set_voltage_by_steps to 1500.
2024-12-19 18:13:47 power on
2024-12-19 18:14:02 bad chain id = 3
2024-12-19 18:14:05 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:14:05 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:14:07 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:14:07 reach max restart times
2024-12-19 18:14:08 start up min temp by 75a = 22
2024-12-19 18:14:18 Chain[0]: find 0 asic, times 0
2024-12-19 18:14:23 Chain[0]: find 0 asic, times 1
2024-12-19 18:14:28 Chain[0]: find 0 asic, times 2
2024-12-19 18:14:28 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 18:14:28 Sweep error string = J1:2.
2024-12-19 18:14:28 ERROR_ASIC_NUM: asic number is not right
2024-12-19 18:14:28 stop_mining: asic number is not right
2024-12-19 18:14:28 uninit_temp_info
2024-12-19 18:14:28 do not read temp anymore...
2024-12-19 18:14:28 uninit_asic_temp_vol_info
2024-12-19 18:14:28 do not read asic_temp_vol anymore...
2024-12-19 18:14:28 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:14:28 ****power off hashboard****
2024-12-19 18:14:28 power off
2024-12-19 18:14:28 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:14:28 temp monitor thread exit
2024-12-19 18:14:29 ERROR_SOC_INIT: soc init failed!
2024-12-19 18:14:29 reach max restart times
2024-12-19 18:14:32 Version num 65536
2024-12-19 18:14:32 Mask num 0x1fffe000
2024-12-19 18:14:32 Note: addrInterval or corenum is not initialized.
2024-12-19 18:20:39 ****power off hashboard****
2024-12-19 18:20:39 power off
2024-12-19 18:20:55 Open miner sn file /config/mac error
2024-12-19 18:20:55 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 18:20:57 This is fix-freq version
2024-12-19 18:20:57 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2024-12-19 18:20:57 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 18:20:57 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2024-12-19 18:20:57 opt_multi_version     = 1
2024-12-19 18:20:57 opt_bitmain_ab        = 1
2024-12-19 18:20:57 mid_auto_gen          = 1
2024-12-19 18:20:57 opt_bitmain_work_mode = 0
2024-12-19 18:20:57 port 439 already exported
2024-12-19 18:20:57 port 454 already exported
2024-12-19 18:20:57 port 440 already exported
2024-12-19 18:20:57 port 455 already exported
2024-12-19 18:20:57 port 441 already exported
2024-12-19 18:20:57 port 456 already exported
2024-12-19 18:20:57 port 438 already exported
2024-12-19 18:20:57 port 453 already exported
2024-12-19 18:20:57 port 446 already exported
2024-12-19 18:20:57 port 445 already exported
2024-12-19 18:20:57 Note: front fan is power on!
2024-12-19 18:20:57 Note: rear fan is power on!
2024-12-19 18:20:57 start the http server
2024-12-19 18:20:57 httpserver:6060 started ok
2024-12-19 18:20:57 get test_loop_securely_find_asic_num failed
2024-12-19 18:20:57 abandon mix board!
2024-12-19 18:20:57 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 18:20:57 bad chain id = 3
2024-12-19 18:21:00 bad chain id = 3
2024-12-19 18:21:02 power on
2024-12-19 18:21:16 power off
2024-12-19 18:21:17 ==========================capability start==========================
2024-12-19 18:21:17 board num = 3
2024-12-19 18:21:17 board id = 0, chain num = 1
2024-12-19 18:21:17    chain id = 0
2024-12-19 18:21:17 board id = 1, chain num = 1
2024-12-19 18:21:17    chain id = 1
2024-12-19 18:21:17 board id = 2, chain num = 1
2024-12-19 18:21:17    chain id = 2
2024-12-19 18:21:17 ==========================capability end============================
2024-12-19 18:21:17 chain num = 3
2024-12-19 18:21:17 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:21:17 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:21:17 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:21:20 load chain 0 eeprom data
2024-12-19 18:21:24 load chain 1 eeprom data
2024-12-19 18:21:27 load chain 2 eeprom data
2024-12-19 18:21:27 eeprom load ret:0
2024-12-19 18:21:27 miner:BHB68701,board_name:BHB68701
2024-12-19 18:21:27 create thread get_nonce_and_register_thread
2024-12-19 18:21:27 fixed working voltage = 1360
2024-12-19 18:21:27 Chain

• PCB Version: 0x0100

2024-12-19 18:21:27 Chain

• BOM Version: 0x0000

2024-12-19 18:21:27 Chain [1] PCB Version: 0x0100
2024-12-19 18:21:27 Chain [1] BOM Version: 0x0000
2024-12-19 18:21:27 Chain [2] PCB Version: 0x0100
2024-12-19 18:21:27 Chain [2] BOM Version: 0x0000
2024-12-19 18:21:27 bad chain id = 3
2024-12-19 18:21:30 Fan check passed.
2024-12-19 18:21:30 init fan pid target=65
2024-12-19 18:21:30 max sensor num = 4
2024-12-19 18:21:30 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:21:30 STATUS_INITED: soc init done!
2024-12-19 18:21:30 temperature_monitor_thread start...
2024-12-19 18:21:30 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:21:30 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:21:30 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:21:30 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:21:30 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:21:30 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:23:02 cmd : set_miner_conf
2024-12-19 18:23:03 read ret 0 byte , ret =
2024-12-19 18:23:04 reload pool, need recalculate
2024-12-19 18:23:04 set_start_time_point total_tv_start_sys=139 total_tv_end_sys=140
2024-12-19 18:23:05 start to init...
2024-12-19 18:23:05 i2c_sim_init start
2024-12-19 18:23:05 init gpio477
2024-12-19 18:23:05 init gpio476
2024-12-19 18:23:05 i2c_sim_init end
2024-12-19 18:23:10 get power version failed
2024-12-19 18:23:10 check power version failed, use v2 protocal to try it again
2024-12-19 18:23:11 power open power_version = 0x6a
2024-12-19 18:23:15 power calibration data:
2024-12-19 18:23:15  9  B 92 41
2024-12-19 18:23:15 A5 71 FC 47
2024-12-19 18:23:15 29 26 EC DB
2024-12-19 18:23:15 FF D3  0 FF
2024-12-19 18:23:15  0 FE FF  0
2024-12-19 18:23:15  0 FE  0 80
2024-12-19 18:23:15 80 80 80 80
2024-12-19 18:23:15 1F E0 3F 45
2024-12-19 18:23:18 calibration data 1  15.520556    15.555556
2024-12-19 18:23:18 calibration data 2  15.075111    15.111111
2024-12-19 18:23:18 calibration data 3  14.628667    14.666667
2024-12-19 18:23:18 calibration data 4  14.183222    14.222222
2024-12-19 18:23:18 calibration data 5  13.737778    13.777778
2024-12-19 18:23:18 calibration data 6  13.293333    13.333333
2024-12-19 18:23:18 calibration data 7  12.848889    12.888889
2024-12-19 18:23:18 calibration data 8  12.402444    12.444444
2024-12-19 18:23:18 calibration data 9  11.957000    12.000000
2024-12-19 18:23:18 power is Calibrated
2024-12-19 18:23:18 power sn:KLKT343BDJBBF2123
2024-12-19 18:23:18 enable_power_calibration,calibration date:211208.
2024-12-19 18:23:23 get power version failed
2024-12-19 18:23:23 check power version failed, use v2 protocal to try it again
2024-12-19 18:23:25 power type version: 0x006a
2024-12-19 18:23:25 power history status: -1
2024-12-19 18:23:26 disable power watchdog: 0x0000
2024-12-19 18:23:27 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:23:57 Slept 30 seconds, diff = 1.
2024-12-19 18:24:07 set_voltage_by_steps to 1500.
2024-12-19 18:24:10 power on
2024-12-19 18:24:25 bad chain id = 3
2024-12-19 18:24:28 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:24:28 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:24:29 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:24:29 fail to open counter file, err:No such file or directory
2024-12-19 18:24:30 Version num 65536
2024-12-19 18:24:30 Mask num 0x1fffe000
2024-12-19 18:24:30 Note: addrInterval or corenum is not initialized.
2024-12-19 18:24:59 stop_mining_and_restart: power voltage read failed, pls check!
2024-12-19 18:24:59 uninit_temp_info
2024-12-19 18:24:59 do not read temp anymore...
2024-12-19 18:24:59 uninit_asic_temp_vol_info
2024-12-19 18:24:59 do not read asic_temp_vol anymore...
2024-12-19 18:24:59 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:24:59 ****power off hashboard****
2024-12-19 18:24:59 power off
2024-12-19 18:25:00 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:25:00 temp monitor thread exit
2024-12-19 18:25:01 restart
2024-12-19 18:25:01 ****power off hashboard****
2024-12-19 18:25:01 power off
2024-12-19 18:25:32 httpserver6060 quit!
2024-12-19 18:25:47 Open miner sn file /config/mac error
2024-12-19 18:25:47 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 18:25:48 This is fix-freq version
2024-12-19 18:25:48 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2024-12-19 18:25:48 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 18:25:48 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2024-12-19 18:25:48 opt_multi_version     = 1
2024-12-19 18:25:48 opt_bitmain_ab        = 1
2024-12-19 18:25:48 mid_auto_gen          = 1
2024-12-19 18:25:48 opt_bitmain_work_mode = 0
2024-12-19 18:25:48 port 439 already exported
2024-12-19 18:25:48 port 454 already exported
2024-12-19 18:25:48 port 440 already exported
2024-12-19 18:25:48 port 455 already exported
2024-12-19 18:25:48 port 441 already exported
2024-12-19 18:25:48 port 456 already exported
2024-12-19 18:25:48 port 438 already exported
2024-12-19 18:25:48 port 453 already exported
2024-12-19 18:25:48 port 446 already exported
2024-12-19 18:25:48 port 445 already exported
2024-12-19 18:25:48 Note: front fan is power on!
2024-12-19 18:25:48 Note: rear fan is power on!
2024-12-19 18:25:48 start the http server
2024-12-19 18:25:48 httpserver:6060 started ok
2024-12-19 18:25:48 get test_loop_securely_find_asic_num failed
2024-12-19 18:25:48 abandon mix board!
2024-12-19 18:25:48 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 18:25:48 bad chain id = 3
2024-12-19 18:25:51 bad chain id = 3
2024-12-19 18:25:53 power on
2024-12-19 18:26:06 power off
2024-12-19 18:26:07 ==========================capability start==========================
2024-12-19 18:26:07 board num = 3
2024-12-19 18:26:07 board id = 0, chain num = 1
2024-12-19 18:26:07    chain id = 0
2024-12-19 18:26:07 board id = 1, chain num = 1
2024-12-19 18:26:07    chain id = 1
2024-12-19 18:26:07 board id = 2, chain num = 1
2024-12-19 18:26:07    chain id = 2
2024-12-19 18:26:07 ==========================capability end============================
2024-12-19 18:26:07 chain num = 3
2024-12-19 18:26:07 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:26:07 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:26:07 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:26:10 load chain 0 eeprom data
2024-12-19 18:26:14 load chain 1 eeprom data
2024-12-19 18:26:17 load chain 2 eeprom data
2024-12-19 18:26:17 eeprom load ret:0
2024-12-19 18:26:17 miner:BHB68701,board_name:BHB68701
2024-12-19 18:26:17 create thread get_nonce_and_register_thread
2024-12-19 18:26:17 fixed working voltage = 1360
2024-12-19 18:26:17 Chain

• PCB Version: 0x0100

2024-12-19 18:26:17 Chain

• BOM Version: 0x0000

2024-12-19 18:26:17 Chain [1] PCB Version: 0x0100
2024-12-19 18:26:17 Chain [1] BOM Version: 0x0000
2024-12-19 18:26:17 Chain [2] PCB Version: 0x0100
2024-12-19 18:26:17 Chain [2] BOM Version: 0x0000
2024-12-19 18:26:17 bad chain id = 3
2024-12-19 18:26:20 Fan check passed.
2024-12-19 18:26:20 init fan pid target=65
2024-12-19 18:26:20 max sensor num = 4
2024-12-19 18:26:20 STATUS_INITED: soc init done!
2024-12-19 18:26:20 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:26:20 temperature_monitor_thread start...
2024-12-19 18:26:20 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:26:20 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:26:20 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:26:20 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:26:20 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:26:20 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:26:23 start to init...
2024-12-19 18:26:23 i2c_sim_init start
2024-12-19 18:26:23 i2c_sim_init end
2024-12-19 18:26:28 get power version failed
2024-12-19 18:26:28 check power version failed, use v2 protocal to try it again
2024-12-19 18:26:29 power open power_version = 0x6a
2024-12-19 18:26:33 power calibration data:
2024-12-19 18:26:33  9  B 92 41
2024-12-19 18:26:33 A5 71 FC 47
2024-12-19 18:26:33 29 26 EC DB
2024-12-19 18:26:33 FF D3  0 FF
2024-12-19 18:26:33  0 FE FF  0
2024-12-19 18:26:33  0 FE  0 80
2024-12-19 18:26:33 80 80 80 80
2024-12-19 18:26:33 1F E0 3F 45
2024-12-19 18:26:36 calibration data 1  15.520556    15.555556
2024-12-19 18:26:36 calibration data 2  15.075111    15.111111
2024-12-19 18:26:36 calibration data 3  14.628667    14.666667
2024-12-19 18:26:36 calibration data 4  14.183222    14.222222
2024-12-19 18:26:36 calibration data 5  13.737778    13.777778
2024-12-19 18:26:36 calibration data 6  13.293333    13.333333
2024-12-19 18:26:36 calibration data 7  12.848889    12.888889
2024-12-19 18:26:36 calibration data 8  12.402444    12.444444
2024-12-19 18:26:36 calibration data 9  11.957000    12.000000
2024-12-19 18:26:36 power is Calibrated
2024-12-19 18:26:36 power sn:KLKT343BDJBBF2123
2024-12-19 18:26:36 enable_power_calibration,calibration date:211208.
2024-12-19 18:26:41 get power version failed
2024-12-19 18:26:41 check power version failed, use v2 protocal to try it again
2024-12-19 18:26:43 power type version: 0x006a
2024-12-19 18:26:43 power history status: -1
2024-12-19 18:26:44 disable power watchdog: 0x0000
2024-12-19 18:26:45 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:27:15 Slept 30 seconds, diff = 1.
2024-12-19 18:27:25 set_voltage_by_steps to 1500.
2024-12-19 18:27:28 power on
2024-12-19 18:27:43 bad chain id = 3
2024-12-19 18:27:46 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:27:46 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:27:47 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:28:03 Version num 65536
2024-12-19 18:28:03 Mask num 0x1fffe000
2024-12-19 18:28:03 Note: addrInterval or corenum is not initialized.
2024-12-19 18:28:17 stop_mining_and_restart: power voltage read failed, pls check!
2024-12-19 18:28:17 uninit_temp_info
2024-12-19 18:28:17 do not read temp anymore...
2024-12-19 18:28:17 uninit_asic_temp_vol_info
2024-12-19 18:28:17 do not read asic_temp_vol anymore...
2024-12-19 18:28:17 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:28:17 ****power off hashboard****
2024-12-19 18:28:17 power off
2024-12-19 18:28:18 temp monitor thread exit
2024-12-19 18:28:18 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:28:18 restart
2024-12-19 18:28:18 ****power off hashboard****
2024-12-19 18:28:18 power off
2024-12-19 18:28:50 httpserver6060 quit!
2024-12-19 18:29:10 Open miner sn file /config/mac error
2024-12-19 18:29:10 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 18:29:12 This is fix-freq version
2024-12-19 18:29:12 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2024-12-19 18:29:12 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 18:29:12 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2024-12-19 18:29:12 opt_multi_version     = 1
2024-12-19 18:29:12 opt_bitmain_ab        = 1
2024-12-19 18:29:12 mid_auto_gen          = 1
2024-12-19 18:29:12 opt_bitmain_work_mode = 0
2024-12-19 18:29:12 port 439 already exported
2024-12-19 18:29:12 port 454 already exported
2024-12-19 18:29:12 port 440 already exported
2024-12-19 18:29:12 port 455 already exported
2024-12-19 18:29:12 port 441 already exported
2024-12-19 18:29:12 port 456 already exported
2024-12-19 18:29:12 port 438 already exported
2024-12-19 18:29:12 port 453 already exported
2024-12-19 18:29:12 port 446 already exported
2024-12-19 18:29:12 port 445 already exported
2024-12-19 18:29:12 Note: front fan is power on!
2024-12-19 18:29:12 Note: rear fan is power on!
2024-12-19 18:29:12 start the http server
2024-12-19 18:29:12 httpserver:6060 started ok
2024-12-19 18:29:12 get test_loop_securely_find_asic_num failed
2024-12-19 18:29:12 abandon mix board!
2024-12-19 18:29:12 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 18:29:12 bad chain id = 3
2024-12-19 18:29:15 bad chain id = 3
2024-12-19 18:29:17 power on
2024-12-19 18:29:30 power off
2024-12-19 18:29:31 ==========================capability start==========================
2024-12-19 18:29:31 board num = 3
2024-12-19 18:29:31 board id = 0, chain num = 1
2024-12-19 18:29:31    chain id = 0
2024-12-19 18:29:31 board id = 1, chain num = 1
2024-12-19 18:29:31    chain id = 1
2024-12-19 18:29:31 board id = 2, chain num = 1
2024-12-19 18:29:31    chain id = 2
2024-12-19 18:29:31 ==========================capability end============================
2024-12-19 18:29:31 chain num = 3
2024-12-19 18:29:31 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:29:31 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:29:31 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:29:34 load chain 0 eeprom data
2024-12-19 18:29:37 load chain 1 eeprom data
2024-12-19 18:29:40 load chain 2 eeprom data
2024-12-19 18:29:40 eeprom load ret:0
2024-12-19 18:29:40 miner:BHB68701,board_name:BHB68701
2024-12-19 18:29:40 create thread get_nonce_and_register_thread
2024-12-19 18:29:40 fixed working voltage = 1360
2024-12-19 18:29:40 Chain

• PCB Version: 0x0100

2024-12-19 18:29:40 Chain

• BOM Version: 0x0000

2024-12-19 18:29:40 Chain [1] PCB Version: 0x0100
2024-12-19 18:29:40 Chain [1] BOM Version: 0x0000
2024-12-19 18:29:40 Chain [2] PCB Version: 0x0100
2024-12-19 18:29:40 Chain [2] BOM Version: 0x0000
2024-12-19 18:29:40 bad chain id = 3
2024-12-19 18:29:44 Fan check passed.
2024-12-19 18:29:44 init fan pid target=65
2024-12-19 18:29:44 max sensor num = 4
2024-12-19 18:29:44 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:29:44 temperature_monitor_thread start...
2024-12-19 18:29:44 STATUS_INITED: soc init done!
2024-12-19 18:29:44 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:29:44 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:29:44 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:29:44 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:29:44 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:29:44 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:29:47 start to init...
2024-12-19 18:29:47 i2c_sim_init start
2024-12-19 18:29:47 i2c_sim_init end
2024-12-19 18:29:51 get power version failed
2024-12-19 18:29:51 check power version failed, use v2 protocal to try it again
2024-12-19 18:29:53 power open power_version = 0x6a
2024-12-19 18:29:57 power calibration data:
2024-12-19 18:29:57  9  B 92 41
2024-12-19 18:29:57 A5 71 FC 47
2024-12-19 18:29:57 29 26 EC DB
2024-12-19 18:29:57 FF D3  0 FF
2024-12-19 18:29:57  0 FE FF  0
2024-12-19 18:29:57  0 FE  0 80
2024-12-19 18:29:57 80 80 80 80
2024-12-19 18:29:57 1F E0 3F 45
2024-12-19 18:30:00 calibration data 1  15.520556    15.555556
2024-12-19 18:30:00 calibration data 2  15.075111    15.111111
2024-12-19 18:30:00 calibration data 3  14.628667    14.666667
2024-12-19 18:30:00 calibration data 4  14.183222    14.222222
2024-12-19 18:30:00 calibration data 5  13.737778    13.777778
2024-12-19 18:30:00 calibration data 6  13.293333    13.333333
2024-12-19 18:30:00 calibration data 7  12.848889    12.888889
2024-12-19 18:30:00 calibration data 8  12.402444    12.444444
2024-12-19 18:30:00 calibration data 9  11.957000    12.000000
2024-12-19 18:30:00 power is Calibrated
2024-12-19 18:30:00 power sn:KLKT343BDJBBF2123
2024-12-19 18:30:00 enable_power_calibration,calibration date:211208.
2024-12-19 18:30:05 get power version failed
2024-12-19 18:30:05 check power version failed, use v2 protocal to try it again
2024-12-19 18:30:06 power type version: 0x006a
2024-12-19 18:30:06 power history status: -1
2024-12-19 18:30:08 disable power watchdog: 0x0000
2024-12-19 18:30:09 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:30:39 Slept 30 seconds, diff = 1.
2024-12-19 18:30:49 set_voltage_by_steps to 1500.
2024-12-19 18:30:52 power on
2024-12-19 18:31:07 bad chain id = 3
2024-12-19 18:31:09 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:31:09 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:31:11 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:31:11 reach max restart times
2024-12-19 18:31:13 start up min temp by 75a = 21
2024-12-19 18:31:23 Chain[0]: find 0 asic, times 0
2024-12-19 18:31:25 Version num 65536
2024-12-19 18:31:25 Mask num 0x1fffe000
2024-12-19 18:31:25 Note: addrInterval or corenum is not initialized.
2024-12-19 18:31:28 Chain[0]: find 0 asic, times 1
2024-12-19 18:31:32 Chain[0]: find 0 asic, times 2
2024-12-19 18:31:32 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 18:31:32 Sweep error string = J1:2.
2024-12-19 18:31:32 ERROR_ASIC_NUM: asic number is not right
2024-12-19 18:31:32 stop_mining: asic number is not right
2024-12-19 18:31:32 uninit_temp_info
2024-12-19 18:31:32 do not read temp anymore...
2024-12-19 18:31:32 uninit_asic_temp_vol_info
2024-12-19 18:31:32 do not read asic_temp_vol anymore...
2024-12-19 18:31:32 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:31:32 ****power off hashboard****
2024-12-19 18:31:32 power off
2024-12-19 18:31:33 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:31:33 temp monitor thread exit
2024-12-19 18:31:33 ERROR_SOC_INIT: soc init failed!
2024-12-19 18:31:33 reach max restart times
2024-12-19 18:54:22 ****power off hashboard****
2024-12-19 18:54:22 power off
2024-12-19 18:54:53 httpserver6060 quit!
2024-12-19 18:55:29 Open miner sn file /config/mac error
2024-12-19 18:55:29 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 18:55:31 This is fix-freq version
2024-12-19 18:55:31 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21
2024-12-19 18:55:31 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 18:55:31 commit version: 62efe336 2024-08-15 13:07:46, build by: jenkins 2024-09-26 12:04:12
2024-12-19 18:55:31 opt_multi_version     = 1
2024-12-19 18:55:31 opt_bitmain_ab        = 1
2024-12-19 18:55:31 mid_auto_gen          = 1
2024-12-19 18:55:31 opt_bitmain_work_mode = 0
2024-12-19 18:55:31 port 439 already exported
2024-12-19 18:55:31 port 454 already exported
2024-12-19 18:55:31 port 440 already exported
2024-12-19 18:55:31 port 455 already exported
2024-12-19 18:55:31 port 441 already exported
2024-12-19 18:55:31 port 456 already exported
2024-12-19 18:55:31 port 438 already exported
2024-12-19 18:55:31 port 453 already exported
2024-12-19 18:55:31 port 446 already exported
2024-12-19 18:55:31 port 445 already exported
2024-12-19 18:55:31 Note: front fan is power on!
2024-12-19 18:55:31 Note: rear fan is power on!
2024-12-19 18:55:31 start the http server
2024-12-19 18:55:31 httpserver:6060 started ok
2024-12-19 18:55:31 get test_loop_securely_find_asic_num failed
2024-12-19 18:55:31 abandon mix board!
2024-12-19 18:55:31 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 18:55:31 bad chain id = 3
2024-12-19 18:55:34 bad chain id = 3
2024-12-19 18:55:36 power on
2024-12-19 18:55:49 power off
2024-12-19 18:55:51 ==========================capability start==========================
2024-12-19 18:55:51 board num = 3
2024-12-19 18:55:51 board id = 0, chain num = 1
2024-12-19 18:55:51    chain id = 0
2024-12-19 18:55:51 board id = 1, chain num = 1
2024-12-19 18:55:51    chain id = 1
2024-12-19 18:55:51 board id = 2, chain num = 1
2024-12-19 18:55:51    chain id = 2
2024-12-19 18:55:51 ==========================capability end============================
2024-12-19 18:55:51 chain num = 3
2024-12-19 18:55:51 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:55:51 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:55:51 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:55:54 load chain 0 eeprom data
2024-12-19 18:55:57 load chain 1 eeprom data
2024-12-19 18:56:00 load chain 2 eeprom data
2024-12-19 18:56:00 eeprom load ret:0
2024-12-19 18:56:00 miner:BHB68701,board_name:BHB68701
2024-12-19 18:56:00 create thread get_nonce_and_register_thread
2024-12-19 18:56:00 fixed working voltage = 1360
2024-12-19 18:56:00 Chain

• PCB Version: 0x0100

2024-12-19 18:56:00 Chain

• BOM Version: 0x0000

2024-12-19 18:56:00 Chain [1] PCB Version: 0x0100
2024-12-19 18:56:00 Chain [1] BOM Version: 0x0000
2024-12-19 18:56:00 Chain [2] PCB Version: 0x0100
2024-12-19 18:56:00 Chain [2] BOM Version: 0x0000
2024-12-19 18:56:00 bad chain id = 3
2024-12-19 18:56:03 Fan check passed.
2024-12-19 18:56:03 init fan pid target=65
2024-12-19 18:56:03 max sensor num = 4
2024-12-19 18:56:03 STATUS_INITED: soc init done!
2024-12-19 18:56:03 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:56:03 temperature_monitor_thread start...
2024-12-19 18:56:03 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:56:03 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:56:03 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:56:03 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:56:03 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:56:03 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:56:06 start to init...
2024-12-19 18:56:06 i2c_sim_init start
2024-12-19 18:56:06 init gpio477
2024-12-19 18:56:06 init gpio476
2024-12-19 18:56:06 i2c_sim_init end
2024-12-19 18:56:11 get power version failed
2024-12-19 18:56:11 check power version failed, use v2 protocal to try it again
2024-12-19 18:56:13 power open power_version = 0x6a
2024-12-19 18:56:18 get power version failed
2024-12-19 18:56:18 power fw_version = 0x80000300
2024-12-19 18:56:22 power calibration data:
2024-12-19 18:56:22  9  B 92 41
2024-12-19 18:56:22 A5 71 FC 47
2024-12-19 18:56:22 29 26 EC DB
2024-12-19 18:56:22 FF D3  0 FF
2024-12-19 18:56:22  0 FE FF  0
2024-12-19 18:56:22  0 FE  0 80
2024-12-19 18:56:22 80 80 80 80
2024-12-19 18:56:22 1F E0 3F 45
2024-12-19 18:56:25 calibration data 1  15.520556    15.555556
2024-12-19 18:56:25 calibration data 2  15.075111    15.111111
2024-12-19 18:56:25 calibration data 3  14.628667    14.666667
2024-12-19 18:56:25 calibration data 4  14.183222    14.222222
2024-12-19 18:56:25 calibration data 5  13.737778    13.777778
2024-12-19 18:56:25 calibration data 6  13.293333    13.333333
2024-12-19 18:56:25 calibration data 7  12.848889    12.888889
2024-12-19 18:56:25 calibration data 8  12.402444    12.444444
2024-12-19 18:56:25 calibration data 9  11.957000    12.000000
2024-12-19 18:56:25 power is Calibrated
2024-12-19 18:56:25 power sn:KLKT343BDJBBF2123
2024-12-19 18:56:25 enable_power_calibration,calibration date:211208.
2024-12-19 18:56:30 get power version failed
2024-12-19 18:56:30 check power version failed, use v2 protocal to try it again
2024-12-19 18:56:31 power type version: 0x006a
2024-12-19 18:56:31 power history status: -1
2024-12-19 18:56:33 disable power watchdog: 0x0000
2024-12-19 18:56:34 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:57:04 Slept 30 seconds, diff = 0.
2024-12-19 18:57:14 set_voltage_by_steps to 1500.
2024-12-19 18:57:16 power on
2024-12-19 18:57:31 bad chain id = 3
2024-12-19 18:57:34 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:57:34 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:57:36 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:57:36 reach max restart times
2024-12-19 18:57:37 Version num 65536
2024-12-19 18:57:37 Mask num 0x1fffe000
2024-12-19 18:57:37 Note: addrInterval or corenum is not initialized.
2024-12-19 18:57:38 start up min temp by 75a = 21
2024-12-19 18:57:48 Chain[0]: find 0 asic, times 0
2024-12-19 18:57:52 Chain[0]: find 0 asic, times 1
2024-12-19 18:57:57 Chain[0]: find 0 asic, times 2
2024-12-19 18:57:57 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 18:57:57 Sweep error string = J1:2.
2024-12-19 18:57:57 ERROR_ASIC_NUM: asic number is not right
2024-12-19 18:57:57 stop_mining: asic number is not right
2024-12-19 18:57:57 uninit_temp_info
2024-12-19 18:57:57 do not read temp anymore...
2024-12-19 18:57:57 uninit_asic_temp_vol_info
2024-12-19 18:57:57 do not read asic_temp_vol anymore...
2024-12-19 18:57:57 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:57:57 ****power off hashboard****
2024-12-19 18:57:57 power off
2024-12-19 18:57:57 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:57:58 temp monitor thread exit
2024-12-19 18:57:58 ERROR_SOC_INIT: soc init failed!
2024-12-19 18:57:58 reach max restart times
2024-12-19 19:01:22 ****power off hashboard****
2024-12-19 19:01:22 power off
2024-12-19 19:01:53 httpserver6060 quit!
2024-12-19 19:02:28 Open miner sn file /config/mac error
2024-12-19 19:02:28 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 19:02:30 This is fix-freq version
2024-12-19 19:02:30 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21
2024-12-19 19:02:30 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 19:02:30 commit version: 62efe336 2024-08-15 13:07:46, build by: jenkins 2024-09-26 12:04:12
2024-12-19 19:02:30 opt_multi_version     = 1
2024-12-19 19:02:30 opt_bitmain_ab        = 1
2024-12-19 19:02:30 mid_auto_gen          = 1
2024-12-19 19:02:30 opt_bitmain_work_mode = 0
2024-12-19 19:02:30 port 439 already exported
2024-12-19 19:02:30 port 454 already exported
2024-12-19 19:02:30 port 440 already exported
2024-12-19 19:02:30 port 455 already exported
2024-12-19 19:02:30 port 441 already exported
2024-12-19 19:02:30 port 456 already exported
2024-12-19 19:02:30 port 438 already exported
2024-12-19 19:02:30 port 453 already exported
2024-12-19 19:02:30 port 446 already exported
2024-12-19 19:02:30 port 445 already exported
2024-12-19 19:02:30 Note: front fan is power on!
2024-12-19 19:02:30 Note: rear fan is power on!
2024-12-19 19:02:30 start the http server
2024-12-19 19:02:30 httpserver:6060 started ok
2024-12-19 19:02:30 get test_loop_securely_find_asic_num failed
2024-12-19 19:02:30 abandon mix board!
2024-12-19 19:02:30 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 19:02:30 bad chain id = 3
2024-12-19 19:02:33 bad chain id = 3
2024-12-19 19:02:35 power on
2024-12-19 19:02:49 power off
2024-12-19 19:02:50 ==========================capability start==========================
2024-12-19 19:02:50 board num = 3
2024-12-19 19:02:50 board id = 0, chain num = 1
2024-12-19 19:02:50    chain id = 0
2024-12-19 19:02:50 board id = 1, chain num = 1
2024-12-19 19:02:50    chain id = 1
2024-12-19 19:02:50 board id = 2, chain num = 1
2024-12-19 19:02:50    chain id = 2
2024-12-19 19:02:50 ==========================capability end============================
2024-12-19 19:02:50 chain num = 3
2024-12-19 19:02:50 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 19:02:50 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 19:02:50 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 19:02:53 load chain 0 eeprom data
2024-12-19 19:02:56 load chain 1 eeprom data
2024-12-19 19:03:00 load chain 2 eeprom data
2024-12-19 19:03:00 eeprom load ret:0
2024-12-19 19:03:00 miner:BHB68701,board_name:BHB68701
2024-12-19 19:03:00 create thread get_nonce_and_register_thread
2024-12-19 19:03:00 fixed working voltage = 1360
2024-12-19 19:03:00 Chain

• PCB Version: 0x0100

2024-12-19 19:03:00 Chain

• BOM Version: 0x0000

2024-12-19 19:03:00 Chain [1] PCB Version: 0x0100
2024-12-19 19:03:00 Chain [1] BOM Version: 0x0000
2024-12-19 19:03:00 Chain [2] PCB Version: 0x0100
2024-12-19 19:03:00 Chain [2] BOM Version: 0x0000
2024-12-19 19:03:00 bad chain id = 3
2024-12-19 19:03:03 Fan check passed.
2024-12-19 19:03:03 init fan pid target=65
2024-12-19 19:03:03 max sensor num = 4
2024-12-19 19:03:03 STATUS_INITED: soc init done!
2024-12-19 19:03:03 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 19:03:03 temperature_monitor_thread start...
2024-12-19 19:03:03 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 19:03:03 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 19:03:03 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 19:03:03 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 19:03:03 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 19:03:03 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 19:03:06 start to init...
2024-12-19 19:03:06 i2c_sim_init start
2024-12-19 19:03:06 init gpio477
2024-12-19 19:03:06 init gpio476
2024-12-19 19:03:06 i2c_sim_init end
2024-12-19 19:03:11 get power version failed
2024-12-19 19:03:11 check power version failed, use v2 protocal to try it again
2024-12-19 19:03:12 power open power_version = 0x6a
2024-12-19 19:03:17 get power version failed
2024-12-19 19:03:17 power fw_version = 0x80000300
2024-12-19 19:03:21 power calibration data:
2024-12-19 19:03:21  9  B 92 41
2024-12-19 19:03:21 A5 71 FC 47
2024-12-19 19:03:21 29 26 EC DB
2024-12-19 19:03:21 FF D3  0 FF
2024-12-19 19:03:21  0 FE FF  0
2024-12-19 19:03:21  0 FE  0 80
2024-12-19 19:03:21 80 80 80 80
2024-12-19 19:03:21 1F E0 3F 45
2024-12-19 19:03:24 calibration data 1  15.520556    15.555556
2024-12-19 19:03:24 calibration data 2  15.075111    15.111111
2024-12-19 19:03:24 calibration data 3  14.628667    14.666667
2024-12-19 19:03:24 calibration data 4  14.183222    14.222222
2024-12-19 19:03:24 calibration data 5  13.737778    13.777778
2024-12-19 19:03:24 calibration data 6  13.293333    13.333333
2024-12-19 19:03:24 calibration data 7  12.848889    12.888889
2024-12-19 19:03:24 calibration data 8  12.402444    12.444444
2024-12-19 19:03:24 calibration data 9  11.957000    12.000000
2024-12-19 19:03:24 power is Calibrated
2024-12-19 19:03:24 power sn:KLKT343BDJBBF2123
2024-12-19 19:03:24 enable_power_calibration,calibration date:211208.
2024-12-19 19:03:29 get power version failed
2024-12-19 19:03:29 check power version failed, use v2 protocal to try it again
2024-12-19 19:03:30 power type version: 0x006a
2024-12-19 19:03:30 power history status: -1
2024-12-19 19:03:32 disable power watchdog: 0x0000
2024-12-19 19:03:33 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 19:04:03 Slept 30 seconds, diff = 0.
2024-12-19 19:04:13 set_voltage_by_steps to 1500.
2024-12-19 19:04:16 power on
2024-12-19 19:04:31 bad chain id = 3
2024-12-19 19:04:33 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 19:04:33 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 19:04:35 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 19:04:35 reach max restart times
2024-12-19 19:04:37 start up min temp by 75a = 21
2024-12-19 19:04:38 Version num 65536
2024-12-19 19:04:38 Mask num 0x1fffe000
2024-12-19 19:04:38 Note: addrInterval or corenum is not initialized.
2024-12-19 19:04:47 Chain[0]: find 0 asic, times 0
2024-12-19 19:04:52 Chain[0]: find 0 asic, times 1
2024-12-19 19:04:56 Chain[0]: find 0 asic, times 2
2024-12-19 19:04:56 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 19:04:56 Sweep error string = J1:2.
2024-12-19 19:04:56 ERROR_ASIC_NUM: asic number is not right
2024-12-19 19:04:56 stop_mining: asic number is not right
2024-12-19 19:04:56 uninit_temp_info
2024-12-19 19:04:56 do not read temp anymore...
2024-12-19 19:04:56 uninit_asic_temp_vol_info
2024-12-19 19:04:56 do not read asic_temp_vol anymore...
2024-12-19 19:04:56 cancel thread thread_id_rd_nonce_reg
2024-12-19 19:04:56 ****power off hashboard****
2024-12-19 19:04:56 power off
2024-12-19 19:04:57 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 19:04:57 temp monitor thread exit
2024-12-19 19:04:57 ERROR_SOC_INIT: soc init failed!
2024-12-19 19:04:57 reach max restart times
2015-01-01 00:00:15 Open miner sn file /config/mac error
2015-01-01 00:00:15 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2015-01-01 00:00:17 This is fix-freq version
2015-01-01 00:00:17 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21
2015-01-01 00:00:17 Miner sn: HQDZF2UBDJBBA05ZR
2015-01-01 00:00:17 commit version: 62efe336 2024-08-15 13:07:46, build by: jenkins 2024-09-26 12:04:12
2015-01-01 00:00:17 opt_multi_version     = 1
2015-01-01 00:00:17 opt_bitmain_ab        = 1
2015-01-01 00:00:17 mid_auto_gen          = 1
2015-01-01 00:00:17 opt_bitmain_work_mode = 0
2015-01-01 00:00:17 port 439 already exported
2015-01-01 00:00:17 port 454 already exported
2015-01-01 00:00:17 port 440 already exported
2015-01-01 00:00:17 port 455 already exported
2015-01-01 00:00:17 port 441 already exported
2015-01-01 00:00:17 port 456 already exported
2015-01-01 00:00:17 port 438 already exported
2015-01-01 00:00:17 port 453 already exported
2015-01-01 00:00:17 port 446 already exported
2015-01-01 00:00:17 port 445 already exported
2015-01-01 00:00:17 Note: front fan is power on!
2015-01-01 00:00:17 Note: rear fan is power on!
2015-01-01 00:00:17 start the http server
2015-01-01 00:00:17 httpserver:6060 started ok
2015-01-01 00:00:17 get test_loop_securely_find_asic_num failed
2015-01-01 00:00:17 abandon mix board!
2015-01-01 00:00:17 get mix boardname[0][BHB68701], name:BHB68701
2015-01-01 00:00:17 bad chain id = 3
2015-01-01 00:00:20 bad chain id = 3
2015-01-01 00:00:22 power on
2024-12-19 19:39:11 power off
2024-12-19 19:39:12 ==========================capability start==========================
2024-12-19 19:39:12 board num = 3
2024-12-19 19:39:12 board id = 0, chain num = 1
2024-12-19 19:39:12    chain id = 0
2024-12-19 19:39:12 board id = 1, chain num = 1
2024-12-19 19:39:12    chain id = 1
2024-12-19 19:39:12 board id = 2, chain num = 1
2024-12-19 19:39:12    chain id = 2
2024-12-19 19:39:12 ==========================capability end============================
2024-12-19 19:39:12 chain num = 3
2024-12-19 19:39:12 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 19:39:12 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 19:39:12 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 19:39:15 load chain 0 eeprom data
2024-12-19 19:39:19 load chain 1 eeprom data
2024-12-19 19:39:22 load chain 2 eeprom data
2024-12-19 19:39:22 eeprom load ret:0
2024-12-19 19:39:22 miner:BHB68701,board_name:BHB68701
2024-12-19 19:39:22 create thread get_nonce_and_register_thread
2024-12-19 19:39:22 fixed working voltage = 1360
2024-12-19 19:39:22 Chain

• PCB Version: 0x0100

2024-12-19 19:39:22 Chain

• BOM Version: 0x0000

2024-12-19 19:39:22 Chain [1] PCB Version: 0x0100
2024-12-19 19:39:22 Chain [1] BOM Version: 0x0000
2024-12-19 19:39:22 Chain [2] PCB Version: 0x0100
2024-12-19 19:39:22 Chain [2] BOM Version: 0x0000
2024-12-19 19:39:22 bad chain id = 3
2024-12-19 19:39:25 Fan check passed.
2024-12-19 19:39:25 init fan pid target=65
2024-12-19 19:39:25 max sensor num = 4
2024-12-19 19:39:25 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 19:39:25 temperature_monitor_thread start...
2024-12-19 19:39:25 STATUS_INITED: soc init done!
2024-12-19 19:39:25 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 19:39:25 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 19:39:25 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 19:39:25 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 19:39:25 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 19:39:25 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 19:39:27 start to init...
2024-12-19 19:39:27 i2c_sim_init start
2024-12-19 19:39:27 init gpio477
2024-12-19 19:39:27 init gpio476
2024-12-19 19:39:27 i2c_sim_init end
2024-12-19 19:39:32 get power version failed
2024-12-19 19:39:32 check power version failed, use v2 protocal to try it again
2024-12-19 19:39:33 power open power_version = 0x6a
2024-12-19 19:39:38 get power version failed
2024-12-19 19:39:38 power fw_version = 0x80000300
2024-12-19 19:39:42 power calibration data:
2024-12-19 19:39:42  9  B 92 41
2024-12-19 19:39:42 A5 71 FC 47
2024-12-19 19:39:42 29 26 EC DB
2024-12-19 19:39:42 FF D3  0 FF
2024-12-19 19:39:42  0 FE FF  0
2024-12-19 19:39:42  0 FE  0 80
2024-12-19 19:39:42 80 80 80 80
2024-12-19 19:39:42 1F E0 3F 45
2024-12-19 19:39:45 calibration data 1  15.520556    15.555556
2024-12-19 19:39:45 calibration data 2  15.075111    15.111111
2024-12-19 19:39:45 calibration data 3  14.628667    14.666667
2024-12-19 19:39:45 calibration data 4  14.183222    14.222222
2024-12-19 19:39:45 calibration data 5  13.737778    13.777778
2024-12-19 19:39:45 calibration data 6  13.293333    13.333333
2024-12-19 19:39:45 calibration data 7  12.848889    12.888889
2024-12-19 19:39:45 calibration data 8  12.402444    12.444444
2024-12-19 19:39:45 calibration data 9  11.957000    12.000000
2024-12-19 19:39:45 power is Calibrated
2024-12-19 19:39:45 power sn:KLKT343BDJBBF2123
2024-12-19 19:39:45 enable_power_calibration,calibration date:211208.
2024-12-19 19:39:50 get power version failed
2024-12-19 19:39:50 check power version failed, use v2 protocal to try it again
2024-12-19 19:39:52 power type version: 0x006a
2024-12-19 19:39:52 power history status: -1
2024-12-19 19:39:53 disable power watchdog: 0x0000
2024-12-19 19:39:54 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 19:40:24 Slept 30 seconds, diff = 0.
2024-12-19 19:40:34 set_voltage_by_steps to 1500.
2024-12-19 19:40:37 power on

[NotFuzzyWarm]

For god's sake please edit that text wall using the code tag! It is the hash # symbol. The code tag makes things much more readable.

[philipma1957]

I checked the power bard that feed the hashboards and they were 0V

I think that the controller is stopping the power supply to deliver 14v to the hashboards

Here is the Log History:

Code:

2024-12-19 10:20:00 Mask num 0x1fffe000
2024-12-19 10:20:00 Note: addrInterval or corenum is not initialized.
2024-12-19 10:20:10 Chain[0]: find 0 asic, times 0
2024-12-19 10:20:15 Chain[0]: find 0 asic, times 1
2024-12-19 10:20:20 Chain[0]: find 0 asic, times 2
2024-12-19 10:20:20 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 10:20:20 Sweep error string = J1:2.
2024-12-19 10:20:20 ERROR_ASIC_NUM: asic number is not right
2024-12-19 10:20:20 stop_mining: asic number is not right
2024-12-19 10:20:20 uninit_temp_info
2024-12-19 10:20:20 do not read temp anymore...
2024-12-19 10:20:20 uninit_asic_temp_vol_info
2024-12-19 10:20:20 do not read asic_temp_vol anymore...
2024-12-19 10:20:20 cancel thread thread_id_rd_nonce_reg
2024-12-19 10:20:20 ****power off hashboard****
2024-12-19 10:20:20 power off
2024-12-19 10:20:20 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 10:20:20 temp monitor thread exit
2024-12-19 10:20:21 ERROR_SOC_INIT: soc init failed!
2024-12-19 10:20:21 reach max restart times
2015-01-01 00:00:15 Open miner sn file /config/mac error
2015-01-01 00:00:15 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2015-01-01 00:00:17 This is fix-freq version
2015-01-01 00:00:17 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2015-01-01 00:00:17 Miner sn: HQDZF2UBDJBBA05ZR
2015-01-01 00:00:17 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2015-01-01 00:00:17 opt_multi_version     = 1
2015-01-01 00:00:17 opt_bitmain_ab        = 1
2015-01-01 00:00:17 mid_auto_gen          = 1
2015-01-01 00:00:17 opt_bitmain_work_mode = 0
2015-01-01 00:00:17 port 439 already exported
2015-01-01 00:00:17 port 454 already exported
2015-01-01 00:00:17 port 440 already exported
2015-01-01 00:00:17 port 455 already exported
2015-01-01 00:00:17 port 441 already exported
2015-01-01 00:00:17 port 456 already exported
2015-01-01 00:00:17 port 438 already exported
2015-01-01 00:00:17 port 453 already exported
2015-01-01 00:00:17 port 446 already exported
2015-01-01 00:00:17 port 445 already exported
2015-01-01 00:00:17 Note: front fan is power on!
2015-01-01 00:00:17 Note: rear fan is power on!
2015-01-01 00:00:17 start the http server
2015-01-01 00:00:17 httpserver:6060 started ok
2015-01-01 00:00:17 get test_loop_securely_find_asic_num failed
2015-01-01 00:00:17 abandon mix board!
2015-01-01 00:00:17 get mix boardname[0][BHB68701], name:BHB68701
2015-01-01 00:00:17 bad chain id = 3
2015-01-01 00:00:20 bad chain id = 3
2015-01-01 00:00:22 power on
2024-12-19 15:42:19 power off
2024-12-19 15:42:20 ==========================capability start==========================
2024-12-19 15:42:20 board num = 3
2024-12-19 15:42:20 board id = 0, chain num = 1
2024-12-19 15:42:20 	chain id = 0
2024-12-19 15:42:20 board id = 1, chain num = 1
2024-12-19 15:42:20 	chain id = 1
2024-12-19 15:42:20 board id = 2, chain num = 1
2024-12-19 15:42:20 	chain id = 2
2024-12-19 15:42:20 ==========================capability end============================
2024-12-19 15:42:20 chain num = 3
2024-12-19 15:42:20 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 15:42:20 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 15:42:20 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 15:42:24 load chain 0 eeprom data
2024-12-19 15:42:27 load chain 1 eeprom data
2024-12-19 15:42:30 load chain 2 eeprom data
2024-12-19 15:42:30 eeprom load ret:0
2024-12-19 15:42:30 miner:BHB68701,board_name:BHB68701
2024-12-19 15:42:30 create thread get_nonce_and_register_thread
2024-12-19 15:42:30 fixed working voltage = 1360
2024-12-19 15:42:30 Chain [0] PCB Version: 0x0100
2024-12-19 15:42:30 Chain [0] BOM Version: 0x0000
2024-12-19 15:42:30 Chain [1] PCB Version: 0x0100
2024-12-19 15:42:30 Chain [1] BOM Version: 0x0000
2024-12-19 15:42:30 Chain [2] PCB Version: 0x0100
2024-12-19 15:42:30 Chain [2] BOM Version: 0x0000
2024-12-19 15:42:30 bad chain id = 3
2024-12-19 15:42:33 Fan check passed.
2024-12-19 15:42:33 init fan pid target=65
2024-12-19 15:42:33 max sensor num = 4
2024-12-19 15:42:33 temperature_monitor_thread start...
2024-12-19 15:42:33 STATUS_INITED: soc init done!
2024-12-19 15:42:33 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 15:42:33 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 15:42:33 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 15:42:33 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 15:42:33 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 15:42:33 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 15:42:33 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 15:42:36 start to init...
2024-12-19 15:42:36 i2c_sim_init start
2024-12-19 15:42:36 init gpio477
2024-12-19 15:42:36 init gpio476
2024-12-19 15:42:36 i2c_sim_init end
2024-12-19 15:42:41 get power version failed
2024-12-19 15:42:41 check power version failed, use v2 protocal to try it again
2024-12-19 15:42:43 power open power_version = 0x6a
2024-12-19 15:42:46 power calibration data:
2024-12-19 15:42:46  9  B 92 41
2024-12-19 15:42:46 A5 71 FC 47
2024-12-19 15:42:46 29 26 EC DB
2024-12-19 15:42:46 FF D3  0 FF
2024-12-19 15:42:46  0 FE FF  0
2024-12-19 15:42:46  0 FE  0 80
2024-12-19 15:42:46 80 80 80 80
2024-12-19 15:42:46 1F E0 3F 45
2024-12-19 15:42:50 calibration data 1  15.520556    15.555556
2024-12-19 15:42:50 calibration data 2  15.075111    15.111111
2024-12-19 15:42:50 calibration data 3  14.628667    14.666667
2024-12-19 15:42:50 calibration data 4  14.183222    14.222222
2024-12-19 15:42:50 calibration data 5  13.737778    13.777778
2024-12-19 15:42:50 calibration data 6  13.293333    13.333333
2024-12-19 15:42:50 calibration data 7  12.848889    12.888889
2024-12-19 15:42:50 calibration data 8  12.402444    12.444444
2024-12-19 15:42:50 calibration data 9  11.957000    12.000000
2024-12-19 15:42:50 power is Calibrated
2024-12-19 15:42:50 power sn:KLKT343BDJBBF2123
2024-12-19 15:42:50 enable_power_calibration,calibration date:211208.
2024-12-19 15:42:54 get power version failed
2024-12-19 15:42:54 check power version failed, use v2 protocal to try it again
2024-12-19 15:42:56 power type version: 0x006a
2024-12-19 15:42:56 power history status: -1
2024-12-19 15:42:58 disable power watchdog: 0x0000
2024-12-19 15:42:59 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 15:43:29 Slept 30 seconds, diff = 0.
2024-12-19 15:43:39 set_voltage_by_steps to 1500.
2024-12-19 15:43:41 power on
2024-12-19 15:43:56 bad chain id = 3
2024-12-19 15:43:59 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 15:43:59 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 15:44:01 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 15:44:01 reach max restart times
2024-12-19 15:44:02 Version num 65536
2024-12-19 15:44:02 Mask num 0x1fffe000
2024-12-19 15:44:02 Note: addrInterval or corenum is not initialized.
2024-12-19 15:44:03 start up min temp by 75a = 20
2024-12-19 15:44:12 Chain[0]: find 0 asic, times 0
2024-12-19 15:44:17 Chain[0]: find 0 asic, times 1
2024-12-19 15:44:22 Chain[0]: find 0 asic, times 2
2024-12-19 15:44:22 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 15:44:22 Sweep error string = J1:2.
2024-12-19 15:44:22 ERROR_ASIC_NUM: asic number is not right
2024-12-19 15:44:22 stop_mining: asic number is not right
2024-12-19 15:44:22 uninit_temp_info
2024-12-19 15:44:22 do not read temp anymore...
2024-12-19 15:44:22 uninit_asic_temp_vol_info
2024-12-19 15:44:22 do not read asic_temp_vol anymore...
2024-12-19 15:44:22 cancel thread thread_id_rd_nonce_reg
2024-12-19 15:44:22 ****power off hashboard****
2024-12-19 15:44:22 power off
2024-12-19 15:44:22 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 15:44:23 temp monitor thread exit
2024-12-19 15:44:23 ERROR_SOC_INIT: soc init failed!
2024-12-19 15:44:23 reach max restart times
2015-01-01 00:00:15 Open miner sn file /config/mac error
2015-01-01 00:00:15 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2015-01-01 00:00:17 This is fix-freq version
2015-01-01 00:00:17 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2015-01-01 00:00:17 Miner sn: HQDZF2UBDJBBA05ZR
2015-01-01 00:00:17 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2015-01-01 00:00:17 opt_multi_version     = 1
2015-01-01 00:00:17 opt_bitmain_ab        = 1
2015-01-01 00:00:17 mid_auto_gen          = 1
2015-01-01 00:00:17 opt_bitmain_work_mode = 0
2015-01-01 00:00:17 port 439 already exported
2015-01-01 00:00:17 port 454 already exported
2015-01-01 00:00:17 port 440 already exported
2015-01-01 00:00:17 port 455 already exported
2015-01-01 00:00:17 port 441 already exported
2015-01-01 00:00:17 port 456 already exported
2015-01-01 00:00:17 port 438 already exported
2015-01-01 00:00:17 port 453 already exported
2015-01-01 00:00:17 port 446 already exported
2015-01-01 00:00:17 port 445 already exported
2015-01-01 00:00:17 Note: front fan is power on!
2015-01-01 00:00:17 Note: rear fan is power on!
2015-01-01 00:00:17 start the http server
2015-01-01 00:00:17 httpserver:6060 started ok
2015-01-01 00:00:17 get test_loop_securely_find_asic_num failed
2015-01-01 00:00:17 abandon mix board!
2015-01-01 00:00:17 get mix boardname[0][BHB68701], name:BHB68701
2015-01-01 00:00:17 bad chain id = 3
2015-01-01 00:00:20 bad chain id = 3
2015-01-01 00:00:22 power on
2024-12-19 18:12:25 power off
2024-12-19 18:12:26 ==========================capability start==========================
2024-12-19 18:12:26 board num = 3
2024-12-19 18:12:26 board id = 0, chain num = 1
2024-12-19 18:12:26 	chain id = 0
2024-12-19 18:12:26 board id = 1, chain num = 1
2024-12-19 18:12:26 	chain id = 1
2024-12-19 18:12:26 board id = 2, chain num = 1
2024-12-19 18:12:26 	chain id = 2
2024-12-19 18:12:26 ==========================capability end============================
2024-12-19 18:12:26 chain num = 3
2024-12-19 18:12:26 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:12:26 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:12:26 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:12:29 load chain 0 eeprom data
2024-12-19 18:12:33 load chain 1 eeprom data
2024-12-19 18:12:36 load chain 2 eeprom data
2024-12-19 18:12:36 eeprom load ret:0
2024-12-19 18:12:36 miner:BHB68701,board_name:BHB68701
2024-12-19 18:12:36 create thread get_nonce_and_register_thread
2024-12-19 18:12:36 fixed working voltage = 1360
2024-12-19 18:12:36 Chain [0] PCB Version: 0x0100
2024-12-19 18:12:36 Chain [0] BOM Version: 0x0000
2024-12-19 18:12:36 Chain [1] PCB Version: 0x0100
2024-12-19 18:12:36 Chain [1] BOM Version: 0x0000
2024-12-19 18:12:36 Chain [2] PCB Version: 0x0100
2024-12-19 18:12:36 Chain [2] BOM Version: 0x0000
2024-12-19 18:12:36 bad chain id = 3
2024-12-19 18:12:39 Fan check passed.
2024-12-19 18:12:39 init fan pid target=65
2024-12-19 18:12:39 max sensor num = 4
2024-12-19 18:12:39 STATUS_INITED: soc init done!
2024-12-19 18:12:39 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:12:39 temperature_monitor_thread start...
2024-12-19 18:12:39 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:12:39 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:12:39 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:12:39 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:12:39 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:12:39 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:12:42 start to init...
2024-12-19 18:12:42 i2c_sim_init start
2024-12-19 18:12:42 init gpio477
2024-12-19 18:12:42 init gpio476
2024-12-19 18:12:42 i2c_sim_init end
2024-12-19 18:12:47 get power version failed
2024-12-19 18:12:47 check power version failed, use v2 protocal to try it again
2024-12-19 18:12:48 power open power_version = 0x6a
2024-12-19 18:12:52 power calibration data:
2024-12-19 18:12:52  9  B 92 41
2024-12-19 18:12:52 A5 71 FC 47
2024-12-19 18:12:52 29 26 EC DB
2024-12-19 18:12:52 FF D3  0 FF
2024-12-19 18:12:52  0 FE FF  0
2024-12-19 18:12:52  0 FE  0 80
2024-12-19 18:12:52 80 80 80 80
2024-12-19 18:12:52 1F E0 3F 45
2024-12-19 18:12:55 calibration data 1  15.520556    15.555556
2024-12-19 18:12:55 calibration data 2  15.075111    15.111111
2024-12-19 18:12:55 calibration data 3  14.628667    14.666667
2024-12-19 18:12:55 calibration data 4  14.183222    14.222222
2024-12-19 18:12:55 calibration data 5  13.737778    13.777778
2024-12-19 18:12:55 calibration data 6  13.293333    13.333333
2024-12-19 18:12:55 calibration data 7  12.848889    12.888889
2024-12-19 18:12:55 calibration data 8  12.402444    12.444444
2024-12-19 18:12:55 calibration data 9  11.957000    12.000000
2024-12-19 18:12:55 power is Calibrated
2024-12-19 18:12:55 power sn:KLKT343BDJBBF2123
2024-12-19 18:12:55 enable_power_calibration,calibration date:211208.
2024-12-19 18:13:00 get power version failed
2024-12-19 18:13:00 check power version failed, use v2 protocal to try it again
2024-12-19 18:13:02 power type version: 0x006a
2024-12-19 18:13:02 power history status: -1
2024-12-19 18:13:03 disable power watchdog: 0x0000
2024-12-19 18:13:04 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:13:34 Slept 30 seconds, diff = 1.
2024-12-19 18:13:44 set_voltage_by_steps to 1500.
2024-12-19 18:13:47 power on
2024-12-19 18:14:02 bad chain id = 3
2024-12-19 18:14:05 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:14:05 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:14:07 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:14:07 reach max restart times
2024-12-19 18:14:08 start up min temp by 75a = 22
2024-12-19 18:14:18 Chain[0]: find 0 asic, times 0
2024-12-19 18:14:23 Chain[0]: find 0 asic, times 1
2024-12-19 18:14:28 Chain[0]: find 0 asic, times 2
2024-12-19 18:14:28 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 18:14:28 Sweep error string = J1:2.
2024-12-19 18:14:28 ERROR_ASIC_NUM: asic number is not right
2024-12-19 18:14:28 stop_mining: asic number is not right
2024-12-19 18:14:28 uninit_temp_info
2024-12-19 18:14:28 do not read temp anymore...
2024-12-19 18:14:28 uninit_asic_temp_vol_info
2024-12-19 18:14:28 do not read asic_temp_vol anymore...
2024-12-19 18:14:28 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:14:28 ****power off hashboard****
2024-12-19 18:14:28 power off
2024-12-19 18:14:28 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:14:28 temp monitor thread exit
2024-12-19 18:14:29 ERROR_SOC_INIT: soc init failed!
2024-12-19 18:14:29 reach max restart times
2024-12-19 18:14:32 Version num 65536
2024-12-19 18:14:32 Mask num 0x1fffe000
2024-12-19 18:14:32 Note: addrInterval or corenum is not initialized.
2024-12-19 18:20:39 ****power off hashboard****
2024-12-19 18:20:39 power off
2024-12-19 18:20:55 Open miner sn file /config/mac error
2024-12-19 18:20:55 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 18:20:57 This is fix-freq version
2024-12-19 18:20:57 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2024-12-19 18:20:57 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 18:20:57 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2024-12-19 18:20:57 opt_multi_version     = 1
2024-12-19 18:20:57 opt_bitmain_ab        = 1
2024-12-19 18:20:57 mid_auto_gen          = 1
2024-12-19 18:20:57 opt_bitmain_work_mode = 0
2024-12-19 18:20:57 port 439 already exported
2024-12-19 18:20:57 port 454 already exported
2024-12-19 18:20:57 port 440 already exported
2024-12-19 18:20:57 port 455 already exported
2024-12-19 18:20:57 port 441 already exported
2024-12-19 18:20:57 port 456 already exported
2024-12-19 18:20:57 port 438 already exported
2024-12-19 18:20:57 port 453 already exported
2024-12-19 18:20:57 port 446 already exported
2024-12-19 18:20:57 port 445 already exported
2024-12-19 18:20:57 Note: front fan is power on!
2024-12-19 18:20:57 Note: rear fan is power on!
2024-12-19 18:20:57 start the http server
2024-12-19 18:20:57 httpserver:6060 started ok
2024-12-19 18:20:57 get test_loop_securely_find_asic_num failed
2024-12-19 18:20:57 abandon mix board!
2024-12-19 18:20:57 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 18:20:57 bad chain id = 3
2024-12-19 18:21:00 bad chain id = 3
2024-12-19 18:21:02 power on
2024-12-19 18:21:16 power off
2024-12-19 18:21:17 ==========================capability start==========================
2024-12-19 18:21:17 board num = 3
2024-12-19 18:21:17 board id = 0, chain num = 1
2024-12-19 18:21:17 	chain id = 0
2024-12-19 18:21:17 board id = 1, chain num = 1
2024-12-19 18:21:17 	chain id = 1
2024-12-19 18:21:17 board id = 2, chain num = 1
2024-12-19 18:21:17 	chain id = 2
2024-12-19 18:21:17 ==========================capability end============================
2024-12-19 18:21:17 chain num = 3
2024-12-19 18:21:17 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:21:17 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:21:17 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:21:20 load chain 0 eeprom data
2024-12-19 18:21:24 load chain 1 eeprom data
2024-12-19 18:21:27 load chain 2 eeprom data
2024-12-19 18:21:27 eeprom load ret:0
2024-12-19 18:21:27 miner:BHB68701,board_name:BHB68701
2024-12-19 18:21:27 create thread get_nonce_and_register_thread
2024-12-19 18:21:27 fixed working voltage = 1360
2024-12-19 18:21:27 Chain [0] PCB Version: 0x0100
2024-12-19 18:21:27 Chain [0] BOM Version: 0x0000
2024-12-19 18:21:27 Chain [1] PCB Version: 0x0100
2024-12-19 18:21:27 Chain [1] BOM Version: 0x0000
2024-12-19 18:21:27 Chain [2] PCB Version: 0x0100
2024-12-19 18:21:27 Chain [2] BOM Version: 0x0000
2024-12-19 18:21:27 bad chain id = 3
2024-12-19 18:21:30 Fan check passed.
2024-12-19 18:21:30 init fan pid target=65
2024-12-19 18:21:30 max sensor num = 4
2024-12-19 18:21:30 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:21:30 STATUS_INITED: soc init done!
2024-12-19 18:21:30 temperature_monitor_thread start...
2024-12-19 18:21:30 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:21:30 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:21:30 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:21:30 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:21:30 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:21:30 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:23:02 cmd : set_miner_conf
2024-12-19 18:23:03 read ret 0 byte , ret =
2024-12-19 18:23:04 reload pool, need recalculate
2024-12-19 18:23:04 set_start_time_point total_tv_start_sys=139 total_tv_end_sys=140
2024-12-19 18:23:05 start to init...
2024-12-19 18:23:05 i2c_sim_init start
2024-12-19 18:23:05 init gpio477
2024-12-19 18:23:05 init gpio476
2024-12-19 18:23:05 i2c_sim_init end
2024-12-19 18:23:10 get power version failed
2024-12-19 18:23:10 check power version failed, use v2 protocal to try it again
2024-12-19 18:23:11 power open power_version = 0x6a
2024-12-19 18:23:15 power calibration data:
2024-12-19 18:23:15  9  B 92 41
2024-12-19 18:23:15 A5 71 FC 47
2024-12-19 18:23:15 29 26 EC DB
2024-12-19 18:23:15 FF D3  0 FF
2024-12-19 18:23:15  0 FE FF  0
2024-12-19 18:23:15  0 FE  0 80
2024-12-19 18:23:15 80 80 80 80
2024-12-19 18:23:15 1F E0 3F 45
2024-12-19 18:23:18 calibration data 1  15.520556    15.555556
2024-12-19 18:23:18 calibration data 2  15.075111    15.111111
2024-12-19 18:23:18 calibration data 3  14.628667    14.666667
2024-12-19 18:23:18 calibration data 4  14.183222    14.222222
2024-12-19 18:23:18 calibration data 5  13.737778    13.777778
2024-12-19 18:23:18 calibration data 6  13.293333    13.333333
2024-12-19 18:23:18 calibration data 7  12.848889    12.888889
2024-12-19 18:23:18 calibration data 8  12.402444    12.444444
2024-12-19 18:23:18 calibration data 9  11.957000    12.000000
2024-12-19 18:23:18 power is Calibrated
2024-12-19 18:23:18 power sn:KLKT343BDJBBF2123
2024-12-19 18:23:18 enable_power_calibration,calibration date:211208.
2024-12-19 18:23:23 get power version failed
2024-12-19 18:23:23 check power version failed, use v2 protocal to try it again
2024-12-19 18:23:25 power type version: 0x006a
2024-12-19 18:23:25 power history status: -1
2024-12-19 18:23:26 disable power watchdog: 0x0000
2024-12-19 18:23:27 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:23:57 Slept 30 seconds, diff = 1.
2024-12-19 18:24:07 set_voltage_by_steps to 1500.
2024-12-19 18:24:10 power on
2024-12-19 18:24:25 bad chain id = 3
2024-12-19 18:24:28 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:24:28 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:24:29 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:24:29 fail to open counter file, err:No such file or directory
2024-12-19 18:24:30 Version num 65536
2024-12-19 18:24:30 Mask num 0x1fffe000
2024-12-19 18:24:30 Note: addrInterval or corenum is not initialized.
2024-12-19 18:24:59 stop_mining_and_restart: power voltage read failed, pls check!
2024-12-19 18:24:59 uninit_temp_info
2024-12-19 18:24:59 do not read temp anymore...
2024-12-19 18:24:59 uninit_asic_temp_vol_info
2024-12-19 18:24:59 do not read asic_temp_vol anymore...
2024-12-19 18:24:59 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:24:59 ****power off hashboard****
2024-12-19 18:24:59 power off
2024-12-19 18:25:00 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:25:00 temp monitor thread exit
2024-12-19 18:25:01 restart
2024-12-19 18:25:01 ****power off hashboard****
2024-12-19 18:25:01 power off
2024-12-19 18:25:32 httpserver6060 quit!
2024-12-19 18:25:47 Open miner sn file /config/mac error
2024-12-19 18:25:47 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 18:25:48 This is fix-freq version
2024-12-19 18:25:48 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2024-12-19 18:25:48 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 18:25:48 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2024-12-19 18:25:48 opt_multi_version     = 1
2024-12-19 18:25:48 opt_bitmain_ab        = 1
2024-12-19 18:25:48 mid_auto_gen          = 1
2024-12-19 18:25:48 opt_bitmain_work_mode = 0
2024-12-19 18:25:48 port 439 already exported
2024-12-19 18:25:48 port 454 already exported
2024-12-19 18:25:48 port 440 already exported
2024-12-19 18:25:48 port 455 already exported
2024-12-19 18:25:48 port 441 already exported
2024-12-19 18:25:48 port 456 already exported
2024-12-19 18:25:48 port 438 already exported
2024-12-19 18:25:48 port 453 already exported
2024-12-19 18:25:48 port 446 already exported
2024-12-19 18:25:48 port 445 already exported
2024-12-19 18:25:48 Note: front fan is power on!
2024-12-19 18:25:48 Note: rear fan is power on!
2024-12-19 18:25:48 start the http server
2024-12-19 18:25:48 httpserver:6060 started ok
2024-12-19 18:25:48 get test_loop_securely_find_asic_num failed
2024-12-19 18:25:48 abandon mix board!
2024-12-19 18:25:48 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 18:25:48 bad chain id = 3
2024-12-19 18:25:51 bad chain id = 3
2024-12-19 18:25:53 power on
2024-12-19 18:26:06 power off
2024-12-19 18:26:07 ==========================capability start==========================
2024-12-19 18:26:07 board num = 3
2024-12-19 18:26:07 board id = 0, chain num = 1
2024-12-19 18:26:07 	chain id = 0
2024-12-19 18:26:07 board id = 1, chain num = 1
2024-12-19 18:26:07 	chain id = 1
2024-12-19 18:26:07 board id = 2, chain num = 1
2024-12-19 18:26:07 	chain id = 2
2024-12-19 18:26:07 ==========================capability end============================
2024-12-19 18:26:07 chain num = 3
2024-12-19 18:26:07 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:26:07 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:26:07 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:26:10 load chain 0 eeprom data
2024-12-19 18:26:14 load chain 1 eeprom data
2024-12-19 18:26:17 load chain 2 eeprom data
2024-12-19 18:26:17 eeprom load ret:0
2024-12-19 18:26:17 miner:BHB68701,board_name:BHB68701
2024-12-19 18:26:17 create thread get_nonce_and_register_thread
2024-12-19 18:26:17 fixed working voltage = 1360
2024-12-19 18:26:17 Chain [0] PCB Version: 0x0100
2024-12-19 18:26:17 Chain [0] BOM Version: 0x0000
2024-12-19 18:26:17 Chain [1] PCB Version: 0x0100
2024-12-19 18:26:17 Chain [1] BOM Version: 0x0000
2024-12-19 18:26:17 Chain [2] PCB Version: 0x0100
2024-12-19 18:26:17 Chain [2] BOM Version: 0x0000
2024-12-19 18:26:17 bad chain id = 3
2024-12-19 18:26:20 Fan check passed.
2024-12-19 18:26:20 init fan pid target=65
2024-12-19 18:26:20 max sensor num = 4
2024-12-19 18:26:20 STATUS_INITED: soc init done!
2024-12-19 18:26:20 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:26:20 temperature_monitor_thread start...
2024-12-19 18:26:20 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:26:20 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:26:20 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:26:20 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:26:20 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:26:20 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:26:23 start to init...
2024-12-19 18:26:23 i2c_sim_init start
2024-12-19 18:26:23 i2c_sim_init end
2024-12-19 18:26:28 get power version failed
2024-12-19 18:26:28 check power version failed, use v2 protocal to try it again
2024-12-19 18:26:29 power open power_version = 0x6a
2024-12-19 18:26:33 power calibration data:
2024-12-19 18:26:33  9  B 92 41
2024-12-19 18:26:33 A5 71 FC 47
2024-12-19 18:26:33 29 26 EC DB
2024-12-19 18:26:33 FF D3  0 FF
2024-12-19 18:26:33  0 FE FF  0
2024-12-19 18:26:33  0 FE  0 80
2024-12-19 18:26:33 80 80 80 80
2024-12-19 18:26:33 1F E0 3F 45
2024-12-19 18:26:36 calibration data 1  15.520556    15.555556
2024-12-19 18:26:36 calibration data 2  15.075111    15.111111
2024-12-19 18:26:36 calibration data 3  14.628667    14.666667
2024-12-19 18:26:36 calibration data 4  14.183222    14.222222
2024-12-19 18:26:36 calibration data 5  13.737778    13.777778
2024-12-19 18:26:36 calibration data 6  13.293333    13.333333
2024-12-19 18:26:36 calibration data 7  12.848889    12.888889
2024-12-19 18:26:36 calibration data 8  12.402444    12.444444
2024-12-19 18:26:36 calibration data 9  11.957000    12.000000
2024-12-19 18:26:36 power is Calibrated
2024-12-19 18:26:36 power sn:KLKT343BDJBBF2123
2024-12-19 18:26:36 enable_power_calibration,calibration date:211208.
2024-12-19 18:26:41 get power version failed
2024-12-19 18:26:41 check power version failed, use v2 protocal to try it again
2024-12-19 18:26:43 power type version: 0x006a
2024-12-19 18:26:43 power history status: -1
2024-12-19 18:26:44 disable power watchdog: 0x0000
2024-12-19 18:26:45 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:27:15 Slept 30 seconds, diff = 1.
2024-12-19 18:27:25 set_voltage_by_steps to 1500.
2024-12-19 18:27:28 power on
2024-12-19 18:27:43 bad chain id = 3
2024-12-19 18:27:46 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:27:46 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:27:47 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:28:03 Version num 65536
2024-12-19 18:28:03 Mask num 0x1fffe000
2024-12-19 18:28:03 Note: addrInterval or corenum is not initialized.
2024-12-19 18:28:17 stop_mining_and_restart: power voltage read failed, pls check!
2024-12-19 18:28:17 uninit_temp_info
2024-12-19 18:28:17 do not read temp anymore...
2024-12-19 18:28:17 uninit_asic_temp_vol_info
2024-12-19 18:28:17 do not read asic_temp_vol anymore...
2024-12-19 18:28:17 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:28:17 ****power off hashboard****
2024-12-19 18:28:17 power off
2024-12-19 18:28:18 temp monitor thread exit
2024-12-19 18:28:18 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:28:18 restart
2024-12-19 18:28:18 ****power off hashboard****
2024-12-19 18:28:18 power off
2024-12-19 18:28:50 httpserver6060 quit!
2024-12-19 18:29:10 Open miner sn file /config/mac error
2024-12-19 18:29:10 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 18:29:12 This is fix-freq version
2024-12-19 18:29:12 Miner compile time: Tue Jul 16 14:39:58 CST 2024 type: Antminer T21
2024-12-19 18:29:12 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 18:29:12 commit version: 02407a8d 2024-04-08 13:24:38, build by: jenkins 2024-07-16 14:59:27
2024-12-19 18:29:12 opt_multi_version     = 1
2024-12-19 18:29:12 opt_bitmain_ab        = 1
2024-12-19 18:29:12 mid_auto_gen          = 1
2024-12-19 18:29:12 opt_bitmain_work_mode = 0
2024-12-19 18:29:12 port 439 already exported
2024-12-19 18:29:12 port 454 already exported
2024-12-19 18:29:12 port 440 already exported
2024-12-19 18:29:12 port 455 already exported
2024-12-19 18:29:12 port 441 already exported
2024-12-19 18:29:12 port 456 already exported
2024-12-19 18:29:12 port 438 already exported
2024-12-19 18:29:12 port 453 already exported
2024-12-19 18:29:12 port 446 already exported
2024-12-19 18:29:12 port 445 already exported
2024-12-19 18:29:12 Note: front fan is power on!
2024-12-19 18:29:12 Note: rear fan is power on!
2024-12-19 18:29:12 start the http server
2024-12-19 18:29:12 httpserver:6060 started ok
2024-12-19 18:29:12 get test_loop_securely_find_asic_num failed
2024-12-19 18:29:12 abandon mix board!
2024-12-19 18:29:12 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 18:29:12 bad chain id = 3
2024-12-19 18:29:15 bad chain id = 3
2024-12-19 18:29:17 power on
2024-12-19 18:29:30 power off
2024-12-19 18:29:31 ==========================capability start==========================
2024-12-19 18:29:31 board num = 3
2024-12-19 18:29:31 board id = 0, chain num = 1
2024-12-19 18:29:31 	chain id = 0
2024-12-19 18:29:31 board id = 1, chain num = 1
2024-12-19 18:29:31 	chain id = 1
2024-12-19 18:29:31 board id = 2, chain num = 1
2024-12-19 18:29:31 	chain id = 2
2024-12-19 18:29:31 ==========================capability end============================
2024-12-19 18:29:31 chain num = 3
2024-12-19 18:29:31 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:29:31 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:29:31 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:29:34 load chain 0 eeprom data
2024-12-19 18:29:37 load chain 1 eeprom data
2024-12-19 18:29:40 load chain 2 eeprom data
2024-12-19 18:29:40 eeprom load ret:0
2024-12-19 18:29:40 miner:BHB68701,board_name:BHB68701
2024-12-19 18:29:40 create thread get_nonce_and_register_thread
2024-12-19 18:29:40 fixed working voltage = 1360
2024-12-19 18:29:40 Chain [0] PCB Version: 0x0100
2024-12-19 18:29:40 Chain [0] BOM Version: 0x0000
2024-12-19 18:29:40 Chain [1] PCB Version: 0x0100
2024-12-19 18:29:40 Chain [1] BOM Version: 0x0000
2024-12-19 18:29:40 Chain [2] PCB Version: 0x0100
2024-12-19 18:29:40 Chain [2] BOM Version: 0x0000
2024-12-19 18:29:40 bad chain id = 3
2024-12-19 18:29:44 Fan check passed.
2024-12-19 18:29:44 init fan pid target=65
2024-12-19 18:29:44 max sensor num = 4
2024-12-19 18:29:44 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:29:44 temperature_monitor_thread start...
2024-12-19 18:29:44 STATUS_INITED: soc init done!
2024-12-19 18:29:44 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:29:44 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:29:44 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:29:44 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:29:44 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:29:44 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:29:47 start to init...
2024-12-19 18:29:47 i2c_sim_init start
2024-12-19 18:29:47 i2c_sim_init end
2024-12-19 18:29:51 get power version failed
2024-12-19 18:29:51 check power version failed, use v2 protocal to try it again
2024-12-19 18:29:53 power open power_version = 0x6a
2024-12-19 18:29:57 power calibration data:
2024-12-19 18:29:57  9  B 92 41
2024-12-19 18:29:57 A5 71 FC 47
2024-12-19 18:29:57 29 26 EC DB
2024-12-19 18:29:57 FF D3  0 FF
2024-12-19 18:29:57  0 FE FF  0
2024-12-19 18:29:57  0 FE  0 80
2024-12-19 18:29:57 80 80 80 80
2024-12-19 18:29:57 1F E0 3F 45
2024-12-19 18:30:00 calibration data 1  15.520556    15.555556
2024-12-19 18:30:00 calibration data 2  15.075111    15.111111
2024-12-19 18:30:00 calibration data 3  14.628667    14.666667
2024-12-19 18:30:00 calibration data 4  14.183222    14.222222
2024-12-19 18:30:00 calibration data 5  13.737778    13.777778
2024-12-19 18:30:00 calibration data 6  13.293333    13.333333
2024-12-19 18:30:00 calibration data 7  12.848889    12.888889
2024-12-19 18:30:00 calibration data 8  12.402444    12.444444
2024-12-19 18:30:00 calibration data 9  11.957000    12.000000
2024-12-19 18:30:00 power is Calibrated
2024-12-19 18:30:00 power sn:KLKT343BDJBBF2123
2024-12-19 18:30:00 enable_power_calibration,calibration date:211208.
2024-12-19 18:30:05 get power version failed
2024-12-19 18:30:05 check power version failed, use v2 protocal to try it again
2024-12-19 18:30:06 power type version: 0x006a
2024-12-19 18:30:06 power history status: -1
2024-12-19 18:30:08 disable power watchdog: 0x0000
2024-12-19 18:30:09 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:30:39 Slept 30 seconds, diff = 1.
2024-12-19 18:30:49 set_voltage_by_steps to 1500.
2024-12-19 18:30:52 power on
2024-12-19 18:31:07 bad chain id = 3
2024-12-19 18:31:09 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:31:09 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:31:11 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:31:11 reach max restart times
2024-12-19 18:31:13 start up min temp by 75a = 21
2024-12-19 18:31:23 Chain[0]: find 0 asic, times 0
2024-12-19 18:31:25 Version num 65536
2024-12-19 18:31:25 Mask num 0x1fffe000
2024-12-19 18:31:25 Note: addrInterval or corenum is not initialized.
2024-12-19 18:31:28 Chain[0]: find 0 asic, times 1
2024-12-19 18:31:32 Chain[0]: find 0 asic, times 2
2024-12-19 18:31:32 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 18:31:32 Sweep error string = J1:2.
2024-12-19 18:31:32 ERROR_ASIC_NUM: asic number is not right
2024-12-19 18:31:32 stop_mining: asic number is not right
2024-12-19 18:31:32 uninit_temp_info
2024-12-19 18:31:32 do not read temp anymore...
2024-12-19 18:31:32 uninit_asic_temp_vol_info
2024-12-19 18:31:32 do not read asic_temp_vol anymore...
2024-12-19 18:31:32 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:31:32 ****power off hashboard****
2024-12-19 18:31:32 power off
2024-12-19 18:31:33 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:31:33 temp monitor thread exit
2024-12-19 18:31:33 ERROR_SOC_INIT: soc init failed!
2024-12-19 18:31:33 reach max restart times
2024-12-19 18:54:22 ****power off hashboard****
2024-12-19 18:54:22 power off
2024-12-19 18:54:53 httpserver6060 quit!
2024-12-19 18:55:29 Open miner sn file /config/mac error
2024-12-19 18:55:29 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 18:55:31 This is fix-freq version
2024-12-19 18:55:31 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21
2024-12-19 18:55:31 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 18:55:31 commit version: 62efe336 2024-08-15 13:07:46, build by: jenkins 2024-09-26 12:04:12
2024-12-19 18:55:31 opt_multi_version     = 1
2024-12-19 18:55:31 opt_bitmain_ab        = 1
2024-12-19 18:55:31 mid_auto_gen          = 1
2024-12-19 18:55:31 opt_bitmain_work_mode = 0
2024-12-19 18:55:31 port 439 already exported
2024-12-19 18:55:31 port 454 already exported
2024-12-19 18:55:31 port 440 already exported
2024-12-19 18:55:31 port 455 already exported
2024-12-19 18:55:31 port 441 already exported
2024-12-19 18:55:31 port 456 already exported
2024-12-19 18:55:31 port 438 already exported
2024-12-19 18:55:31 port 453 already exported
2024-12-19 18:55:31 port 446 already exported
2024-12-19 18:55:31 port 445 already exported
2024-12-19 18:55:31 Note: front fan is power on!
2024-12-19 18:55:31 Note: rear fan is power on!
2024-12-19 18:55:31 start the http server
2024-12-19 18:55:31 httpserver:6060 started ok
2024-12-19 18:55:31 get test_loop_securely_find_asic_num failed
2024-12-19 18:55:31 abandon mix board!
2024-12-19 18:55:31 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 18:55:31 bad chain id = 3
2024-12-19 18:55:34 bad chain id = 3
2024-12-19 18:55:36 power on
2024-12-19 18:55:49 power off
2024-12-19 18:55:51 ==========================capability start==========================
2024-12-19 18:55:51 board num = 3
2024-12-19 18:55:51 board id = 0, chain num = 1
2024-12-19 18:55:51 	chain id = 0
2024-12-19 18:55:51 board id = 1, chain num = 1
2024-12-19 18:55:51 	chain id = 1
2024-12-19 18:55:51 board id = 2, chain num = 1
2024-12-19 18:55:51 	chain id = 2
2024-12-19 18:55:51 ==========================capability end============================
2024-12-19 18:55:51 chain num = 3
2024-12-19 18:55:51 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 18:55:51 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 18:55:51 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 18:55:54 load chain 0 eeprom data
2024-12-19 18:55:57 load chain 1 eeprom data
2024-12-19 18:56:00 load chain 2 eeprom data
2024-12-19 18:56:00 eeprom load ret:0
2024-12-19 18:56:00 miner:BHB68701,board_name:BHB68701
2024-12-19 18:56:00 create thread get_nonce_and_register_thread
2024-12-19 18:56:00 fixed working voltage = 1360
2024-12-19 18:56:00 Chain [0] PCB Version: 0x0100
2024-12-19 18:56:00 Chain [0] BOM Version: 0x0000
2024-12-19 18:56:00 Chain [1] PCB Version: 0x0100
2024-12-19 18:56:00 Chain [1] BOM Version: 0x0000
2024-12-19 18:56:00 Chain [2] PCB Version: 0x0100
2024-12-19 18:56:00 Chain [2] BOM Version: 0x0000
2024-12-19 18:56:00 bad chain id = 3
2024-12-19 18:56:03 Fan check passed.
2024-12-19 18:56:03 init fan pid target=65
2024-12-19 18:56:03 max sensor num = 4
2024-12-19 18:56:03 STATUS_INITED: soc init done!
2024-12-19 18:56:03 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 18:56:03 temperature_monitor_thread start...
2024-12-19 18:56:03 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 18:56:03 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 18:56:03 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 18:56:03 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 18:56:03 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 18:56:03 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 18:56:06 start to init...
2024-12-19 18:56:06 i2c_sim_init start
2024-12-19 18:56:06 init gpio477
2024-12-19 18:56:06 init gpio476
2024-12-19 18:56:06 i2c_sim_init end
2024-12-19 18:56:11 get power version failed
2024-12-19 18:56:11 check power version failed, use v2 protocal to try it again
2024-12-19 18:56:13 power open power_version = 0x6a
2024-12-19 18:56:18 get power version failed
2024-12-19 18:56:18 power fw_version = 0x80000300
2024-12-19 18:56:22 power calibration data:
2024-12-19 18:56:22  9  B 92 41
2024-12-19 18:56:22 A5 71 FC 47
2024-12-19 18:56:22 29 26 EC DB
2024-12-19 18:56:22 FF D3  0 FF
2024-12-19 18:56:22  0 FE FF  0
2024-12-19 18:56:22  0 FE  0 80
2024-12-19 18:56:22 80 80 80 80
2024-12-19 18:56:22 1F E0 3F 45
2024-12-19 18:56:25 calibration data 1  15.520556    15.555556
2024-12-19 18:56:25 calibration data 2  15.075111    15.111111
2024-12-19 18:56:25 calibration data 3  14.628667    14.666667
2024-12-19 18:56:25 calibration data 4  14.183222    14.222222
2024-12-19 18:56:25 calibration data 5  13.737778    13.777778
2024-12-19 18:56:25 calibration data 6  13.293333    13.333333
2024-12-19 18:56:25 calibration data 7  12.848889    12.888889
2024-12-19 18:56:25 calibration data 8  12.402444    12.444444
2024-12-19 18:56:25 calibration data 9  11.957000    12.000000
2024-12-19 18:56:25 power is Calibrated
2024-12-19 18:56:25 power sn:KLKT343BDJBBF2123
2024-12-19 18:56:25 enable_power_calibration,calibration date:211208.
2024-12-19 18:56:30 get power version failed
2024-12-19 18:56:30 check power version failed, use v2 protocal to try it again
2024-12-19 18:56:31 power type version: 0x006a
2024-12-19 18:56:31 power history status: -1
2024-12-19 18:56:33 disable power watchdog: 0x0000
2024-12-19 18:56:34 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 18:57:04 Slept 30 seconds, diff = 0.
2024-12-19 18:57:14 set_voltage_by_steps to 1500.
2024-12-19 18:57:16 power on
2024-12-19 18:57:31 bad chain id = 3
2024-12-19 18:57:34 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 18:57:34 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 18:57:36 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 18:57:36 reach max restart times
2024-12-19 18:57:37 Version num 65536
2024-12-19 18:57:37 Mask num 0x1fffe000
2024-12-19 18:57:37 Note: addrInterval or corenum is not initialized.
2024-12-19 18:57:38 start up min temp by 75a = 21
2024-12-19 18:57:48 Chain[0]: find 0 asic, times 0
2024-12-19 18:57:52 Chain[0]: find 0 asic, times 1
2024-12-19 18:57:57 Chain[0]: find 0 asic, times 2
2024-12-19 18:57:57 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 18:57:57 Sweep error string = J1:2.
2024-12-19 18:57:57 ERROR_ASIC_NUM: asic number is not right
2024-12-19 18:57:57 stop_mining: asic number is not right
2024-12-19 18:57:57 uninit_temp_info
2024-12-19 18:57:57 do not read temp anymore...
2024-12-19 18:57:57 uninit_asic_temp_vol_info
2024-12-19 18:57:57 do not read asic_temp_vol anymore...
2024-12-19 18:57:57 cancel thread thread_id_rd_nonce_reg
2024-12-19 18:57:57 ****power off hashboard****
2024-12-19 18:57:57 power off
2024-12-19 18:57:57 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 18:57:58 temp monitor thread exit
2024-12-19 18:57:58 ERROR_SOC_INIT: soc init failed!
2024-12-19 18:57:58 reach max restart times
2024-12-19 19:01:22 ****power off hashboard****
2024-12-19 19:01:22 power off
2024-12-19 19:01:53 httpserver6060 quit!
2024-12-19 19:02:28 Open miner sn file /config/mac error
2024-12-19 19:02:28 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2024-12-19 19:02:30 This is fix-freq version
2024-12-19 19:02:30 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21
2024-12-19 19:02:30 Miner sn: HQDZF2UBDJBBA05ZR
2024-12-19 19:02:30 commit version: 62efe336 2024-08-15 13:07:46, build by: jenkins 2024-09-26 12:04:12
2024-12-19 19:02:30 opt_multi_version     = 1
2024-12-19 19:02:30 opt_bitmain_ab        = 1
2024-12-19 19:02:30 mid_auto_gen          = 1
2024-12-19 19:02:30 opt_bitmain_work_mode = 0
2024-12-19 19:02:30 port 439 already exported
2024-12-19 19:02:30 port 454 already exported
2024-12-19 19:02:30 port 440 already exported
2024-12-19 19:02:30 port 455 already exported
2024-12-19 19:02:30 port 441 already exported
2024-12-19 19:02:30 port 456 already exported
2024-12-19 19:02:30 port 438 already exported
2024-12-19 19:02:30 port 453 already exported
2024-12-19 19:02:30 port 446 already exported
2024-12-19 19:02:30 port 445 already exported
2024-12-19 19:02:30 Note: front fan is power on!
2024-12-19 19:02:30 Note: rear fan is power on!
2024-12-19 19:02:30 start the http server
2024-12-19 19:02:30 httpserver:6060 started ok
2024-12-19 19:02:30 get test_loop_securely_find_asic_num failed
2024-12-19 19:02:30 abandon mix board!
2024-12-19 19:02:30 get mix boardname[0][BHB68701], name:BHB68701
2024-12-19 19:02:30 bad chain id = 3
2024-12-19 19:02:33 bad chain id = 3
2024-12-19 19:02:35 power on
2024-12-19 19:02:49 power off
2024-12-19 19:02:50 ==========================capability start==========================
2024-12-19 19:02:50 board num = 3
2024-12-19 19:02:50 board id = 0, chain num = 1
2024-12-19 19:02:50 	chain id = 0
2024-12-19 19:02:50 board id = 1, chain num = 1
2024-12-19 19:02:50 	chain id = 1
2024-12-19 19:02:50 board id = 2, chain num = 1
2024-12-19 19:02:50 	chain id = 2
2024-12-19 19:02:50 ==========================capability end============================
2024-12-19 19:02:50 chain num = 3
2024-12-19 19:02:50 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 19:02:50 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 19:02:50 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 19:02:53 load chain 0 eeprom data
2024-12-19 19:02:56 load chain 1 eeprom data
2024-12-19 19:03:00 load chain 2 eeprom data
2024-12-19 19:03:00 eeprom load ret:0
2024-12-19 19:03:00 miner:BHB68701,board_name:BHB68701
2024-12-19 19:03:00 create thread get_nonce_and_register_thread
2024-12-19 19:03:00 fixed working voltage = 1360
2024-12-19 19:03:00 Chain [0] PCB Version: 0x0100
2024-12-19 19:03:00 Chain [0] BOM Version: 0x0000
2024-12-19 19:03:00 Chain [1] PCB Version: 0x0100
2024-12-19 19:03:00 Chain [1] BOM Version: 0x0000
2024-12-19 19:03:00 Chain [2] PCB Version: 0x0100
2024-12-19 19:03:00 Chain [2] BOM Version: 0x0000
2024-12-19 19:03:00 bad chain id = 3
2024-12-19 19:03:03 Fan check passed.
2024-12-19 19:03:03 init fan pid target=65
2024-12-19 19:03:03 max sensor num = 4
2024-12-19 19:03:03 STATUS_INITED: soc init done!
2024-12-19 19:03:03 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 19:03:03 temperature_monitor_thread start...
2024-12-19 19:03:03 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 19:03:03 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 19:03:03 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 19:03:03 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 19:03:03 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 19:03:03 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 19:03:06 start to init...
2024-12-19 19:03:06 i2c_sim_init start
2024-12-19 19:03:06 init gpio477
2024-12-19 19:03:06 init gpio476
2024-12-19 19:03:06 i2c_sim_init end
2024-12-19 19:03:11 get power version failed
2024-12-19 19:03:11 check power version failed, use v2 protocal to try it again
2024-12-19 19:03:12 power open power_version = 0x6a
2024-12-19 19:03:17 get power version failed
2024-12-19 19:03:17 power fw_version = 0x80000300
2024-12-19 19:03:21 power calibration data:
2024-12-19 19:03:21  9  B 92 41
2024-12-19 19:03:21 A5 71 FC 47
2024-12-19 19:03:21 29 26 EC DB
2024-12-19 19:03:21 FF D3  0 FF
2024-12-19 19:03:21  0 FE FF  0
2024-12-19 19:03:21  0 FE  0 80
2024-12-19 19:03:21 80 80 80 80
2024-12-19 19:03:21 1F E0 3F 45
2024-12-19 19:03:24 calibration data 1  15.520556    15.555556
2024-12-19 19:03:24 calibration data 2  15.075111    15.111111
2024-12-19 19:03:24 calibration data 3  14.628667    14.666667
2024-12-19 19:03:24 calibration data 4  14.183222    14.222222
2024-12-19 19:03:24 calibration data 5  13.737778    13.777778
2024-12-19 19:03:24 calibration data 6  13.293333    13.333333
2024-12-19 19:03:24 calibration data 7  12.848889    12.888889
2024-12-19 19:03:24 calibration data 8  12.402444    12.444444
2024-12-19 19:03:24 calibration data 9  11.957000    12.000000
2024-12-19 19:03:24 power is Calibrated
2024-12-19 19:03:24 power sn:KLKT343BDJBBF2123
2024-12-19 19:03:24 enable_power_calibration,calibration date:211208.
2024-12-19 19:03:29 get power version failed
2024-12-19 19:03:29 check power version failed, use v2 protocal to try it again
2024-12-19 19:03:30 power type version: 0x006a
2024-12-19 19:03:30 power history status: -1
2024-12-19 19:03:32 disable power watchdog: 0x0000
2024-12-19 19:03:33 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 19:04:03 Slept 30 seconds, diff = 0.
2024-12-19 19:04:13 set_voltage_by_steps to 1500.
2024-12-19 19:04:16 power on
2024-12-19 19:04:31 bad chain id = 3
2024-12-19 19:04:33 bitmain_get_sample_voltage:-1.000000 < 0
2024-12-19 19:04:33 ERROR_POWER_LOST: power voltage read failed, pls check!
2024-12-19 19:04:35 Get power code[0-3 4-7 8-11 12-13] 55aa0c0e 00000100 00050000 0d13, power_code:0x00000500
2024-12-19 19:04:35 reach max restart times
2024-12-19 19:04:37 start up min temp by 75a = 21
2024-12-19 19:04:38 Version num 65536
2024-12-19 19:04:38 Mask num 0x1fffe000
2024-12-19 19:04:38 Note: addrInterval or corenum is not initialized.
2024-12-19 19:04:47 Chain[0]: find 0 asic, times 0
2024-12-19 19:04:52 Chain[0]: find 0 asic, times 1
2024-12-19 19:04:56 Chain[0]: find 0 asic, times 2
2024-12-19 19:04:56 Chain 0 only find 0 asic, will power off hash board 0
2024-12-19 19:04:56 Sweep error string = J1:2.
2024-12-19 19:04:56 ERROR_ASIC_NUM: asic number is not right
2024-12-19 19:04:56 stop_mining: asic number is not right
2024-12-19 19:04:56 uninit_temp_info
2024-12-19 19:04:56 do not read temp anymore...
2024-12-19 19:04:56 uninit_asic_temp_vol_info
2024-12-19 19:04:56 do not read asic_temp_vol anymore...
2024-12-19 19:04:56 cancel thread thread_id_rd_nonce_reg
2024-12-19 19:04:56 ****power off hashboard****
2024-12-19 19:04:56 power off
2024-12-19 19:04:57 asic_temperature_and_voltage_monitor_thread exit
2024-12-19 19:04:57 temp monitor thread exit
2024-12-19 19:04:57 ERROR_SOC_INIT: soc init failed!
2024-12-19 19:04:57 reach max restart times
2015-01-01 00:00:15 Open miner sn file /config/mac error
2015-01-01 00:00:15 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21 sn :HQDZF2UBDJBBA05ZR mac:
2015-01-01 00:00:17 This is fix-freq version
2015-01-01 00:00:17 Miner compile time: Thu Sep 26 11:39:05 CST 2024 type: Antminer T21
2015-01-01 00:00:17 Miner sn: HQDZF2UBDJBBA05ZR
2015-01-01 00:00:17 commit version: 62efe336 2024-08-15 13:07:46, build by: jenkins 2024-09-26 12:04:12
2015-01-01 00:00:17 opt_multi_version     = 1
2015-01-01 00:00:17 opt_bitmain_ab        = 1
2015-01-01 00:00:17 mid_auto_gen          = 1
2015-01-01 00:00:17 opt_bitmain_work_mode = 0
2015-01-01 00:00:17 port 439 already exported
2015-01-01 00:00:17 port 454 already exported
2015-01-01 00:00:17 port 440 already exported
2015-01-01 00:00:17 port 455 already exported
2015-01-01 00:00:17 port 441 already exported
2015-01-01 00:00:17 port 456 already exported
2015-01-01 00:00:17 port 438 already exported
2015-01-01 00:00:17 port 453 already exported
2015-01-01 00:00:17 port 446 already exported
2015-01-01 00:00:17 port 445 already exported
2015-01-01 00:00:17 Note: front fan is power on!
2015-01-01 00:00:17 Note: rear fan is power on!
2015-01-01 00:00:17 start the http server
2015-01-01 00:00:17 httpserver:6060 started ok
2015-01-01 00:00:17 get test_loop_securely_find_asic_num failed
2015-01-01 00:00:17 abandon mix board!
2015-01-01 00:00:17 get mix boardname[0][BHB68701], name:BHB68701
2015-01-01 00:00:17 bad chain id = 3
2015-01-01 00:00:20 bad chain id = 3
2015-01-01 00:00:22 power on
2024-12-19 19:39:11 power off
2024-12-19 19:39:12 ==========================capability start==========================
2024-12-19 19:39:12 board num = 3
2024-12-19 19:39:12 board id = 0, chain num = 1
2024-12-19 19:39:12 	chain id = 0
2024-12-19 19:39:12 board id = 1, chain num = 1
2024-12-19 19:39:12 	chain id = 1
2024-12-19 19:39:12 board id = 2, chain num = 1
2024-12-19 19:39:12 	chain id = 2
2024-12-19 19:39:12 ==========================capability end============================
2024-12-19 19:39:12 chain num = 3
2024-12-19 19:39:12 i2c chain = 0, master = 0x0, slave = 0xa0
2024-12-19 19:39:12 i2c chain = 1, master = 0x0, slave = 0xa2
2024-12-19 19:39:12 i2c chain = 2, master = 0x0, slave = 0xa4
2024-12-19 19:39:15 load chain 0 eeprom data
2024-12-19 19:39:19 load chain 1 eeprom data
2024-12-19 19:39:22 load chain 2 eeprom data
2024-12-19 19:39:22 eeprom load ret:0
2024-12-19 19:39:22 miner:BHB68701,board_name:BHB68701
2024-12-19 19:39:22 create thread get_nonce_and_register_thread
2024-12-19 19:39:22 fixed working voltage = 1360
2024-12-19 19:39:22 Chain [0] PCB Version: 0x0100
2024-12-19 19:39:22 Chain [0] BOM Version: 0x0000
2024-12-19 19:39:22 Chain [1] PCB Version: 0x0100
2024-12-19 19:39:22 Chain [1] BOM Version: 0x0000
2024-12-19 19:39:22 Chain [2] PCB Version: 0x0100
2024-12-19 19:39:22 Chain [2] BOM Version: 0x0000
2024-12-19 19:39:22 bad chain id = 3
2024-12-19 19:39:25 Fan check passed.
2024-12-19 19:39:25 init fan pid target=65
2024-12-19 19:39:25 max sensor num = 4
2024-12-19 19:39:25 asic_temperature_and_voltage_monitor_thread start...
2024-12-19 19:39:25 temperature_monitor_thread start...
2024-12-19 19:39:25 STATUS_INITED: soc init done!
2024-12-19 19:39:25 i2c chain = 0, master = 0x0, slave = 0x90
2024-12-19 19:39:25 i2c chain = 0, master = 0x0, slave = 0x98
2024-12-19 19:39:25 i2c chain = 1, master = 0x0, slave = 0x92
2024-12-19 19:39:25 i2c chain = 1, master = 0x0, slave = 0x9a
2024-12-19 19:39:25 i2c chain = 2, master = 0x0, slave = 0x94
2024-12-19 19:39:25 i2c chain = 2, master = 0x0, slave = 0x9c
2024-12-19 19:39:27 start to init...
2024-12-19 19:39:27 i2c_sim_init start
2024-12-19 19:39:27 init gpio477
2024-12-19 19:39:27 init gpio476
2024-12-19 19:39:27 i2c_sim_init end
2024-12-19 19:39:32 get power version failed
2024-12-19 19:39:32 check power version failed, use v2 protocal to try it again
2024-12-19 19:39:33 power open power_version = 0x6a
2024-12-19 19:39:38 get power version failed
2024-12-19 19:39:38 power fw_version = 0x80000300
2024-12-19 19:39:42 power calibration data:
2024-12-19 19:39:42  9  B 92 41
2024-12-19 19:39:42 A5 71 FC 47
2024-12-19 19:39:42 29 26 EC DB
2024-12-19 19:39:42 FF D3  0 FF
2024-12-19 19:39:42  0 FE FF  0
2024-12-19 19:39:42  0 FE  0 80
2024-12-19 19:39:42 80 80 80 80
2024-12-19 19:39:42 1F E0 3F 45
2024-12-19 19:39:45 calibration data 1  15.520556    15.555556
2024-12-19 19:39:45 calibration data 2  15.075111    15.111111
2024-12-19 19:39:45 calibration data 3  14.628667    14.666667
2024-12-19 19:39:45 calibration data 4  14.183222    14.222222
2024-12-19 19:39:45 calibration data 5  13.737778    13.777778
2024-12-19 19:39:45 calibration data 6  13.293333    13.333333
2024-12-19 19:39:45 calibration data 7  12.848889    12.888889
2024-12-19 19:39:45 calibration data 8  12.402444    12.444444
2024-12-19 19:39:45 calibration data 9  11.957000    12.000000
2024-12-19 19:39:45 power is Calibrated
2024-12-19 19:39:45 power sn:KLKT343BDJBBF2123
2024-12-19 19:39:45 enable_power_calibration,calibration date:211208.
2024-12-19 19:39:50 get power version failed
2024-12-19 19:39:50 check power version failed, use v2 protocal to try it again
2024-12-19 19:39:52 power type version: 0x006a
2024-12-19 19:39:52 power history status: -1
2024-12-19 19:39:53 disable power watchdog: 0x0000
2024-12-19 19:39:54 Initializing the power, please wait, this may take up to 2 minutes...
2024-12-19 19:40:24 Slept 30 seconds, diff = 0.
2024-12-19 19:40:34 set_voltage_by_steps to 1500.
2024-12-19 19:40:37 power on

looks like you have a dead power supply

I have three new 3 phase t21 psu's

as I converted mine to 1 phase not 3

https://bitcointalk.org/index.php?topic=5491800.0

pm me if you want to get a psu or convert to single phase like I did

[BitMaxz]

I don't think the control board has a function to stop the voltage flow if I were you, check the copper sheet first to see if its properly connected.
You can unscrew these sheets and use sandpaper to clean out the terminal and copper sheet to ensure that they are in contact, and make sure to screw them properly and test it again.
Also, try to test one by one all hashboard by removing other hashboard from the case and connect only one hashboard to test.
Check if there's changes on the kernel logs if one of these hashboard detects normally, then the other hashboard might be shorted that causes the other hashboard to detect zero ASIC.

I'd also like you to try to boot it with other OS like Braiins OS and remove all hashboard and let only the control board run with the PSU and check the voltage. Let's see if there's no voltage flow if the multimeter shows no power then you have a dead PSU.

[philipma1957]

I don't think the control board has a function to stop the voltage flow if I were you, check the copper sheet first to see if its properly connected.
You can unscrew these sheets and use sandpaper to clean out the terminal and copper sheet to ensure that they are in contact, and make sure to screw them properly and test it again.
Also, try to test one by one all hashboard by removing other hashboard from the case and connect only one hashboard to test.
Check if there's changes on the kernel logs if one of these hashboard detects normally, then the other hashboard might be shorted that causes the other hashboard to detect zero ASIC.

I'd also like you to try to boot it with other OS like Braiins OS and remove all hashboard and let only the control board run with the PSU and check the voltage. Let's see if there's no voltage flow if the multimeter shows no power then you have a dead PSU.

The control asked for the power and the psu did not deliver it. He has a dead PSU.

90% sure.

Now as to why the psu is dead that is another question.

Could be a hashboard short.

he has a t21 psu he is a good seller

https://altairtech.io/product/apw11-aircooled-psu/

I have 3 t21 psu's .


The op has another option

buy this controller


https://altairtech.io/product/epic-umc/  $149

buy this set of power bars

https://altairtech.io/product/antminer-power-bar/ . the ones for the s21  $19.99

buy this psu

https://altairtech.io/product/apw121215-bitmain-power-supply-psu/ $239

version f


that is how I made my t21 do single phase.


At op are you in the USA? As I do have 3 new psu's for the t21

[sebymyhay@yahoo.com]

 I will buy another T21 and replace the PSU, after that i will be sure if this will solve the issue (and buy the PSU or the Controller).

 Thank you all for your time and ideas

[philipma1957]

 I will buy another T21 and replace the PSU, after that i will be sure if this will solve the issue (and buy the PSU or the Controller).

 Thank you all for your time and ideas

good luck, but it is :

95% a bad psu
 4% a short in a board that kills the psu
 1% a bad controller


and a new unit won't let you test a single board to see if it is a short.

using the epic controller you can disable 1 board or 2 boards. on any s19 or s21 or t19 or t21. then you can see if a bad board is hurting the psu.


you should buy this

https://altairtech.io/product/apw11-aircooled-psu/

and this

https://altairtech.io/product/epic-umc/


you should install the new psu and the new controller .

you should fire it up and make sure only 1 board has the data wire connected

once you access the gui you should click disable and shut down the two boards.


once that works.

fire up one more board and connect the data cable

once that works fire up the 3rd board and connect the data cable.


you will then have 3 working boards. which would mean the psu burned out.

look at this epic running a 1 board s19 it only has 1 board set to work











buying a new miner like you want will let you switch the controller and I am 99% sure the old one won't work because it is almost certainly not a controller issue.

so once you switch in the controller. and it does not work and it is the stock controller you won't be able to disable the boards like the epic can.

So the best you can do is pull two white data cables on two boards. and test again. if the issue is a board short the pus will try to work but bitmain firmware does not let you run 1 or 2 boards.

So you would need to put in braiins which may or may not work or put in vnish which may or may not work.


Even if you become certain that the psu died for unknown reasons by buy-in a new t21

you have 2 miners and 1 psu. but what ever you do I wish you could luck fixing it.

please let us know if you figure out what was dead and get it fixed.

[sebymyhay@yahoo.com]

Hello,
I have 3 new T21 (all have braiins os now)

I tried the following tests:
1) new PSU on the old T21 -> same error
2) took new Control Board on the old T21 with the new PSU -> braiins won't start mining because find damaged HahBoard -> also said that i cannot disable on hashboard due to the Control Board that cannot support this;
     a) still tried to unplug the data cable from each board to find which is faulty ( same error-> cannot mine because cannot start mining if one board is missing)
3) took the old Control Board (stock firmware) and put on the new T21 miner (new hashboards) with the old PSU -> same error -> cannot mine
4) new control board (braiins) + new hashboards + old psu  + reset to factory settings => miner freezes in his OS with error that cannot load the proper configurations for this miner

Conclusion 1:
now i have 2 T21 broken )

Conclusion 2:
I did saw on the logs that the miner is checking also the SN from the Boards and the PSU => i think that they are paired together

Step 1:
The only thing to do now is to put them back as they where bough and try to reinstall brains on the new T21
Step 2:
The old T21 will be a real challenge to fix it and solve the mystery ( on this miner the braiins OS cannot be installed) (it has the last firmware from bitmain)

[philipma1957]

Hello,
I have 3 new T21 (all have braiins os now)

I tried the following tests:
1) new PSU on the old T21 -> same error
2) took new Control Board on the old T21 with the new PSU -> braiins won't start mining because find damaged HahBoard -> also said that i cannot disable on hashboard due to the Control Board that cannot support this;
     a) still tried to unplug the data cable from each board to find which is faulty ( same error-> cannot mine because cannot start mining if one board is missing)
3) took the old Control Board (stock firmware) and put on the new T21 miner (new hashboards) with the old PSU -> same error -> cannot mine
4) new control board (braiins) + new hashboards + old psu  + reset to factory settings => miner freezes in his OS with error that cannot load the proper configurations for this miner

Conclusion 1:
now i have 2 T21 broken )

Conclusion 2:
I did saw on the logs that the miner is checking also the SN from the Boards and the PSU => i think that they are paired together

Step 1:
The only thing to do now is to put them back as they where bough and try to reinstall brains on the new T21
Step 2:
The old T21 will be a real challenge to fix it and solve the mystery ( on this miner the braiins OS cannot be installed) (it has the last firmware from bitmain)

So like I told you braiins may not work vnish may not work. but the epic controller from epic at this link will do the trick.

https://altairtech.io/product/epic-umc/

it will let you disable
0 board
1 board
2 board.

also if you disconnected the white data cable and the match the dead board with disable feature will do it and run two boards.


It sounds like you have a shorted board. put in 1 board physically pull the other two boards. and run the epic controller it will tell you what board do not work mark them off as disabled.


eventually you will isolate the dead board this way if you do 1 at a time.

once you know what board is dead leave it in with no data cable and put a piece on non conductor under the power terminals of that board. I use

https://www.amazon.com/gp/product/B01NBMRLZJ/ref=ox_sc_act_title_1?smid=A1S57KNZPNGJP4&psc=1

 it will stop all power going to the bad hashboard do not use the 2 screws on the bad board.


the epic controller will allow 2 working board to run. as a bonus you can downclock and lower the fan.


good luck with your fix.


I think the bad hashboard is grounding something . So no data cable and do terminal connection should get rid of the grounding.

[danieleither]

Are you using a Bitmain PDU by any chance?

I have had this same issue with several of my T21's (powered from Bitmain 12-way PDU). The issue turned out to be bad connections on the back of the sockets in the PDU, which allows for one phase to drop over time / vibration etc. The miner still powers up but displays the exact same error message you are getting, and finds 0 ASICS in the kernel log - which throws you off the scent, so to speak.

If you power down, pull out the socket that is powering the problematic miner, you will most likely find a loose connection on the back - or pin that is not properly seated in the socket. Or just try swapping sockets / leads over with a different one first.

[sebymyhay@yahoo.com]

I think that you are right, the issue is at the 3phase system
I will test the T21s at my place where i also have 3phase with solar power and check there.

Today i tried with a 3rd T21 on that 3phase system and have the same errors.

I did order a "ANTPDU PW12V1 for Antminer T21 " from zeus bts .com  (1week i will have it)
after i will try it i will leave a comment here.

[philipma1957]

I think that you are right, the issue is at the 3phase system
I will test the T21s at my place where i also have 3phase with solar power and check there.

Today i tried with a 3rd T21 on that 3phase system and have the same errors.

I did order a "ANTPDU PW12V1 for Antminer T21 " from zeus bts .com  (1week i will have it)
after i will try it i will leave a comment here.

some merits for your continuing followup

[sebymyhay@yahoo.com]

Hello,
 I took the miners to my solar mining "farm" where i have 3phase correctly installed and the miners work PERFECT !
 The issue is that at the other location where the miners where "faulty" the 3phase grid is not in the normal "rotation order to the right" ( L1 L2 L3 400V).
I am waiting for a measuring tool (20$) that shows the correct order for the 3phase grid.

I hope that will solve all the problems

Thank you all

[philipma1957]

Hello,
 I took the miners to my solar mining "farm" where i have 3phase correctly installed and the miners work PERFECT !
 The issue is that at the other location where the miners where "faulty" the 3phase grid is not in the normal "rotation order to the right" ( L1 L2 L3 400V).
I am waiting for a measuring tool (20$) that shows the correct order for the 3phase grid.

I hope that will solve all the problems

Thank you all

nice work.  a good start towards a happy new year

[NotFuzzyWarm]

For DC power supplies, phase order does not matter and cannot affect PSU operation. Phasing only affects motor rotation direction.

That said, what certainly CAN screw up things is what kind of 3-phase power it is - 'real' 3 phase where all legs are the same voltage when referenced to each other and  to the neutral or what is usually called 'Wild leg' 3-phase where the leg-to-leg voltage is the same but leg-to-neutral voltages are different. ref https://en.wikipedia.org/wiki/High-leg_delta  Wild leg is fairly common in residential and light commercial areas that do not have many companies that require true 3-phase power to run heavy equipment using large motors.

Query: how many pins are on the AC input socket? 4 pins would be 3+gnd meaning 3 hot legs w/no neutral connection which is the ideal setup or 5 pins (4+gnd which is 3 hot legs & neutral). The 4+gnd setup is when the wild leg setup WILL cause issues.

[sebymyhay@yahoo.com]

Hello again,

The T21 PDU has 6 sockets 3 groups of 2 pairs ex:
1-> L1 L2 L3
2 -> L1 L2 L3
3-> L2 L3 L1
4-> L2 L3 L1
5-> L3 L1 L2
6-> L3 L1 L2

 So the order of the phases doesn't matter, 2 T21 are working perfect on 2 different sockets.
They are grouped like this because you can buy an adapter from 5 pins to 3 pins so you can connect a S21 and in this way you will always pull a live wire from a different phase.

BUT,
At the other location i have L1 L2 L3 N PE and still doesn't work any miner ) (all phases are in correct order "to the right")
each phase has over 220V
N is ok
On the stock firmware i still have :
Warning code J1:2
"Check whether chain1 connection is normal, update the firmware to the latest version, replace the hashboard, or return to factory for repair"

And on the other T21 i have Braiins and has PSU issues there.

I don t have any explanation for this

Thank you
