Dogie's Miner Setup Guides:
    ASICMiner Blade
ASICMiner Cube
ASICMiner Tube
ASICMiner Prisma
Avalon Avalon2
Avalon Avalon3
Avalon Avalon4
Avalon Avalon6
SpondooliesTech SP10
SpondooliesTech SP20
SpondooliesTech SP30
SpondooliesTech SP35
Technobit HEX16B
Technobit HEX8A1
Technobit HEX4M
Technobit 2HEX4M
KNCMiner Saturn/Jupiter
Bitmain AntMiner S1
Bitmain AntMiner S2
Bitmain AntMiner S3
Bitmain AntMiner S4
Bitmain AntMiner S4+
Bitmain AntMiner S5
Bitmain AntMiner S7
Bitmain AntMiner C1
Bitmain AntMiner U3
RockMiner R-Box
RockMiner New R-Box
RockMiner R3-Box
RockMiner T1
HashCoins Apollo
HashCoins Ares
NonceTech Sampo
Yiazo YBF
BTCGarden AMV1
Bitmine Coincraft Desk V2
HashRatio Tsunami
XBTech Pacific 1250
BitCrane T-110
Black Arrow Prospero X1
AMT 1.25TH
C-Scape HexFury USB
C-Scape BiFury USB
MoonlightMiner NanoFury II USB
    Gigampz PSU breakout board


    Guide meta thread
    DefaultTrust Visualisation
    Power Supply analysis guide
    Manufacturer trustworthiness guide
___________________________________________________________________________________________________________________________


Nicely formatted version available at dogiecoin.com!



Contents:
0a) What to Expect
0b) What You Need
1) Powering
2) Cooling
3) Case
4) Configuration
5) Troubleshooting
6) Where to buy



0a) What to Expect (top)

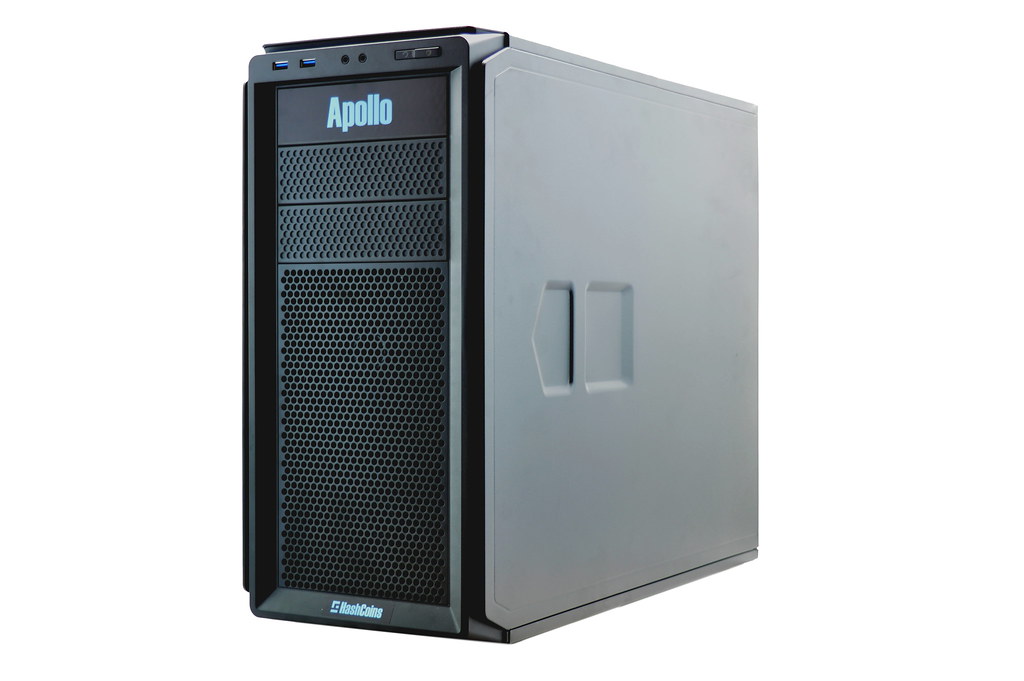

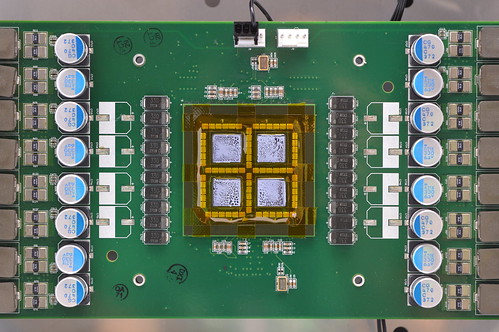

HashCoins' Apollo utilises two Golden Nonce ASICs within a high end PC case. Sealed watercooling loops remove heat to the internal radiators, while a
1250W PSU provides power. No controller is provided.

Chips2x Golden Nonce
Hashrate~1100GH
Rated Voltage12V
Rated Current96A
Power.Consumption~1150W








0b) What You Need (top)
In addition to a host windows PC or Raspberry Pi, you will need some accessories to get started.


                             Click your flag to find everything you need to get started at Amazon!




1) Powering (top)

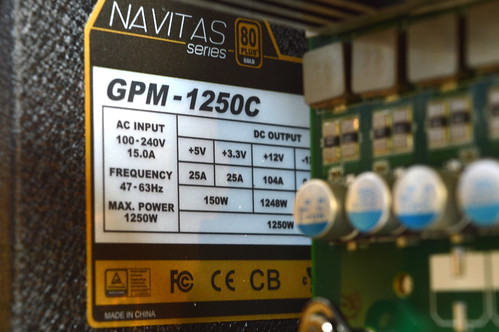

Apollo's come with a 1250W Chieftec Navitas GPM-1250C PSU in a standard ATX formfactor. It features over 90% efficiency and 1250W on its single 12V

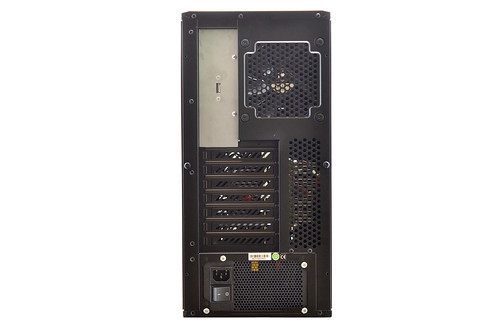

rail. If you wish to replace it, 6 PCI-E 6 pin connectors are required. Power is controlled with the PSU switch on the back and not the case's power button.




2) Cooling (top)

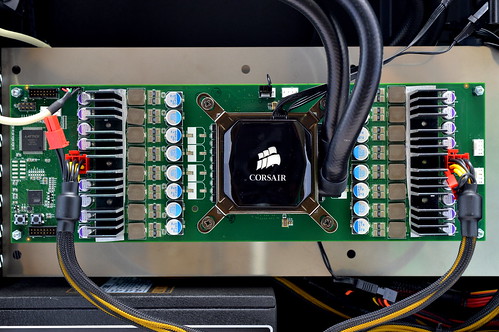

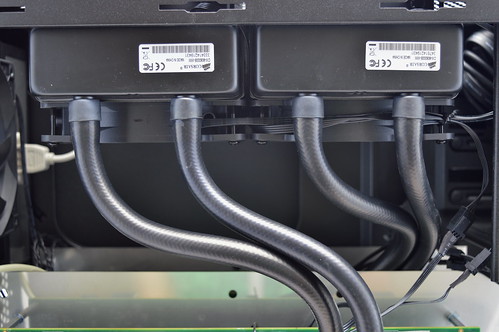

Each ASIC is cooling by a self contained Corsair H80i High Performance watercooling kit. The pump is integrated into the copper waterblock which pumps

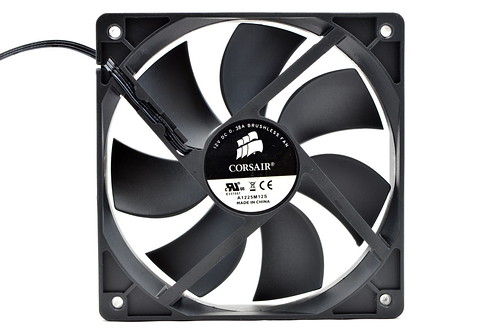

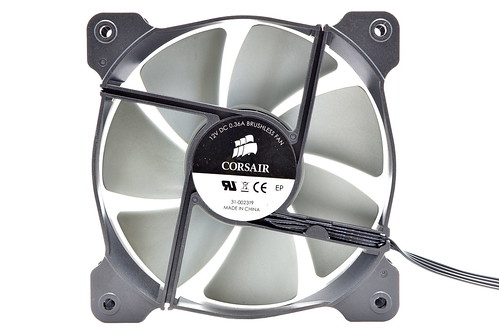

coolant up to the aluminium finned radiators mounted in the top of the case. Two 120mm Corsair SP120L PWM fans cool each 120mm radiator while

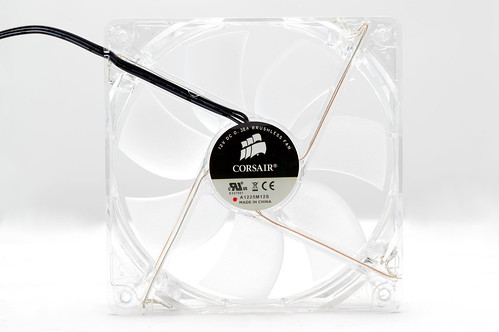

blowing air down and over the hashing boards. Two 120mm red LED Corsair fans bring in fresh air from the front of the case while a further 120mm Corsair
fan exhausts warm air out the back.

Noise levels are reasonable at normal ambient temperatures as all fans are PWM controlled and react to temperature conditions. It is noteworthy that the
unit may struggle to reach 1.1TH in  high ambient conditions (30C+).












3) Case (top)

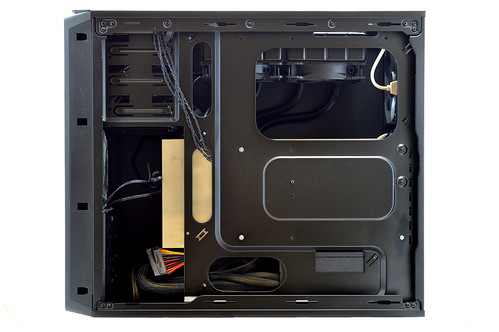

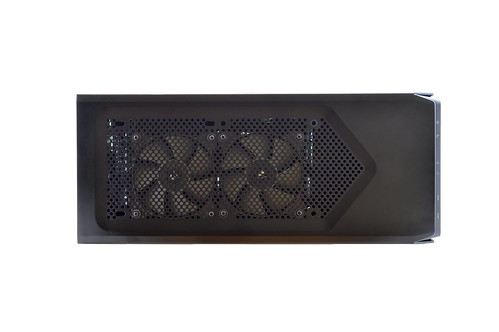

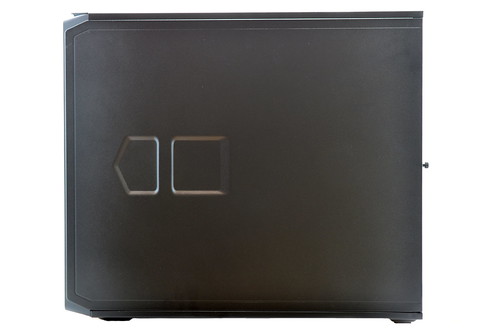

The Apollo's case is a repurposed Corsair 230T, which works remarkably well. A custom metal plate creates mounting points for the PCBs while another
board fills the I/O slot with the USB port. External dimensions of the case are 505 x 210 x 440mm.










4) Configuration (top)
The Apollo can be run on any CGMiner based device. A Windows based PC is recommended although a similar process can be applied on a Raspberry Pi.

Wiring:
  • Plug in the USB cable from the Apollo to your computer.
  • Plug in the power supply into the mains.
  • Power on the power supply using its switch at the back.

Configuration:
  • Download the latest version of CGMiner and Zadig.
  • Extract, and run the zadig application.
  • Select "M1 Module" and then click "Replace Driver". You only have to do this once per computer.
  • Create a new file in notepad and enter pool information as below. Save it as a .bat in the same folder as CGMiner.
  • Run the bat file to start mining.

Antpool
Code:
cgminer.exe -o stratum.antpool.com:3333 -u dogie_Apollo -p 123
BTCGuild
Code:
cgminer.exe -o stratum.btcguild.com:3333 -u dogie_Apollo -p 123
GHash IO
Code:
cgminer.exe -o us1.ghash.io:3333 -u dogie.Apollo -p 123




5) Troubleshooting (top)
TBD as problems arise.




Legal disclaimer: This information is for general guidance and does not constitute expert advice. We are not responsible if you, your property or a third
party is injured or damaged as a result of any interaction with this information, and no warranty is provided. All text and images are covered by copyright.

6) Where to buy (top)





Einax Airdrops and Bounties made easy! List your ERC-20 token
FREE
ETH markets launching soon!
Advertised sites are not endorsed by the Bitcoin Forum. They may be unsafe, untrustworthy, or illegal in your jurisdiction. Advertise here.
1537492410
Hero Member
*
Offline Offline

Posts: 1537492410

View Profile Personal Message (Offline)

Ignore
1537492410
Reply with quote  #2

1537492410
Report to moderator
notlist3d
Legendary
*
Offline Offline

Activity: 1470
Merit: 1000



View Profile
December 02, 2014, 10:55:36 PM
 #2

Looks very nice.  Good job on guide.

Will you be testing their Scrypt or Zeus units?
dogie
Legendary
*
Offline Offline

Activity: 1526
Merit: 1050


dogiecoin.com


View Profile WWW
December 02, 2014, 11:21:23 PM
 #3

Looks very nice.  Good job on guide.

Will you be testing their Scrypt or Zeus units?

Probably a module from Zeus to prove the numbers and yes to Ares Scrypt.

raskul
Sr. Member
****
Offline Offline

Activity: 434
Merit: 250



View Profile
December 03, 2014, 07:49:57 AM
 #4

h/w manufacturers seem to be going backwards in terms of efficiency.
Had these specifications actually been shipped out last year by Hashfail they would have been worth having.
IMHO this rig is an entire year late. I hope they don't have masses of them in stock.  Undecided

tips    1APp826DqjJBdsAeqpEstx6Q8hD4urac8a
Bicknellski
Hero Member
*****
Offline Offline

Activity: 924
Merit: 1000



View Profile
December 03, 2014, 09:13:58 AM
 #5

h/w manufacturers seem to be going backwards in terms of efficiency.
Had these specifications actually been shipped out last year by Hashfail they would have been worth having.
IMHO this rig is an entire year late. I hope they don't have masses of them in stock.  Undecided

+1

Certainly most if not all fabricators are zero sum game now.

These units are at the bottom of the pile.

Dogie trust abuse, spam, bullying, conspiracy posts & insults to forum members. Ask the mods or admins to move Dogie's spam or off topic stalking posts to the link above.
dogie
Legendary
*
Offline Offline

Activity: 1526
Merit: 1050


dogiecoin.com


View Profile WWW
December 03, 2014, 10:16:23 AM
 #6

h/w manufacturers seem to be going backwards in terms of efficiency.
Had these specifications actually been shipped out last year by Hashfail they would have been worth having.
IMHO this rig is an entire year late. I hope they don't have masses of them in stock.  Undecided

There's a lot of non bitcoin related value in this unit which makes it a different value proposition. $150 in the PSU, $125x2 in the watercooling, $70 in the case etc.
