June 14, 2014, 09:13:41 PM
 #1

Dogie's Miner Setup Guides:
    ASICMiner Blade
ASICMiner Cube
ASICMiner Tube
ASICMiner Prisma
Avalon Avalon2
Avalon Avalon3
Avalon Avalon4
Avalon Avalon6
SpondooliesTech SP10
SpondooliesTech SP20
SpondooliesTech SP30
SpondooliesTech SP35
Technobit HEX16B
Technobit HEX8A1
Technobit HEX4M
Technobit 2HEX4M
KNCMiner Saturn/Jupiter
Bitmain AntMiner S1
Bitmain AntMiner S2
Bitmain AntMiner S3
Bitmain AntMiner S4
Bitmain AntMiner S4+
Bitmain AntMiner S5
Bitmain AntMiner S7
Bitmain AntMiner C1
Bitmain AntMiner U3
RockMiner R-Box
RockMiner New R-Box
RockMiner R3-Box
RockMiner T1
HashCoins Apollo
HashCoins Ares
NonceTech Sampo
Yiazo YBF
BTCGarden AMV1
Bitmine Coincraft Desk V2
HashRatio Tsunami
XBTech Pacific 1250
BitCrane T-110
Black Arrow Prospero X1
AMT 1.25TH
C-Scape HexFury USB
C-Scape BiFury USB
MoonlightMiner NanoFury II USB
    Gigampz PSU breakout board


    Guide meta thread
    DefaultTrust Visualisation
    Power Supply analysis guide
    Manufacturer trustworthiness guide
___________________________________________________________________________________________________________________________



Contents:
0a) What to Expect
0b) What You Need
1) Cable Preparation
2) Where to buy


0a) What to Expect (top)

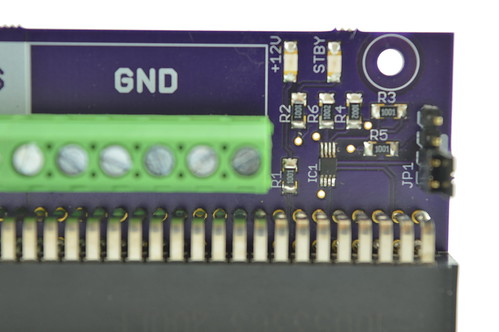

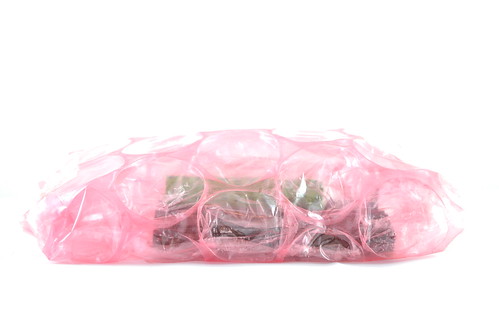

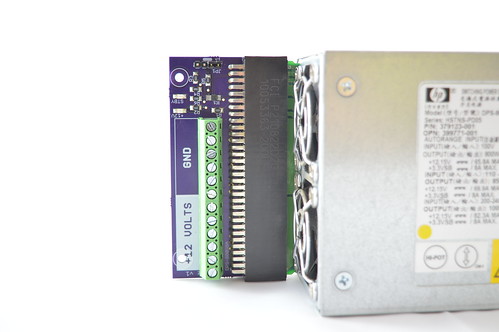

The Gigampz is a breakout board designed to adapt HP's DPS-800GBA into a low cost option for mining. There is no soldering required, and up to 850/1000W
can be provided very easily (120/240V).  Four power supplies can be remotely monitored and controlled with one Raspberry Pi.

Rated Voltage12V
Rated.Current70A (120V), 82A (240V)
Rated Power850W (120V), 1000W (240V)
















0b) What You Need (top)
You will need the following:



1) Cable Preparation (top)

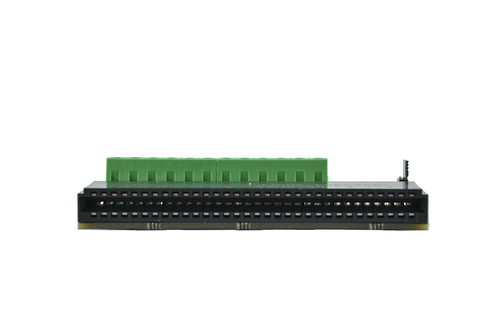

DPS-800's utilise a goldfinger power distribution interface, which the Gigampz converts into a screw terminal interface. These can be used to directly power
miners with other screw terminals such as AntMiner S1s with simple cable, however this is not the norm. Most miners use PCI-E connectors, and so we need
to prepare and wire in some PCI-E cables.

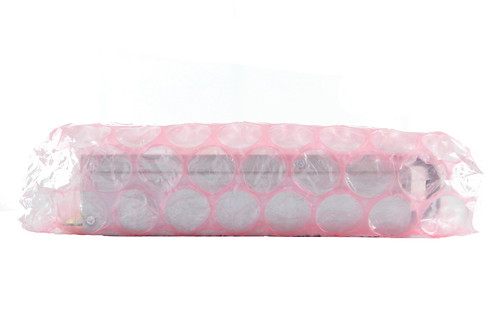

Power Supply:
(Click.your.flag)


Power Cable:
(Click.your.flag)

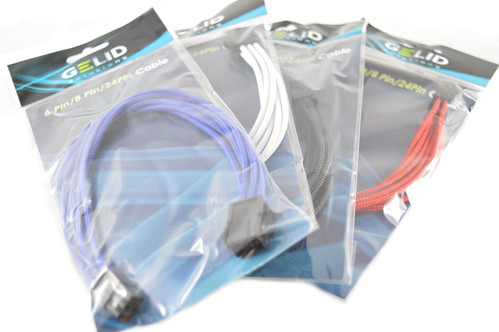

PCI-E Cables:
(Click.your.flag)

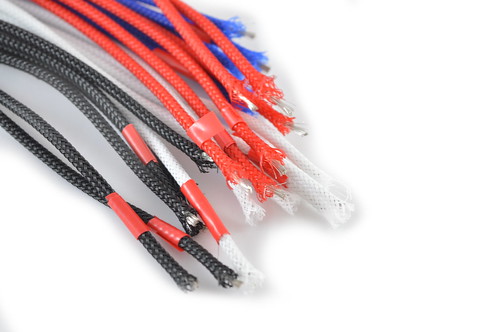

The first step is to cut off the female end of the extender. You can leave a few cm if you feel like you might have a use for them in the future, although it will
shorten your cables. Peel back the braiding and strip about a cm of insulation off. I used common scissors, just be careful not to damage the conductors inside.





The three cable stands closest to the clip on the male end of the connector are the ground cables (negative), and the three furthest away are the 12V cables
(positive). Mark these red with some insulation table, a marker, rubber bands or such. This is very important, as if you get even just one of the cables wrong,
you will short the power supply and/or your miner. Check and double check this stage. Refer to the pinout diagram below if unsure.

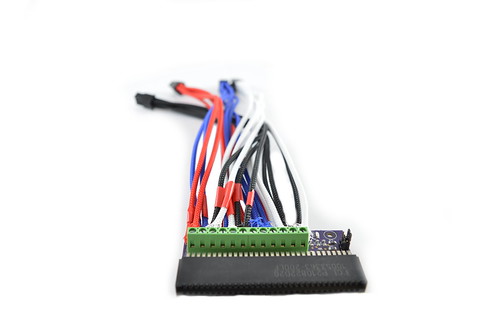

Screw in the 12V cable stands into the 12V half of the Gigampz and the same for the ground wires. You can put two wires in the same terminal, just
remember to twist them together first.

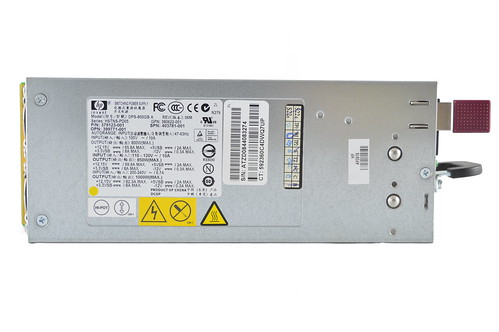

Finally, push the Gigampz onto the interface of the power supply. It is possible to do this upside down, so make sure the top side of the power supply and
Gigampz are both facing the same way. Miners are powered on by placing the jumper onto pins 2 and 3, and powered off by removing it or placing it on pins 1 and 2.



Legal disclaimer: This information is for general guidance and does not constitute expert advice. We are not responsible if you, your property or a third
party is injured or damaged as a result of any interaction with this information, and no warranty is provided. All text and images are covered by copyright.

2) Where to buy (top)




1513617735
Hero Member
*
Offline Offline

Posts: 1513617735

View Profile Personal Message (Offline)

Ignore
1513617735
Reply with quote  #2

1513617735
Report to moderator
1513617735
Hero Member
*
Offline Offline

Posts: 1513617735

View Profile Personal Message (Offline)

Ignore
1513617735
Reply with quote  #2

1513617735
Report to moderator
Advertised sites are not endorsed by the Bitcoin Forum. They may be unsafe, untrustworthy, or illegal in your jurisdiction. Advertise here.
CanaryInTheMine
Donator
Legendary
*
Offline Offline

Activity: 1708


between a rock and a block!


View Profile
June 14, 2014, 11:37:24 PM
 #2

can you comment on the jumper setting/config please?

| In Default we Trust | Need gold/silver for btc? | Buy bitcoins |
dogie
Legendary
*
Offline Offline

Activity: 1456


dogiecoin.com


View Profile WWW
June 15, 2014, 12:40:54 AM
 #3

can you comment on the jumper setting/config please?

When the jumper is on pins 1 and 2, the PSU is off. Pins 2 and 3, the PSU is on. Also no jumper = PSU off.

chadwickx16
Hero Member
*****
Offline Offline

Activity: 826



View Profile
June 16, 2014, 04:44:18 PM
 #4

This guide is so clean looking!! WOW! Great work!!


███
███
███
███
███
███
███
███
███
███
███
███



░░░░░░░░░░░░░░░░░░▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄
░░░░░░░░░░░░░░███████████████████████
░░░░░░░░░░███████████████████████████████
░░░░░░░░███████████████████████████████████
░░░░░░███████████████████████████████████████
░░░░███████████████████████████████████████████
░░░████████████████▀▀░░░░░░░░░░▀▀███████████████
░░░██████████████░░░░░░░░░░░░░░░░░░▀████████████
░░████████████▀░░░░░░░░░░░░░░░░░░░░░░░████████
░░███████████░░░░░░░░░░░░░░░░░░░░░░░░░░░███
░░██████████
░░██████████
░░██████████
░░░██████████
░░░████████████░
░░░░█████████████████████████████████████
░░░░░▀███████████████████████████████████
░░░░░░░▀▀▀▀▀█████████████████████████████
░░░░░▄▄██████████████████████████████████
░░░░█████████████████████████████████████
░░░████████████
░░███████████
░██████████▌
▐█████████▌
▐█████████▌░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░███
▐██████████▌░░░░░░░░░░░░░░░░░░░░░░░░░░░░░█████
░███████████▌░░░░░░░░░░░░░░░░░░░░░░░░░░█████████
░▐████████████▌░░░░░░░░░░░░░░░░░░░░░█████████████
░░▐███████████████▄▄▄░░░░░░░░░░▄▄████████████████
░░░░███████████████████████████████████████████
░░░░░░███████████████████████████████████████
░░░░░░░░░████████████████████████████████
░░░░░░░░░░░░░█████████████████████████
░░░░░░░░░░░░░░░░░▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀

███
███
███
███
███
███
███
███
███
███
███
███

███
███
███
███
███
███
███
███
███
███
███
███

███
███



███
███



███
███
*
!
#
HOMEPAGE
ANNOUNCEMENT
JOIN US ON SLACK
dogie
Legendary
*
Offline Offline

Activity: 1456


dogiecoin.com


View Profile WWW
June 16, 2014, 07:56:58 PM
 #5

This guide is so clean looking!! WOW! Great work!!

Thanks!

mstrongbow
Sr. Member
****
Offline Offline

Activity: 322

3D Printed!


View Profile
July 05, 2014, 06:05:16 PM
 #6

Think ou could pull specs (LxWxH in millimeters) from those boards for me? I'd be happy to supply you with a 3d printed enclosure for the breakout board once ready.

Very nice guide as always Dogie!

    Bitcoin-Scratchticket.com       Win Bitcoin Playing Scratchtickets        Provably Fair
*Got LootCrate?*
*My Stuff For Sale thread/s*   www.CryptoCause.org   Ask me about SEGMining Hosting!
"Don't undertake a project unless it is manifestly important and nearly impossible" - Edwin Land
noheroe
Newbie
*
Offline Offline

Activity: 9


View Profile
July 07, 2014, 04:49:07 PM
 #7

Hi Folks!

Great tutorial, I do have a noob question. Got one rockminer and came with a cable that seems can be hooked up to this PS.
What is the correct wiring?
I am enclosing the picture of the cable that came with the miner, so what's the correct wiring?
one cable per pin?

https://farm3.staticflickr.com/2939/14309654614_bda63c1998_o.jpg

Cheers,
dogie
Legendary
*
Offline Offline

Activity: 1456


dogiecoin.com


View Profile WWW
July 07, 2014, 05:09:09 PM
 #8

Hi Folks!

Great tutorial, I do have a noob question. Got one rockminer and came with a cable that seems can be hooked up to this PS.
What is the correct wiring?
I am enclosing the picture of the cable that came with the miner, so what's the correct wiring?
one cable per pin?

https://farm3.staticflickr.com/2939/14309654614_bda63c1998_o.jpg

Cheers,

Red to +ve, white to -ve. Just screw it into the screw terminal.

noheroe
Newbie
*
Offline Offline

Activity: 9


View Profile
July 07, 2014, 05:26:26 PM
 #9

Thank you! Cheesy
