Author Topic: [Guide] Dogie's Comprehensive SpondooliesTech SP20 Setup [HD]  (Read 23832 times)
dogie
Legendary
*
Offline Offline

Activity: 1456


dogiecoin.com


View Profile WWW
December 08, 2014, 08:07:32 PM
 #1

Dogie's Miner Setup Guides:
    ASICMiner Blade
ASICMiner Cube
ASICMiner Tube
ASICMiner Prisma
Avalon Avalon2
Avalon Avalon3
Avalon Avalon4
Avalon Avalon6
SpondooliesTech SP10
SpondooliesTech SP20
SpondooliesTech SP30
SpondooliesTech SP35
Technobit HEX16B
Technobit HEX8A1
Technobit HEX4M
Technobit 2HEX4M
KNCMiner Saturn/Jupiter
Bitmain AntMiner S1
Bitmain AntMiner S2
Bitmain AntMiner S3
Bitmain AntMiner S4
Bitmain AntMiner S4+
Bitmain AntMiner S5
Bitmain AntMiner S7
Bitmain AntMiner C1
Bitmain AntMiner U3
RockMiner R-Box
RockMiner New R-Box
RockMiner R3-Box
RockMiner T1
HashCoins Apollo
HashCoins Ares
NonceTech Sampo
Yiazo YBF
BTCGarden AMV1
Bitmine Coincraft Desk V2
HashRatio Tsunami
XBTech Pacific 1250
BitCrane T-110
Black Arrow Prospero X1
AMT 1.25TH
C-Scape HexFury USB
C-Scape BiFury USB
MoonlightMiner NanoFury II USB
    Gigampz PSU breakout board


    Guide meta thread
    DefaultTrust Visualisation
    Power Supply analysis guide
    Manufacturer trustworthiness guide
___________________________________________________________________________________________________________________________


Nicely formatted version available at dogiecoin.com!



Contents:
0a) What to Expect
0b) What You Need
1) Powering
2) Cooling
3) Case
4) Configuration
5) Troubleshooting



0a) What to Expect (top)
SpondooliesTech's SP20 brings 8 of their RockerBox architecture to a small form factor device. Two hashing boards are housed in a well designed case
and are cooled with a single 120mm fan. No power supply is provided, but a custom controller is included internally.

Chips4x 28nm SpondooliesTech RockerBox
Hashrate~1700GH
Rated Voltage12V
Rated Current100A
Power.Consumption~1200W






0b) What You Need (top)
You will need a few accessories and a power supply to get started. Due to the load required, I would recommend two smaller PSUs over a larger one.


                             Click your flag to find everything you need to get started at Amazon!




1) Powering (top)
SP20's do not come with a power supply, and you will need a typical computer PSU with 4xPCI-E 6 pin power connectors. Strictly all 4 connectors are
required. We also need to tell the PSU to always be on, as there isn't a motherboard to do this. Cut a paper clip into a U and insert it into the green wire
and either black wire to the side of the green wire. Tape it up for safety. The power supply will now be controlled by its switch on the rear socket.




2) Cooling (top)
A single extremely powerful 120mm Y.S. TECH FD121238UB fan is used in a negative pressure tunnel arrangement and can move up to 200CFM. Each chip
has its own custom aluminium finned heatsink on a copper plate. Noise levels at the default 80% are very loud but also required to reach the rated hash
rate at ambient conditions below 30C. It may not be possible to achieve the full speed above 30C, which may be ~1500GH at 40C.








3) Case (top)

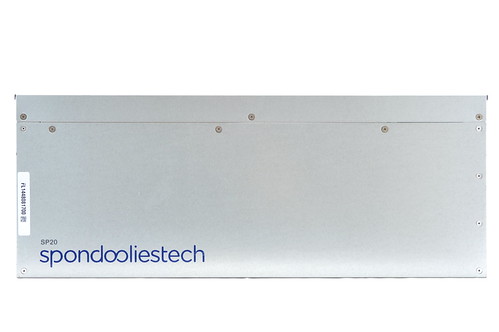

The SP20's case is designed to be stacked top to bottom or side to side. It is meticulously designed all over and each piece fits exactly. With the revised
model (SP20E, pictured), there is no risk of modules moving during shipping.

The shipped weight of an SP20 is 6.1kg, dimensions of the shipping box are 235 x 240 x 495mm. An unpacked SP20 weighs 5.0kg and measures
130 x 148 x 395mm.








4) Configuration (top)
Configuration is straightforward due to the simple due to the on-board controller, web interface and DHCP default.

Wiring:
  • Plug in an ethernet cable from the SP20 to your router.
  • Plug in a power cables from the mains to your PSU. The unit will auto turn on.
  • Power on the power supply using its switch at the back.

Configuration:
  • Using a browser, navigate to myminer.io to see all SpondooliesTech hardware on your network.
  • Click on "Go to miner" to visit the SP20's configuration page.
  • Login using "admin" as the username and password.
  • Navigate to "Pools", enter miner information in the below format click save.
  • Navigate to "Settings" and change parameters as desired. Use basic voltage settings unless you know what you are doing.

Antpool Register!
Code:
Servers : stratum.antpool.com:3333
User    : username.worker or username_worker - auto creates workers!
Password: anypassword
BTCGuild Register!
Code:
Servers : stratum.btcguild.com:3333
User    : username_worker
Password: anypassword
GHash IO Register!
Code:
Servers : us1.ghash.io:3333
User    : username.worker  - auto creates workers!
Password: anypassword




5) Troubleshooting (top)
TBD as problems arise.






Legal disclaimer: This information is for general guidance and does not constitute expert advice. We are not responsible if you, your property or a third
party is injured or damaged as a result of any interaction with this information, and no warranty is provided. All text and images are covered by copyright.



1513597391
Hero Member
*
Offline Offline

Posts: 1513597391

View Profile Personal Message (Offline)

Ignore
1513597391
Reply with quote  #2

1513597391
Report to moderator
1513597391
Hero Member
*
Offline Offline

Posts: 1513597391

View Profile Personal Message (Offline)

Ignore
1513597391
Reply with quote  #2

1513597391
Report to moderator
1513597391
Hero Member
*
Offline Offline

Posts: 1513597391

View Profile Personal Message (Offline)

Ignore
1513597391
Reply with quote  #2

1513597391
Report to moderator
Advertised sites are not endorsed by the Bitcoin Forum. They may be unsafe, untrustworthy, or illegal in your jurisdiction. Advertise here.
1513597391
Hero Member
*
Offline Offline

Posts: 1513597391

View Profile Personal Message (Offline)

Ignore
1513597391
Reply with quote  #2

1513597391
Report to moderator
1513597391
Hero Member
*
Offline Offline

Posts: 1513597391

View Profile Personal Message (Offline)

Ignore
1513597391
Reply with quote  #2

1513597391
Report to moderator
DiCE1904
Legendary
*
Offline Offline

Activity: 1088

NotPaidForMySig


View Profile WWW
January 02, 2015, 05:16:54 AM
 #2

Thanks for this

Will the EVGA 1300w work for this or is it too close to being maxed out all the time

ExchangeD.I2p  First Ever Darknet CryptoCurrency Exchange. Trade altcoins anonymously.
http://ylmulgfskl6uiwac4hw4ecwqdzd3oxtwaemzj25zc6k5q4rkexra.b32.i2p
Official Thead: https://bitcointalk.org/index.php?topic=1092682.0
philipma1957
Legendary
*
Offline Offline

Activity: 1946


A new tool for prediction https://bitvol.info/


View Profile
January 02, 2015, 05:30:21 AM
 #3

Thanks for this

Will the EVGA 1300w work for this or is it too close to being maxed out all the time

It will work fine.    do you realize the sp20 works far better at 1200gh to 1400gh hash rates?

If you run at 1350gh it costs 750 to 800 watts

If you run at 1650gh it costs 1200 to 1225 watts

Even if you are a free power guy.  try running them at 1400 to 1500gh  as  the 1650 to 1700gh speeds are redline speeds.

 I run 8 of them in my home all around 1200gh. They use under 600 watts at this speed.

Please support sidehack with his new miner project Send to : 1BURGERAXHH6Yi6LRybRJK7ybEm5m5HwTr
I mine alt coins with https://simplemining.net I see BTC as the super highway and alt coins as taxis and trucks needed to move transactions.
grn
Sr. Member
****
Offline Offline

Activity: 342


View Profile
January 02, 2015, 05:35:45 AM
 #4

How is the performance in a moderate temperature environment?

eg  -6 to +6 deg C

How is that Lexical analysis working out bickneleski?
philipma1957
Legendary
*
Offline Offline

Activity: 1946


A new tool for prediction https://bitvol.info/


View Profile
January 02, 2015, 06:31:04 AM
 #5

How is the performance in a moderate temperature environment?

eg  -6 to +6 deg C

It improves slightly, and  it does not like a 35c room it does a little worse.

Please support sidehack with his new miner project Send to : 1BURGERAXHH6Yi6LRybRJK7ybEm5m5HwTr
I mine alt coins with https://simplemining.net I see BTC as the super highway and alt coins as taxis and trucks needed to move transactions.
grn
Sr. Member
****
Offline Offline

Activity: 342


View Profile
January 02, 2015, 06:42:55 AM
 #6

How is the performance in a moderate temperature environment?

eg  -6 to +6 deg C

It improves slightly, and  it does not like a 35c room it does a little worse.

I keep my noisy miners in an outdoor shed. Are you saying i will get better than the advertised 1700ghs at 0deg C ?

If so, thats great. any way to get group buy price without rewarding RS? Not interested in supporting people or companies that feel the need to troll others` threads to promote their own products, that behavior reeks of insecurity about something.....

 looking for about 16 new miners

How is that Lexical analysis working out bickneleski?
Spondoolies-Tech
Donator
Legendary
*
Offline Offline

Activity: 924


It was fun while it lasted


View Profile WWW
January 02, 2015, 08:41:33 AM
 #7

How is the performance in a moderate temperature environment?

eg  -6 to +6 deg C

It improves slightly, and  it does not like a 35c room it does a little worse.

I keep my noisy miners in an outdoor shed. Are you saying i will get better than the advertised 1700ghs at 0deg C ?

If so, thats great. any way to get group buy price without rewarding RS? Not interested in supporting people or companies that feel the need to troll others` threads to promote their own products, that behavior reeks of insecurity about something.....

 looking for about 16 new miners
The SP20 usually achieves more than 1750 GHs in 0C, assuming enough power. It's not very efficient machine at those levels, around 1250-1300 Watt at the wall with good PSU. We do have ASICs variations, the new ones are better.
You don't need to pay the reservation fees. Only 40% are going to RoadStress. It's recommended to do so.

We released the following miners only when we were operational: SP10, SP20, SP30, SP31 and SP35.
If you see anything else offered online, it's a scam.
We designed but never completed the SP50
philipma1957
Legendary
*
Offline Offline

Activity: 1946


A new tool for prediction https://bitvol.info/


View Profile
January 02, 2015, 12:27:05 PM
 #8

How is the performance in a moderate temperature environment?

eg  -6 to +6 deg C

It improves slightly, and  it does not like a 35c room it does a little worse.

I keep my noisy miners in an outdoor shed. Are you saying i will get better than the advertised 1700ghs at 0deg C ?

If so, thats great. any way to get group buy price without rewarding RS? Not interested in supporting people or companies that feel the need to troll others` threads to promote their own products, that behavior reeks of insecurity about something.....

 looking for about 16 new miners

no above 1650 is redlining the miners.  and it burns a ton of power.  efficiency drops like a rock.  If you have them in a good room and you have cheap power

run around 1500gh  check power draw. then try 1550gh check power draw. then try 1600gh check power draw.  decide if adding 50 or 100gh is wroth the extra watts.

Hint it really is not for almost all of us.

Please support sidehack with his new miner project Send to : 1BURGERAXHH6Yi6LRybRJK7ybEm5m5HwTr
I mine alt coins with https://simplemining.net I see BTC as the super highway and alt coins as taxis and trucks needed to move transactions.
dogie
Legendary
*
Offline Offline

Activity: 1456


dogiecoin.com


View Profile WWW
January 02, 2015, 12:39:59 PM
 #9

How is the performance in a moderate temperature environment?

eg  -6 to +6 deg C

It improves slightly, and  it does not like a 35c room it does a little worse.

After about 30C you start to lose full hash rate, 35C you're going to have lost full hash rate, 40C then you're down to 1.35TH or so.

dimitri111
Newbie
*
Offline Offline

Activity: 24


View Profile
January 21, 2015, 04:00:20 AM
 #10

Hey guys,

I got my 3 SP20 Jackson's about a week ago and i love them, since they were in my living room - I only ran them at night, now I moved them to an empty room. So when i came home today and power on my rigs, i could not connect to myminer.io. Is Spondoolies-tech server down?

Thank you,

Spon-Doolies Tech SP20 Jackson Mining Rigs.
dogie
Legendary
*
Offline Offline

Activity: 1456


dogiecoin.com


View Profile WWW
January 21, 2015, 07:36:15 AM
 #11

Hey guys,

I got my 3 SP20 Jackson's about a week ago and i love them, since they were in my living room - I only ran them at night, now I moved them to an empty room. So when i came home today and power on my rigs, i could not connect to myminer.io. Is Spondoolies-tech server down?

Thank you,

As far as I can tell, myminer.io is a local service hosted by your miners - so if you can't connect then they may not be connected to your network. Sometimes you'll see a fragment or old version of the page when no devices are connected. How are they connected now?

Please consider filling out a quick survey about my guides to help improve them! You'll be entered into a raffle to win 2x $20 vouchers as a thank you.



wh00per
Hero Member
*****
Offline Offline

Activity: 570



View Profile
January 24, 2015, 01:49:58 AM
 #12

As far as I can tell, myminer.io is a local service hosted by your miners - so if you can't connect then they may not be connected to your network. Sometimes you'll see a fragment or old version of the page when no devices are connected. How are they connected now?

yeah .. hosted by your miners ..  and you reviewed how many SP-Tech products?

Domain : myminer.io
Status : Live
Expiry : 2015-03-17

NS 1 : b.dns.gandi.net
NS 2 : c.dns.gandi.net
NS 3 : a.dns.gandi.net

Owner : Guy Corem
Owner : Spondoolies-Tech Ltd
Owner : Leshem 1, P.O.B 8673
Owner : Kiryat-Gat
Owner : IL

CSA/cUL Certified Power Distribution Panels - Basic, Switched, Metered. 1-3 phases. Up to 600V. NMC:N4F9qvHz11BHcc4nh1LCJFsrZhA1EWgVwj
dogie
Legendary
*
Offline Offline

Activity: 1456


dogiecoin.com


View Profile WWW
January 24, 2015, 07:21:04 AM
 #13

As far as I can tell, myminer.io is a local service hosted by your miners - so if you can't connect then they may not be connected to your network. Sometimes you'll see a fragment or old version of the page when no devices are connected. How are they connected now?

yeah .. hosted by your miners ..  and you reviewed how many SP-Tech products?

I didn't describe it well.... there is a component of that site which appears to be a local service. Hence the ability to get fragments from crashed units (if they're the last ones) still showing. If it was entirely remote then surely they wouldn't show up.

Please consider filling out a quick survey about my guides to help improve them! You'll be entered into a raffle to win 2x $20 vouchers as a thank you.



vortexz
Legendary
*
Offline Offline

Activity: 924


GET IN - Smart Ticket Protocol - Live in market!


View Profile
January 24, 2015, 11:30:38 AM
 #14






which one of those SLOTS labeled as 1,2,3,4 are the slots that power the back chips ?
Thank you !


               ████
             ███  ███
           ████     ███
         ███  ███    ███
       ████     ███    ███
     ███  ███     ███    ███
   ████     ███     ███   ██
 ███  ███     █████████████████
███     ███     ███           ██
 ███      ███     ██          ██
   ███      ██████████      ███
     ███      ██████      ███
       ███      ██      ███
         ███          ███
           ███      ███
             ███  ███
               ████

GUTS
    ███
███
███
███
███
███
███
███
███
███
███
███
███
███

smart-ticket protocol for events
live product with market traction!
    ███
███
███
███
███
███
███
███
███
███
███
███
███
███

  BTC ANN
  WEBSITE
  BLOG

  SANDBOX
  WHITEPAPER
  BOUNTY

dogie
Legendary
*
Offline Offline

Activity: 1456


dogiecoin.com


View Profile WWW
January 24, 2015, 01:37:30 PM
 #15

are the slots that power the back chips ?

What do you mean by that bit?

vortexz
Legendary
*
Offline Offline

Activity: 924


GET IN - Smart Ticket Protocol - Live in market!


View Profile
January 24, 2015, 01:52:22 PM
 #16

which of those 4 slots power the back chips ?
2 slots power the 2 front boards and the other 2 slots power the back boards


               ████
             ███  ███
           ████     ███
         ███  ███    ███
       ████     ███    ███
     ███  ███     ███    ███
   ████     ███     ███   ██
 ███  ███     █████████████████
███     ███     ███           ██
 ███      ███     ██          ██
   ███      ██████████      ███
     ███      ██████      ███
       ███      ██      ███
         ███          ███
           ███      ███
             ███  ███
               ████

GUTS
    ███
███
███
███
███
███
███
███
███
███
███
███
███
███

smart-ticket protocol for events
live product with market traction!
    ███
███
███
███
███
███
███
███
███
███
███
███
███
███

  BTC ANN
  WEBSITE
  BLOG

  SANDBOX
  WHITEPAPER
  BOUNTY

Syke
Legendary
*
Offline Offline

Activity: 2464


View Profile
January 31, 2015, 10:26:39 PM
 #17

I lost the login info. Is there way to reset the SP20 to factory settings?

Buy & Hold
notlist3d
Legendary
*
Offline Offline

Activity: 1414



View Profile
January 31, 2015, 11:11:32 PM
 #18

I lost the login info. Is there way to reset the SP20 to factory settings?

There is a reset by sd card.  I would assume it would go back to default after.
Syke
Legendary
*
Offline Offline

Activity: 2464


View Profile
February 01, 2015, 12:46:20 AM
 #19

There is a reset by sd card.  I would assume it would go back to default after.

Like this?

http://www.spondoolies-tech.com/blogs/technical-blog/13098521-sp10-sp30-recovery-sd-card-boot-sd-card-creation-instructions

Buy & Hold
Syke
Legendary
*
Offline Offline

Activity: 2464


View Profile
February 01, 2015, 01:08:41 AM
 #20

Ok, that did it.

Buy & Hold
Pages: [1] 2 »  All
  Print

Jump to:

Sponsored by , a Bitcoin-accepting VPN.
Powered by MySQL Powered by PHP Powered by SMF 1.1.19 | SMF © 2006-2009, Simple Machines Valid XHTML 1.0! Valid CSS!
