[Guide] Dogie's Comprehensive ASICMiner Tube Setup [HD]

[dogie]

Dogie's Miner Setup Guides:

	ASICMiner Blade ASICMiner Cube ASICMiner Tube ASICMiner Prisma Avalon Avalon2 Avalon Avalon3 Avalon Avalon4 Avalon Avalon6 SpondooliesTech SP10 SpondooliesTech SP20 SpondooliesTech SP30 SpondooliesTech SP35 Technobit HEX16B Technobit HEX8A1 Technobit HEX4M Technobit 2HEX4M KNCMiner Saturn/Jupiter	Bitmain AntMiner S1 Bitmain AntMiner S2 Bitmain AntMiner S3 Bitmain AntMiner S4 Bitmain AntMiner S4+ Bitmain AntMiner S5 Bitmain AntMiner S7 Bitmain AntMiner C1 Bitmain AntMiner U3 RockMiner R-Box RockMiner New R-Box RockMiner R3-Box RockMiner T1 HashCoins Apollo HashCoins Ares NonceTech Sampo Yiazo YBF	BTCGarden AMV1 Bitmine Coincraft Desk V2 HashRatio Tsunami XBTech Pacific 1250 BitCrane T-110 Black Arrow Prospero X1 AMT 1.25TH C-Scape HexFury USB C-Scape BiFury USB MoonlightMiner NanoFury II USB     Gigampz PSU breakout board     Guide meta thread     DefaultTrust Visualisation     Power Supply analysis guide     Manufacturer trustworthiness guide
	_________________________________________	_________________________________________	_________________________________________

Nicely formatted version available at dogiecoin.com!



Contents:
0a) What to Expect
0b) What You Need
0c) Parts List
0d) Tools Required
1) Assembly
2) Powering
3) Cooling
4) Case
5a) Configuration
5b) Configuration - Using Proxy (Optional)
6) Troubleshooting
7) Where to buy


0a) What to Expect (top)

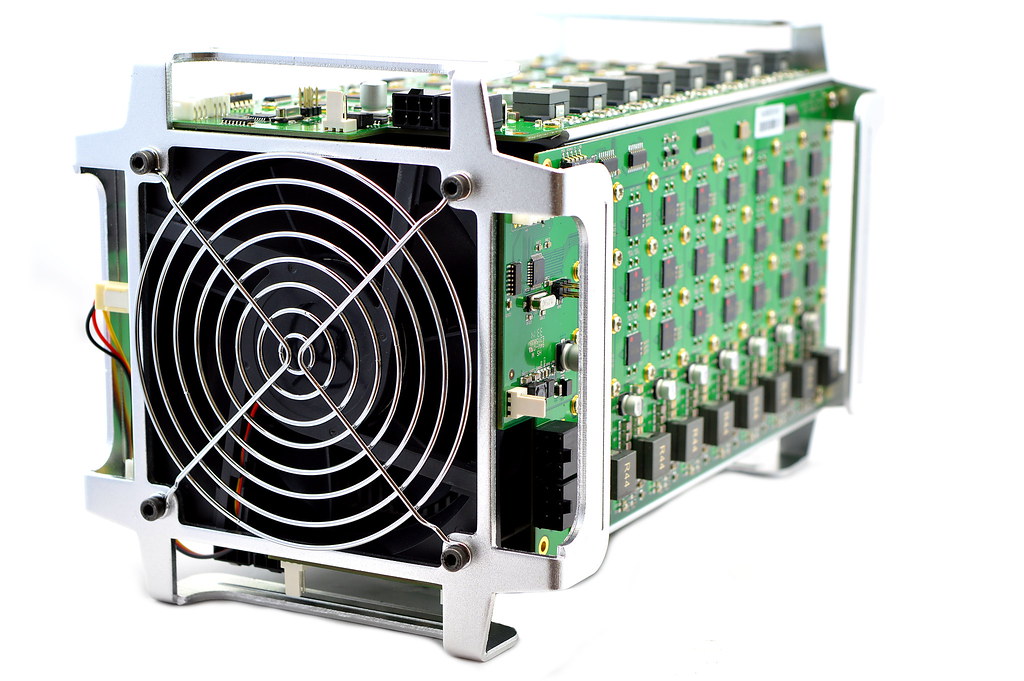

ASICMiner's Tube is the official release of their open sourced x24 reference design and their first consumer product release in 9 months. It features 4 hashing

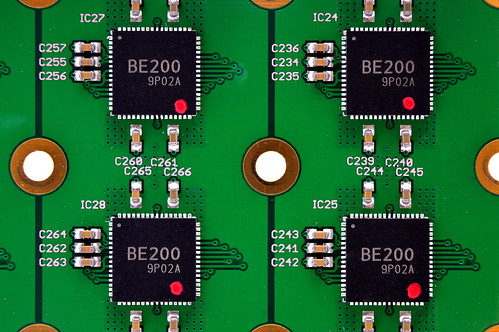

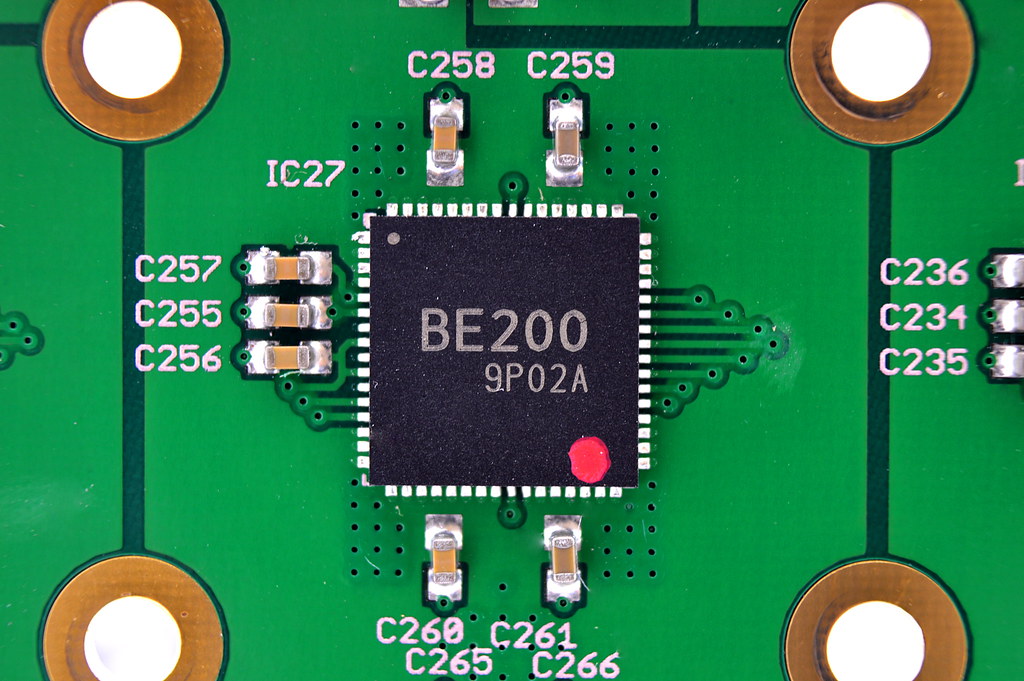

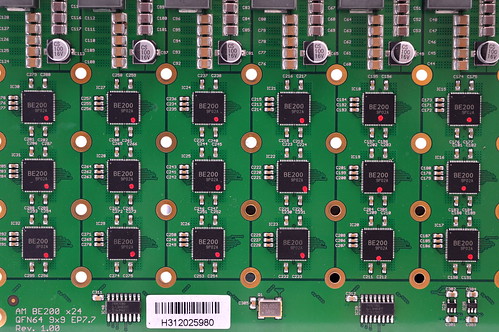

boards, each featuring 24 BE200 generation 3 chips arranged around a central aluminium core heatsink. Lightweight stands at each end allow the units to be
stacked and 8 miners can be daisy chained to one controller. Tubes can be purchased preassembled or as kits.

Chips	96x ASICMiner Gen3
Hashrate	~830GH, 920GH (OC)
Rated Voltage	12V
Rated Current	75A
Power.Consumption (at PSU)	~900W, 1025W (OC)






0b) What You Need (top)
You will need a few accessories and a power supply to get started.


                             Click your flag to find everything you need to get started at Amazon!




0c) Parts List (top)

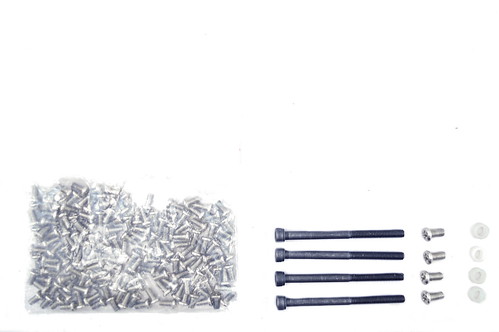

Each unassembled ASICMiner Tube kit will contain the following parts. Please check you have all the components before getting started.

  4x hashing boards                                                                                       1x controller


  4x heatsink blocks                                                                                        4x data cables (1 long)


  156+ M3*6 screws
  4x M4*8 screws                                                                                           1x 120mm fan grill
  4x M4*55 screws (or similar hex)                                                                   1x 'X' stand
  4x plastic washers                                                                                        1x 'square' stand


  1x 120mm fan                                                                                              1.5+ sheets of thermal compound



0d) Tools Required (top)
With 164 screws to assemble each Tube, using the right screwdriver will save you significant time. Everything can be done with a 3.0mm slotted screwdriver,
but its very important that the handle and blade is thin otherwise you won't be able to access some of the screw holes. You will need this regardless of
whether you choose to get a handheld electric screwdriver as well.

It is recommended to get a light, handheld electric screwdriver as the time savings will pay for themselves and you'll also have a useful tool for the house.
Don't bother using a normal large drill as they're too cumbersome and you risk damaging the miner. Whichever one you chose, make sure it has variable
torque otherwise you'll strip screw heads. Some suitable recommendations are included below, as well as the correct manual screwdriver.

                             Click your flag to find everything you need to get started at Amazon!




1) Assembly (top)
Those who purchased their Tubes fully constructed can skip to section two. Assembly consists of 9 major stages. Please make sure you've completed each
stage before you move on, reread the instructions before proceeding to make sure you're not going to damage your Tube.


Step 1

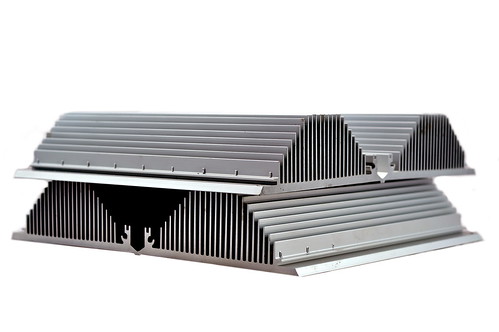

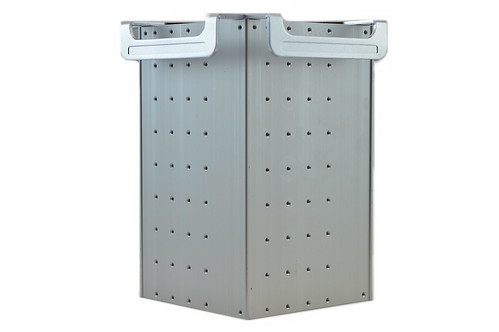

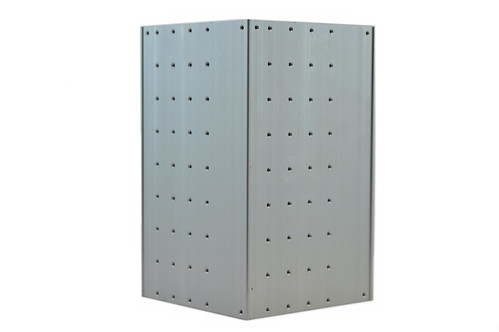

Locate the four heatsink blocks and stand them all upright so the row with 6 screws holes are at the top - this orientation is important! Interlock their corners
one at a time to create a closed box, still standing on its end.




Step 2

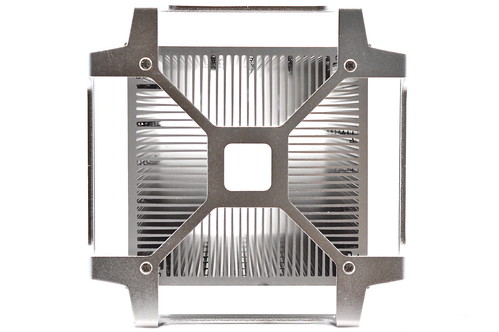

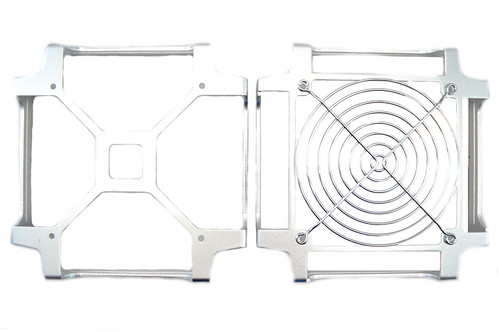

Locate the 'X' shaped stand and the four M4*8 screws - these are the fatter screws kept in a separate bag. Screw the stand into the heatsink blocks to hold
them together.




Step 3

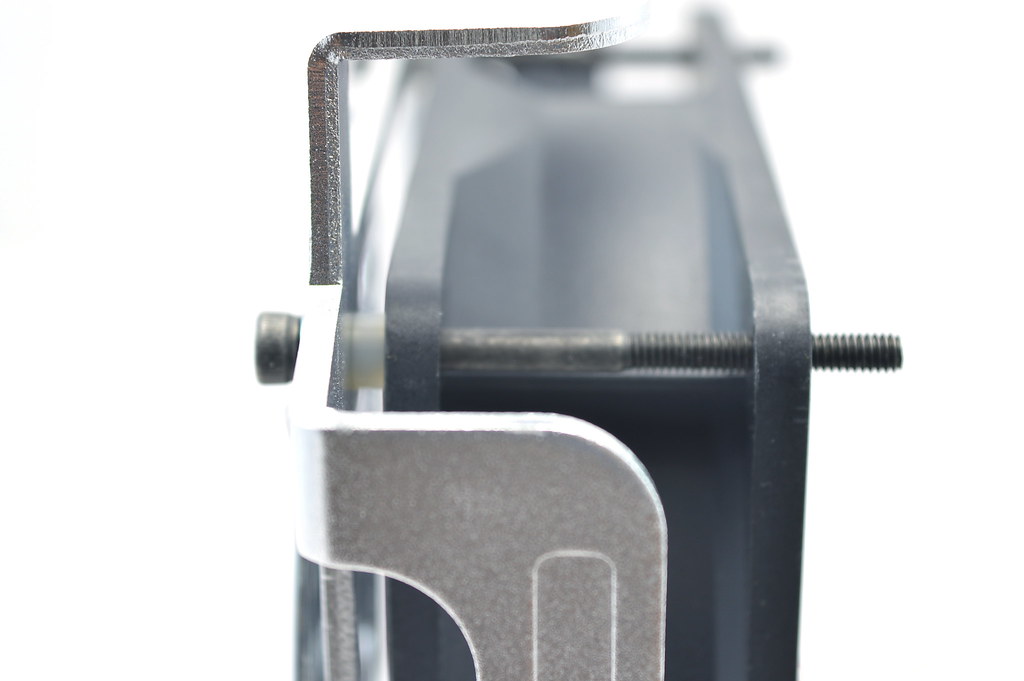

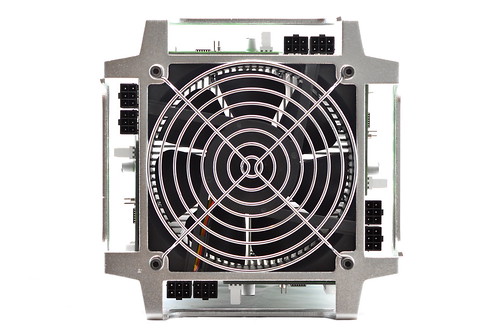

Locate the 'square' shaped stand, the four M4*55 screws, the four plastic washers, the fan and the fan grill. Hold the fan grill over the stand in one hand, and

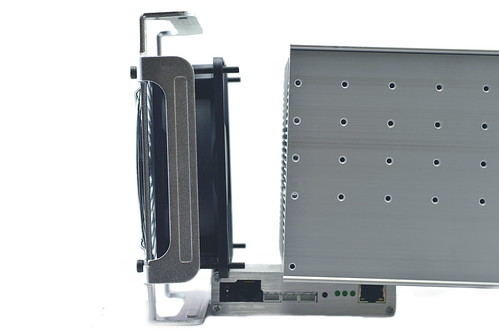

in the other guide the screws through each corner hole. Then, squeezing all the screws to prevent them falling out, place it all on the table. Place the plastic

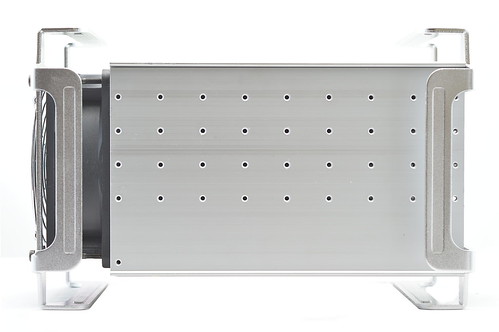

washers onto the screws. Do not forget this step! Place the fan onto the screws, with its supporting frame facing the fan grill. You should have the sandwich
as pictured as below.




Step 4

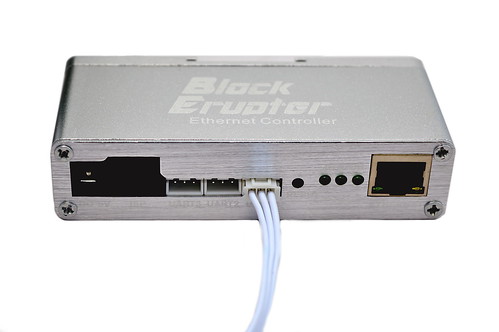

This is the last fiddly step of the build. Locate the controller and rest the heatsink half down onto it so only only 1-2cm of the controller is exposed. Holding
the fan sandwich together, rest it on the final bit of the controller. The fan will want to rotate down from the top edge so keep that edge pinned in. Slowly
mate the two surfaces and screw in each of the corners. Be careful to not over-tighten these screws and bend the plastic of the fan. Once completed, you
have the basic structure of the ASICMiner Tube done!






Step 5

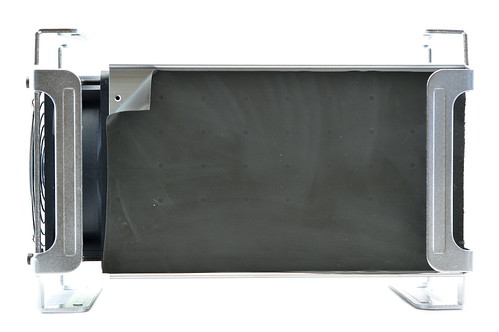

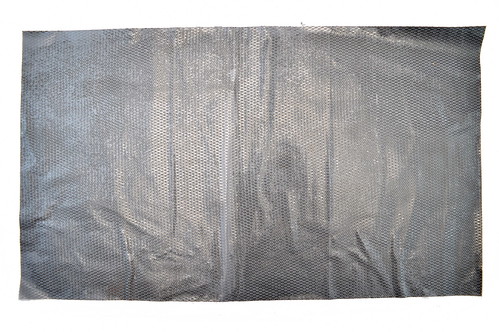

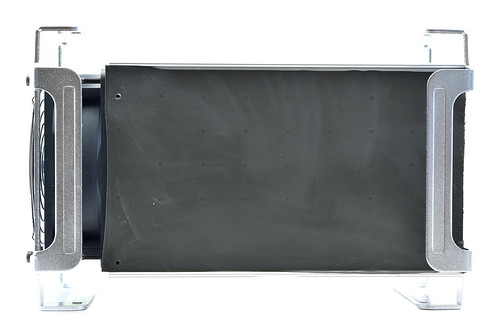

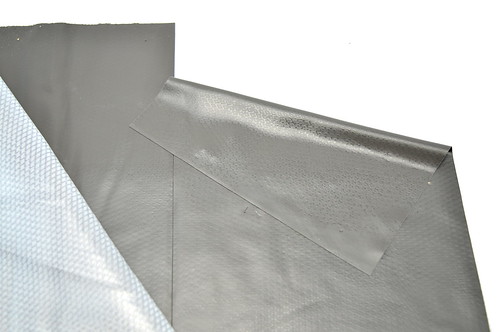

Locate the sheet of thermal compound and peel off a strip. It isn't sticky but it is statically charged and will cling to anything and everything it touches
(including dust and dirt). Try and place it as straight as possible the first time, preferably on the top horizontal surface of the Tube. You can place it a few
times, and keep picking it to straighten it and to remove bubbles. Once you're happy with the placement, massage any pockets of air to the outer edges. Peel
back one corner and visually locate one of the screw holes before replacing the the thermal compound and flattening it again. Carefully puncture the compound
with a screwdriver - this is to help you line up the board in the next step.





Step 6

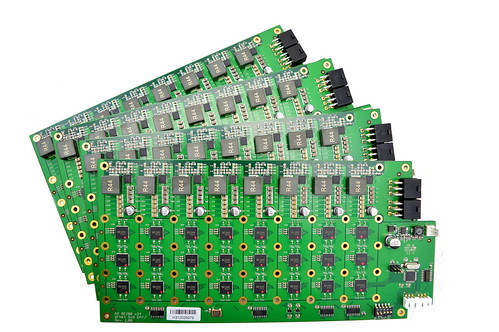

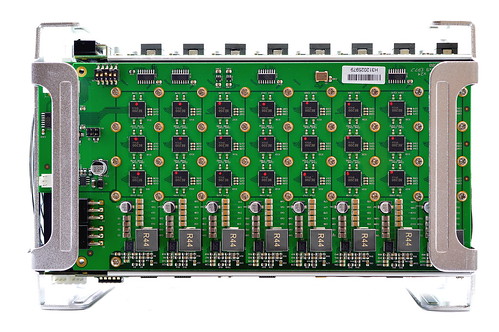

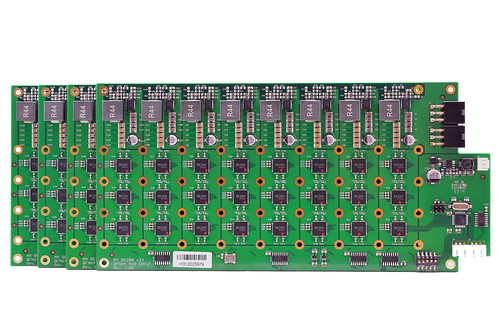

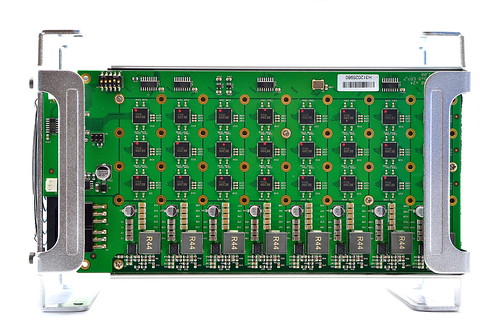

Locate a hashing board. Carefully slide it under the handles into place - connectors facing the fan. If it appears too long immediately STOP and do not force it
into place. Check that you have correctly placed the plastic washers between stand and fan or fan and heatsink. Screw in 3 or four of the corner screws to line
up the board, using the aligning holes you made in the step before if required. Locate the bag of M3*6 screws and screw in all the screw holes in the board
starting from the centre in a spiral. This action pattern helps remove any air trapped between the board and thermal compound. For speed I would recommend
adding all the screws to the hole first, before tightening them.



Step 7
Check and then double check all screws have screws in them and have been tightened. Every screw is required to prevent local overheating. Repeat steps
five and six for all 4 hashing boards, rotating the Tube each time so you are always working on the top horizontal surface for ease.



Step 8

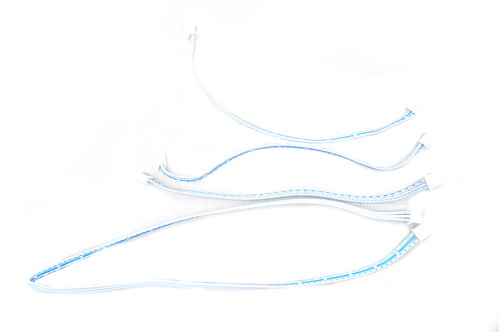

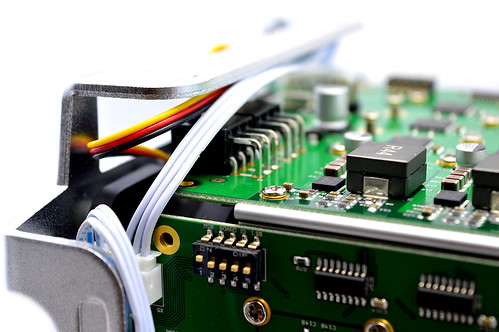

Locate the four data cables. Using the three shorter cables and starting at any board (board A), wire it to the next board (board B). Wire board B to the next
board (board C), and wire board C to the next board (board D). From either board A or D, wire the long cable to the controller's port closest to the ethernet port

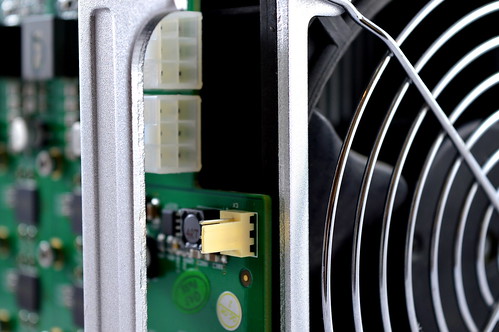

(labelled UART1). Plug the fan into any of the hashing boards.




Step 9
Flip the Tube over and check that all screws are present and screwed in. Make sure that the 5 bit switch on each mining board sharing a controller is unique.




2) Powering (top)
Tubes do not come with a power supply, and you will need a typical computer PSU with 8xPCI-E 6 pin power connectors. Strictly only 4 PCI-E connectors are
required at stock speeds, however it will reduce cable temperatures by utilising all 8. I would strongly recommend the PSU above as it has 8 PCI-E cables and
thick 16 AWG wiring. While you can power the same miner with multiple power supplies, under no circumstances should you attempt power the same mining
board with different power supplies.

We also need to tell the PSU to always be on, as there isn't a motherboard to do this. Cut a paper clip into a U and insert it into the green wire and either black
wire to the side of the green wire. Tape it up for safety. The power supply will now be controlled by its switch on the rear socket.

The controller board also requires a 12V 2.5mm barrel connector, 1A minimum.




3) Cooling (top)

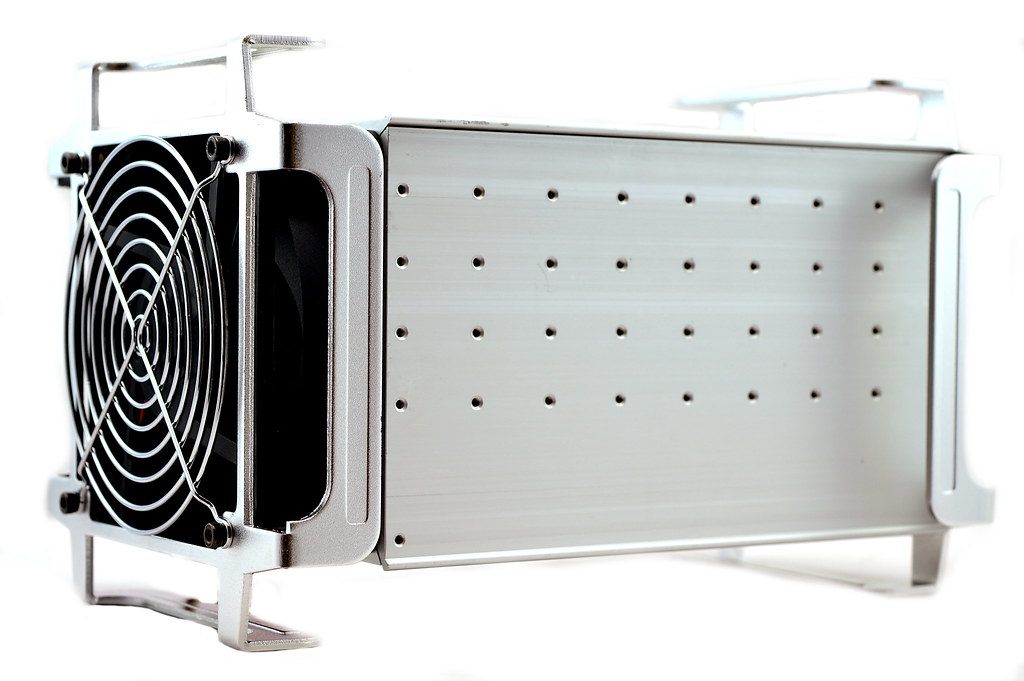

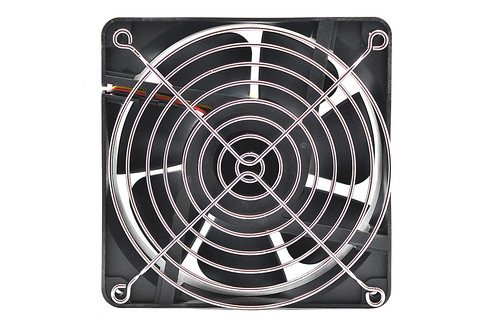

A single, high static pressure 120mm fan is used to cool the central aluminium core. Noise levels are reasonable considering the 900W of heat being removed
with a single fan. If construction instructions were following correctly, the fan should be in a pull arrangement. It is noteworthy that the end closest to the fan
may become very hot to the touch extremely hot to the touch (including the handles) during operation, so please be careful during handling and maintenance.






4) Case (top)
The central aluminium heatsink provides the core of the frame and structure of the miner, and is supplemented by radial feet at either end. Both are
constructed of low weight aluminium, giving an overall miner weight of just 6KG for a near 1TH unit. Tubes are stackable both side to side and top to
bottom. The addition of a rubber strip between miners would be beneficial to reduce vibration.




5a) Configuration (top)
An external 32bit PIC board is used as the controller, and can handle 8 daisy chained Tubes.

Wiring:

• Plug in an ethernet cable from the controller board to you router.

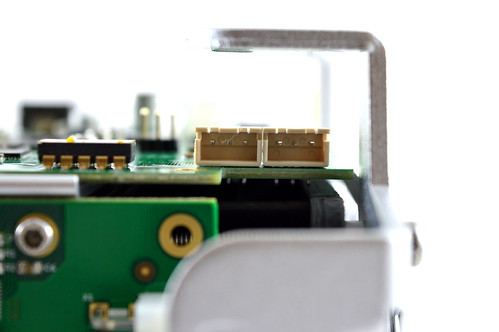

• Plug in the three wired long cable from the miner to the white socket on the controller board closest to the ethernet port.

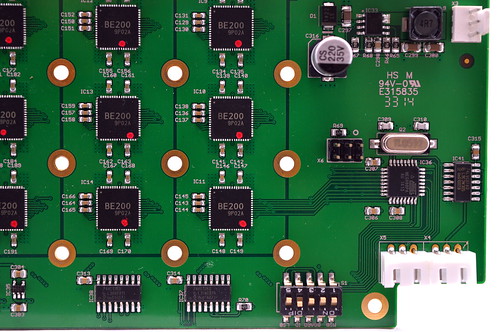

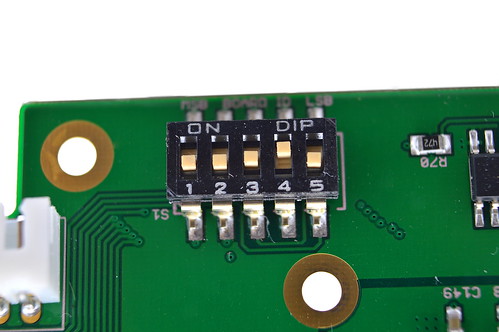

• Make sure each mining board sharing a controller has a unique 5 bit switch code. See the troubleshooting section for all the codes.

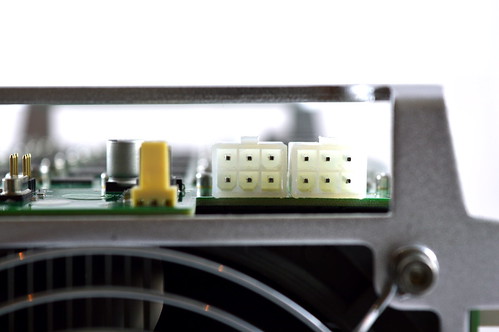

• Plug in all eight PCI-E connectors into the Tube.
• Plug in the 12V barrel connector into the controller board.

Configuration:

• Power on the power supply using its switch at the back.
• Make sure or your router's subnet is 0, ie 192.168.0.x. If not then change it to 0, this is just temporary. ***If this is not possible, see below***

• Using a browser, navigate to 192.168.0.254:8000 - this goes to the Tube's configuration page.
• Navigate to Settings.
• Change IP to something memorable, and on your preferred subnet.
• Change gateway to the IP of your router.
• Change primary DNS to the IP of your router.
• Change secondary DNS to "8.8.8.8".
• Enter Pool URL in the format as below. Please see below notes on pool selection.
• Enter the port of your pool.
• Enter your miner username and password.
• Set ASIC clock at 270 for stock speeds and 300 for overclocked speeds.
• Click update and restart.
• Navigate back to the IP of the miner you set to check mining started.
• You can then change your router subnet back to whatever you are used to using.

Alternative Subnet Change:

• Unplug your computer from all internet sources.
• Plug in an ethernet cable from the controller to your computer.
• Navigate to Control Panel -> Network and Sharing Centre -> Change Adapter Settings.
• Right click on your ethernet adapter -> Properties.
• Click on "Internet Protocol Version 4" and click properties.
• Select "Use the following IP address" and enter the following:
• IP Address: 192.168.0.1, Subnet Mask: 255.255.255.0, Default Gateway: 192.168.0.254.
• Plug in an ethernet cable from the controller to you router.
• Restart the configuration instructions as above.

***Only the below pools work directly with Tubes due to a current error in the firmware. Other pools will require the use of a proxy (see next section).***

GHash IO ^Register!

Code:

Servers : us1.ghash.io   with port 3333
User    : username.worker  - auto creates workers!
Password: anypassword

Slush ^Register!

Code:

Servers : stratum.bitcoin.cz   with port 3333
User    : username.worker
Password: password

BTCGuild ^Register!

Code:

Servers : stratum-lb-usa48.btcguild.com   with port 3333
User    : username_worker
Password: anypassword

Bitcoin Digger ^Register!

Code:

Servers : geo.bitcoindigger.com   with port 3333
User    : username.worker  - auto creates workers!
Password: anypassword

5b) Configuration - Using Proxy (Optional) (top)
To use pools outside of the above list, a proxy must be used. These instructions are for BFGMiner on Windows, but the same can be replicated on a Pi or Linux.

Using BFGMiner:

• Download BFGMiner. Extract it to "C:\Program Files (x86)".
• On the computer the proxy is running on, open a command prompt window (run/search and type cmd).
• Enter "ipconfig /all". Scroll down to your computer to find its IP address.
• Using a browser, navigate to the Tube's configuration page.
• Enter the computer's IP address into the "Pool URL" field. Enter "3333" into the "Pool Port" field.
• Username and password fields do not matter (enter x in both). Click Update/Restart.
• Create a .bat file in notepad (by saving it as .bat) and save it on your desktop. Put the following text inside, changing the pool url and miner login as desired.

Optional:

• If you want the proxy to start in the background when you turn your computer on, navigate to Control Panel -> Administrative Tools -> Task Scheduler.
• From the right hand list, select "Create Basic Task". Name it "Start Proxy" and click "Next". Select the trigger "When the computer starts" and click "Next".
• Select "Start a Program" and click "Next". Browse to your desktop and select the .bat we created. Click "Next", select the tick box and click "Finish".

• Select "Run whether user is logged on or not" and tick the check box "Run with highest privileges". Click "Okay".

Antpool

Code:

cd C:\Program Files (x86)\bfgminer-4.7.0-win64
bfgminer -o stratum.antpool.com:3333 -u username_worker -p anypassword --stratum-port 3333 --set-device PXY:diff=512

BTCGuild

Code:

cd C:\Program Files (x86)\bfgminer-4.7.0-win64
bfgminer -o stratum.btcguild.com:3333 -u username_worker -p anypassword --stratum-port 3333 --set-device PXY:diff=512

GHash IO

Code:

cd C:\Program Files (x86)\bfgminer-4.7.0-win64
bfgminer -o us1.ghash.io:3333 -u username_worker -p anypassword --stratum-port 3333 --set-device PXY:diff=512

6) Troubleshooting (top)

Problem	Solution
How.do.I.set.up.more.than.one.miner.on.one.controller?	- There is a 5 bit switch on each hashing board which must be configured to be unique in order for the controller to detect it. Set the first miner's boards as "MINER1" in the below diagram, the second's as "MINER2" etc. The long cable from one unit should be plugged into the empty connection on the other to daisy chain the connections on the other.
How do I reset settings to default?	- Hold and press the black push button on the controller board.
My.power.supply's.cables.are.braided.or.aren't.color.coded	- See below diagram for pin-outs.






Legal disclaimer: This information is for general guidance and does not constitute expert advice. We are not responsible if you, your property or a third
party is injured or damaged as a result of any interaction with this information, and no warranty is provided. All text and images are covered by copyright.

7) Where to buy (top)




[dogie]

Reserved

[dogie]

Reserved

[dogie]

Reserved

[Beastlymac]

Great guide Dogie the pictures are amazing as always. Will you provide information on over clocking I see you have said it will achieve 920gh/s over clocked how stable is that?

[TheJuice]

Thanks dogie.

A few questuons:

1) I have my fan pushing air through. Should I deassemble?
2) The fan is loud for anyplace people will be. Have you tried a 2 fan method?
3) What do the settings reclock etc do?
4) any method for temp sensing?

Thx

[sidehack]

A few notes - I've assembled over 30 of these things, and the easiest process I found was to lay out the heatsinks, stick on the thermal pads, stick on the PCBs, then assemble into the housing. This kept all screws (there are 164 total, not 168) visible at each step as you don't have to fight with the endcaps to access some of the board screws.

Additionally, mmpool.org was tested functional with Tubes.

Unless there's something I've overlooked in the last week of jacking with the software on these, Tubes do not speak Getwork so using slush's standard proxy will not work with port 8332. Additionally using slush as a stratum forwarder will not work because of the extranonce2 length issue. I have just tested this with the version you linked to and found it to still be the case. www.gekkoscience.com/misc/mining_proxy.py should work on linux and incorporates the code required to fix that problem with slush-based pools (I've been using it on ozcoin successfully for a week). Additionally https://bitbucket.org/ckolivas/ckpool run in proxy mode (ckpool -p) has the same fixes.

[dogie]

Thanks dogie.

A few questuons:

1) I have my fan pushing air through. Should I deassemble?
2) The fan is loud for anyplace people will be. Have you tried a 2 fan method?
3) What do the settings reclock etc do?
4) any method for temp sensing?

Thx

1) Pushing is suboptimal but still fine, its what some of the OEMs like HashRatio use to work with their hot/cold isle arrangement.
2) I thought about publishing with 2 fan straight away, but its going to be cost inefficient and over silly things. You're going to need to get hold of a second set of those longer screws and potentially another set of washers to get the right length of screws. AND, potentially a cable extender if the cable doesnt come with 20cm as standard.
3) Reclock activates the on the fly overclock/underclock.
4) No, but BE200 isn't temperature sensitive unless something is very wrong.

[philipma1957]

Thanks Dogie.


To those doing a 2 miner daisychain those dip switch settings are very important> I could not get all 8 blades to hash until I copied dogies pin out settings.  Notice all boards count in order 1 to 8. If you daisy-chain and set the boards wrong the controller does not pick all of them up.

[dogie]

A few notes - I've assembled over 30 of these things, and the easiest process I found was to lay out the heatsinks, stick on the thermal pads, stick on the PCBs, then assemble into the housing. This kept all screws (there are 164 total, not 168) visible at each step as you don't have to fight with the endcaps to access some of the board screws.

Additionally, mmpool.org was tested functional with Tubes.

Unless there's something I've overlooked in the last week of jacking with the software on these, Tubes do not speak Getwork so using slush's standard proxy will not work with port 8332. Additionally using slush as a stratum forwarder will not work because of the extranonce2 length issue. I have just tested this with the version you linked to and found it to still be the case. www.gekkoscience.com/misc/mining_proxy.py should work on linux and incorporates the code required to fix that problem with slush-based pools (I've been using it on ozcoin successfully for a week). Additionally https://bitbucket.org/ckolivas/ckpool run in proxy mode (ckpool -p) has the same fixes.

Yeah 164. I agree with you, but it also increases the potential for damage and its not significantly easier [I've used both methods multiple times]. The endcaps aren't a problem with a thin screwdriver.

mmpool is too small for me to list.

I was told Slush's original had the en2 fixes included and it was built for windows. Neither ckpool or gekko run on windows which is the problem. I'll have to remove Slush for now then.

[philipma1957]

Pulled link as requested. I was wondering do you know if  FC plans to update the controller's software. To have an auto pool switch option like the antminer s-3's have?

[dogie]

Pulled link as requested. I was wondering do you know if  FC plans to update the controller's software. To have an auto pool switch option like the antminer s-3's have?

You can do it manually via BFG proxy if its critical for now

[daddyfatsax]

Pulled link as requested. I was wondering do you know if  FC plans to update the controller's software. To have an auto pool switch option like the antminer s-3's have?

You can do it manually via BFG proxy if its critical for now

The BFG proxy starts showing "error from bufferevent" and crashes the controller.

[bbxx]

great guide, dogie

have you encountered problems with controller saving settings?
i can save only when hashing cable is disconnected or miners are off. (i got 5 chained)

have you noticed randomly chips going off after longer operation?
soft controller rebot wake them up.

i got 39/40 thermal pads, is it normal or am i unlucky ?

can you measure hashing speed, power consumption and temperature at diffrent frequencies?

any hints on undervoltage those boards? in few months/weeks they will mine less then power bill.

[sidehack]

I'll talk to Novak about getting a Windows build of our slush fork up sometime. Right now he's a bit busy figuring out the UART protocol to see what we can do about making a better controller.

I guess I don't see the potential for damage, so long as your fingers were not buttered beforehand. Additionally if you don't need a thin screwdriver and careful finagling, the entire thing can be done with a power driver and #2 philips bit. I was using a Porter Cable 18V screwgun to assemble all 31 tubes, had zero issues.

can you measure hashing speed, power consumption and temperature at diffrent frequencies?

Here's the numbers I got, off one of our D750 PSU kits. No temperature data.

MHz   GH   IAC   VAC   WAC   W/GH
270   829   4.4   212   933   1.13
260   799   4.25   212   901   1.13
250   768   4.1   213   873   1.14
240   737   3.9   213   831   1.13
230   707   3.8   213   809   1.14
220   676   3.6   213   767   1.13
210   645   3.5   213   746   1.16
200   614   3.3   213   703   1.14

https://bitcointalk.org/index.php?topic=735982.msg8544454#msg8544454

Once Novak's done playing with my test Tube for controller stuff I'll probably look at hacking the VRMs for undervolting and get some performance data.

[bbxx]

at leadtek platinium 1150 i got
229W at one board with fan
so D750 is not so efficient

[sidehack]

As the 750W PSU was at 110-115% load and well WELL past its peak efficiency, also being used hardware with unknown life already, comparing a different load on a probably relatively new platinum-rated PSU at 20% rated output is sorta irrelevant. If you quadruple your load and subtract an erroneous 20W from fans, you're still about 900W and only 80% load so closer to peak efficiency point. Hook up about six boards to your PSU and see what the efficiency looks like, that'll be a comparable measurement.

Additionally my current meter only had one decimal of precision, so if you care about sigfigs the numbers aren't that reliable, could be high or low (which is mentioned in the linked post). In any case, D750 is definitely not a recommended option for these Tubes as they draw well over the rated load and reliability at such loads is questionable at best. The numbers given are for reference and estimation only.

[bbxx]

i will post some results later

i had few toys to play

deus 650, 600
xfx 850+br,550+br,550TS  (all seasonic, branded by xfx)
dell900W
leadtek 1150plat
lketc 1TH 1200W dragon psu (forgot name)

they are consuming around 1,05-1,15j/GH

will mod cooling too (got various fans)

thanks for your feedback

PS. I am waiting for pencil/cap mod (voltage play) tutorial

[dogie]

Pulled link as requested. I was wondering do you know if  FC plans to update the controller's software. To have an auto pool switch option like the antminer s-3's have?

You can do it manually via BFG proxy if its critical for now

The BFG proxy starts showing "error from bufferevent" and crashes the controller.

Known bug, only solution is to hard reset BFGMiner and the controller for now.

[dogie]

great guide, dogie

have you encountered problems with controller saving settings?
i can save only when hashing cable is disconnected or miners are off. (i got 5 chained)

have you noticed randomly chips going off after longer operation?
soft controller rebot wake them up.

i got 39/40 thermal pads, is it normal or am i unlucky ?

can you measure hashing speed, power consumption and temperature at diffrent frequencies?

any hints on undervoltage those boards? in few months/weeks they will mine less then power bill.

I've not seen that before. By miners do you mean mining boards or Tubes (ie 5x4 mining boards?).

Chips shouldn't be dropping out, they should either be there or not. What PSU are you running? Are you absolutely sure all the screws are in good and tight?

270 and 300 results are in the OP, measured pre PSU. Its not really worth doing anything more detailed because the units are quite variable outside stock speed, whether you use 4 or 8 PCI-E, 16 or 18AWG, 20C or 40C ambients etc. The results just end up as a giant band of 'its somewhere in here' which isn't very useful. We don't know any meaningful temperatures because there are no on die (or other) probes on BE200s for cost. They're not temperature sensitive anyway, as you can see by the lack of top side heatsinks. Edit: Its worth mentioning I have these PCBs from 4 different OEMs and they all perform rather differently.

I'm sure someone will work out a pencil mod when we need it, we have all the schematics.
